HEIDENHAIN iTNC 530 69

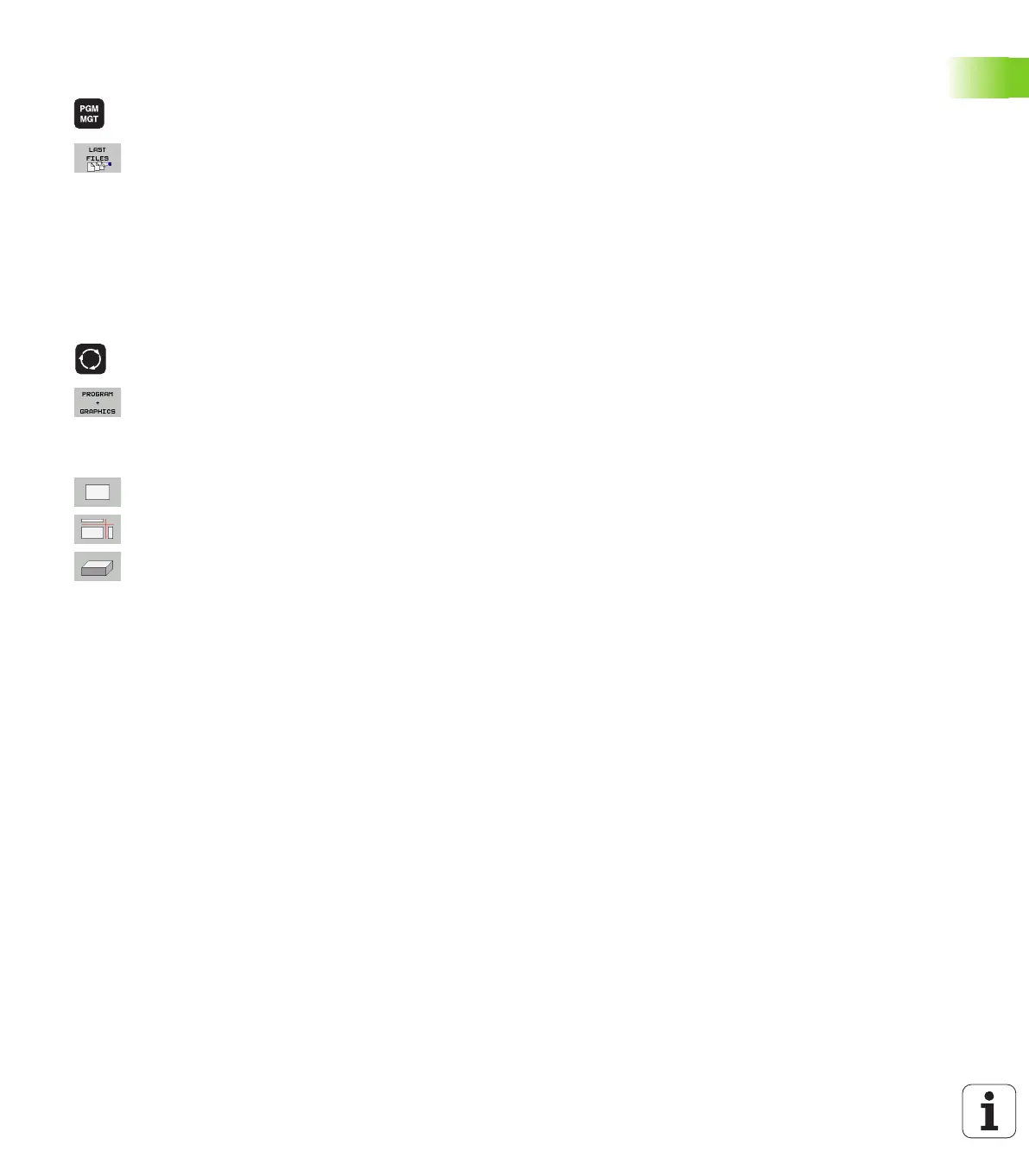

1.4 Graphically testing the first part
Choosing the program you want to test
 Press the PGM MGT key: The TNC opens the file
manager
 Press the LAST FILES soft key: The TNC opens a pop-
up window with the most recently selected files
 Use the arrow keys to select the program that you
want to test. Load with the ENT key
Further information on this topic
 Selecting a program: See "Working with the file manager", page 124
Selecting the screen layout and the view
 Press the key for selecting the screen layout. The TNC
shows all available alternatives in the soft-key row
 Press the PROGRAM + GRAPHICS soft key: In the
left half of the screen the TNC shows the program; in
the right half it shows the workpiece blank
 Select the desired view via soft key
 Plan view
 Projection in three planes
 3-D view
Further information on this topic
 Graphic functions: See "Graphics", page 630
 Running a test run: See "Test Run", page 641
