512 Programming: Execution of CAM Programs, Multi-axis Machining

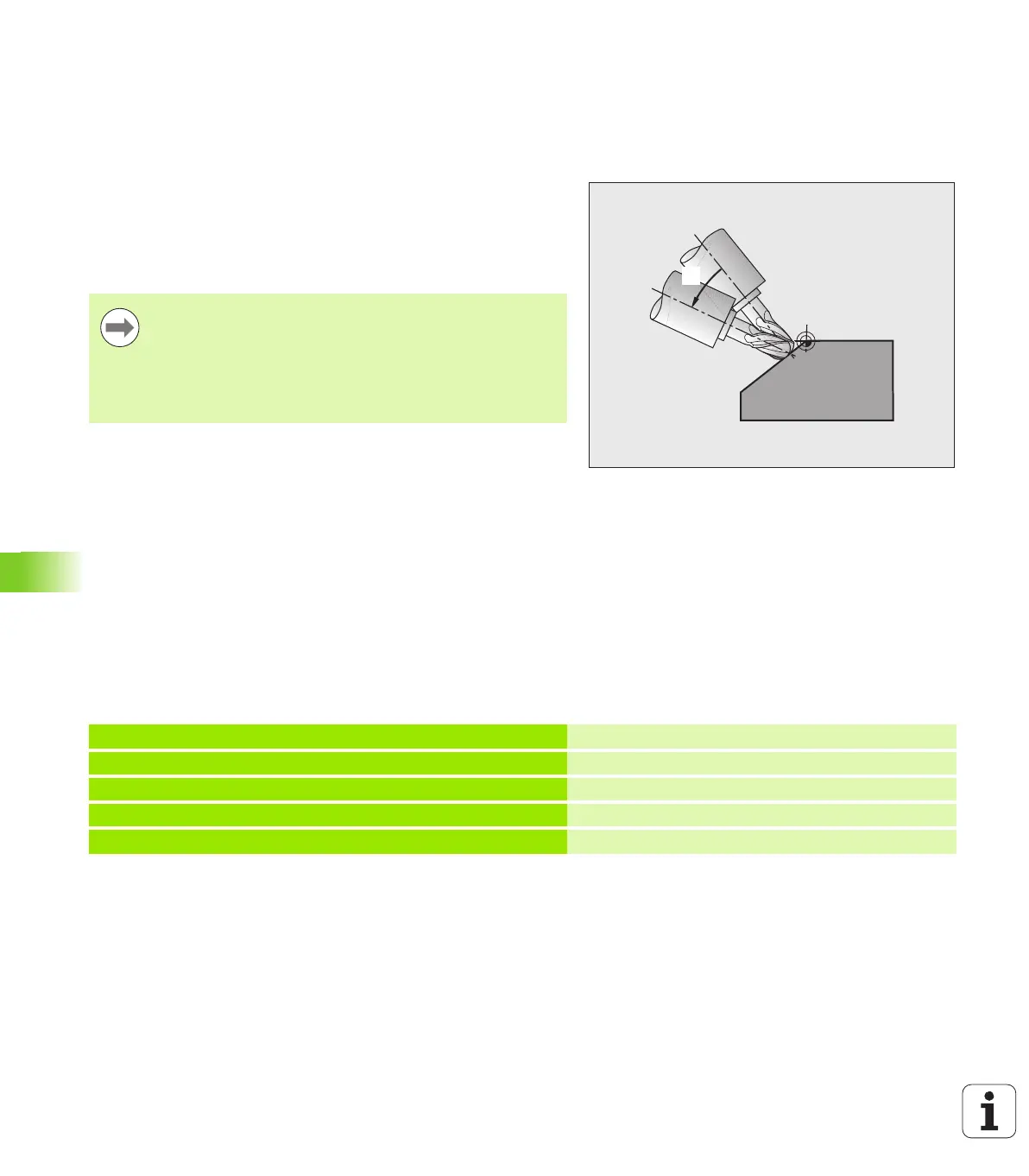

12.4 Inclined-tool machining in the tilted plane
12.4 Inclined-tool machining in the
tilted plane
Function
In combination with M128 and the new PLANE functions, inclined
machining in a tilted machining plane is now possible. Two
possibilities are available for definition:
Inclined-tool machining via incremental traverse of a rotary axis
Inclined-tool machining via normal vectors
Inclined-tool machining via incremental traverse
of a rotary axis
Retract the tool
Define any PLANE function; consider the positioning behavior
Via a straight-line block, traverse to the desired incline angle in the
appropriate axis incrementally
Activate M128
Example NC blocks:
Inclined-tool machining in a tilted machining plane only
functions with spherical cutters.
With 45° swivel heads and tilting tables you can also
define the incline angle as a space angle. Use the TCPM
FUNCTION (see "TCPM FUNCTION (software option 2)" on
page 514).
...
12 L Z+50 R0 FMAX
Position at clearance height
13 PLANE SPATIAL SPA+0 SPB-45 SPC+0 MOVE DIST50 F1000
Define and activate the PLANE function
14 L IB-17 F1000 M128
Set the incline angle and activate M128
...
Define machining in the tilted working plane
