HEIDENHAIN iTNC 530 511
12.3 The PLANE function: Tilting the working plane (software option 1)
Selecting the type of transformation (entry optional)
On machines with C-rotary tables, a function is available for specifying
the type of transformation:

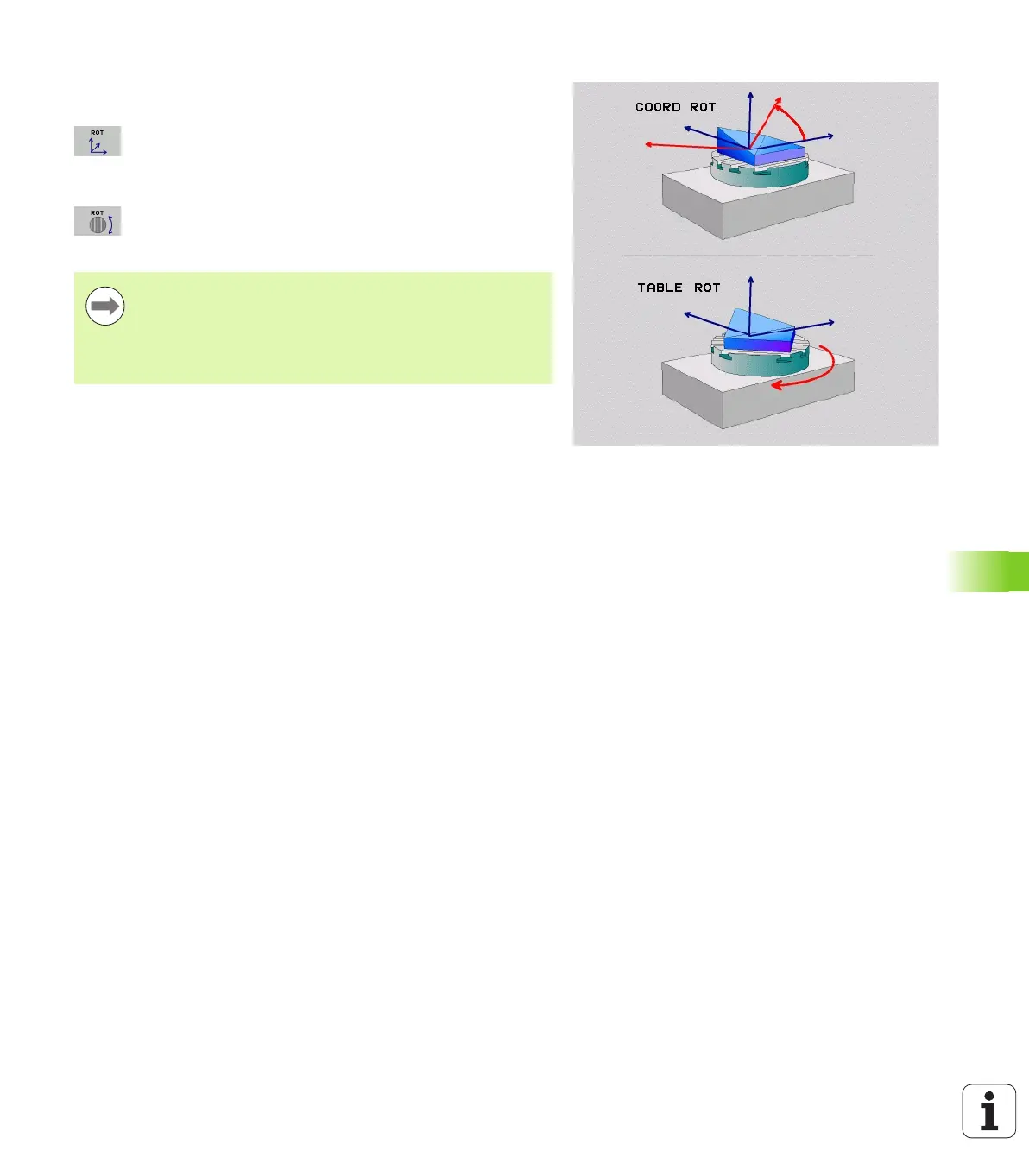

 COORD ROT specifies that the PLANE function should
only rotate the coordinate system to the defined
tilting angle. The rotary table is not moved; the
compensation is purely mathematical.
 TABLE ROT specifies that the PLANE function should
position the rotary table to the defined tilting angle.
Compensation results from rotating the workpiece.
When the PLANE AXIS function is used, COORD ROT and
TABLE ROT are nonfunctional.
If you use the TABLE ROT function in conjunction with a
basic rotation and a tilting angle of 0, then the TNC tilts the
table to the angle defined in the basic rotation.

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
