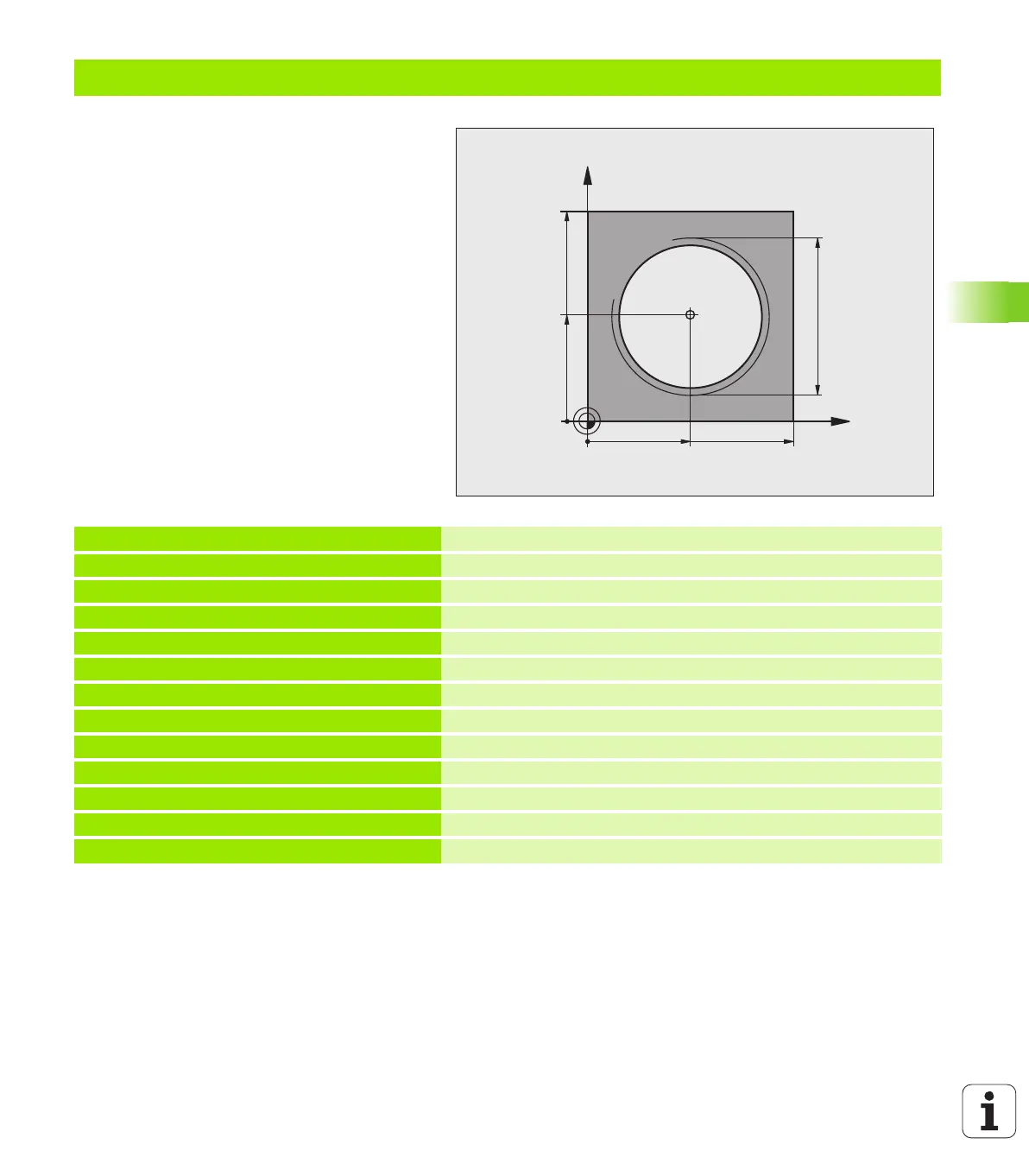

6.5 Path contours—Polar coordinates
Example: Helix
0 BEGIN PGM HELIX MM
1 BLK FORM 0.1 Z X+0 Y+0 Z-20 Definition of workpiece blank
2 BLK FORM 0.2 X+100 Y+100 Z+0
3 TOOL CALL 1 Z S1400 Tool call
4 L Z+250 R0 FMAX Retract the tool
5 L X+50 Y+50 R0 FMAX Pre-positioning the tool
6CC Transfer the last programmed position as the pole
7 L Z-12.75 R0 F1000 M3 Move to working depth
8 APPR PCT PR+32 PA-182 CCA180 R+2 RL F100 Approach the contour on a circular arc with tangential connection
9 CP IPA+3240 IZ+13.5 DR+ F200 Helical traverse
10 DEP CT CCA180 R+2 Depart the contour on a circular arc with tangential connection
11 L Z+250 R0 FMAX M2 Retract the tool, end program
12 END PGM HELIX MM
X
Y
50
50
CC
100
100
M64 x 1,5

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
