502 Programming: Execution of CAM Programs, Multi-axis Machining
12.3 The PLANE function: Tilting the working plane (software option 1)
Input parameters

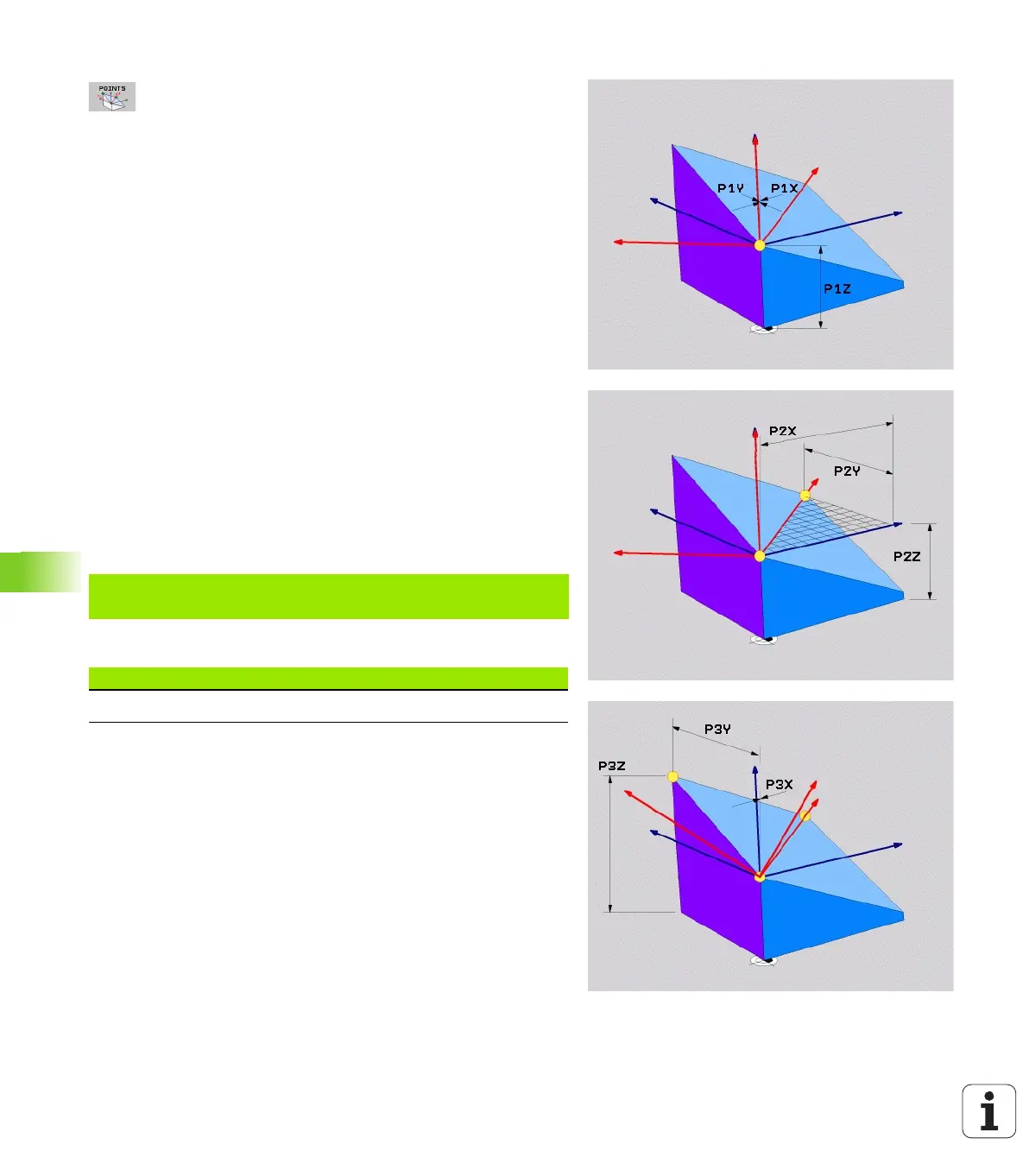

X coordinate of 1st plane point?: X coordinate P1X
of the 1st plane point (see figure at top right)
Y coordinate of 1st plane point?: Y coordinate P1Y
of the 1st plane point (see figure at top right)
Z coordinate of 1st plane point?: Z coordinate P1Z
of the 1st plane point (see figure at top right)
X coordinate of 2nd plane point?: X coordinate P2X
of the 2nd plane point (see figure at center right)
Y coordinate of 2nd plane point?: Y coordinate P2Y
of the 2nd plane point (see figure at center right)
Z coordinate of 2nd plane point?: Z coordinate P2Z
of the 2nd plane point (see figure at center right)
X coordinate of 3rd plane point?: X coordinate P3X
of the 3rd plane point (see figure at bottom right)
Y coordinate of 3rd plane point?: Y coordinate P3Y
of the 3rd plane point (see figure at bottom right)
Z coordinate of 3rd plane point?: Z coordinate P3Z
of the 3rd plane point (see figure at bottom right)
Continue with the positioning properties (see
"Specifying the positioning behavior of the PLANE
function" on page 506)
NC block
Abbreviations used
5 PLANE POINTS P1X+0 P1Y+0 P1Z+20 P2X+30 P2Y+31 P2Z+20
P3X+0 P3Y+41 P3Z+32.5 .....
Abbreviation Meaning
POINTS Points
