HEIDENHAIN ITNC 530 User Manual

HEIDENHAIN iTNC 530 605
14.8 Compensating workpiece misalignment with a 3-D touch probe

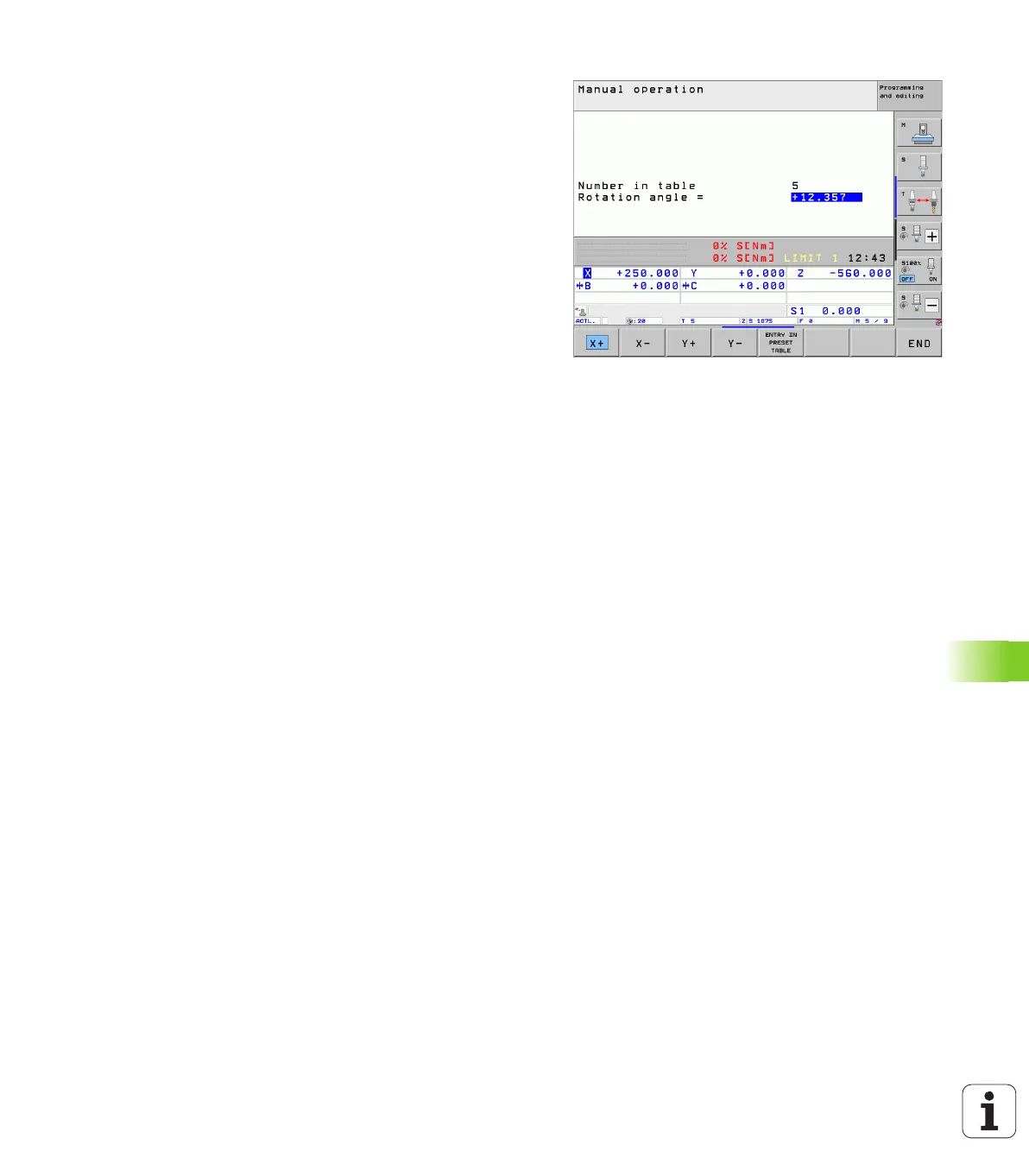

Displaying a basic rotation
The angle of the basic rotation appears after ROTATION ANGLE
whenever PROBING ROT is selected. The TNC also displays the
rotation angle in the additional status display (STATUS POS.)
In the status display a symbol is shown for a basic rotation whenever
the TNC is moving the axes according to a basic rotation.
Canceling a basic rotation
 Select the probe function by pressing the PROBING ROT soft key
 Enter a rotation angle of zero and confirm with the ENT key.
 Terminate the probe function by pressing the END key

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
