2.4 Status displays

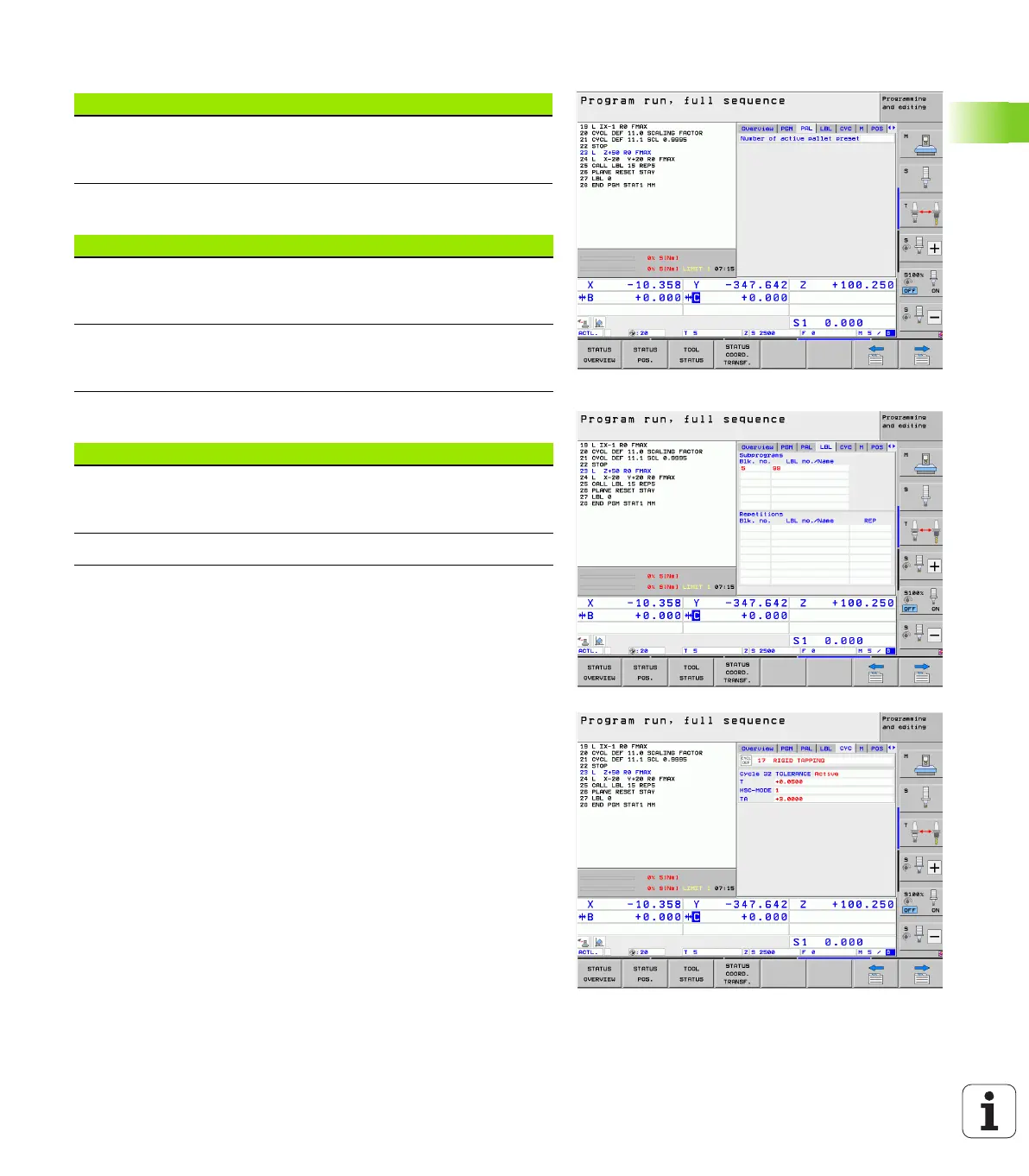

General pallet information (PAL tab)
Program section repeat/Subprograms (LBL tab)
Information on standard cycles (CYC tab)
Soft key Meaning
No direct
selection
possible
Number of the active pallet preset
Soft key Meaning
No direct
selection
possible
Active program section repeats with block
number, label number, and number of
programmed repeats/repeats yet to be run
Active subprogram numbers with block number
in which the subprogram was called and the
label number that was called
Soft key Meaning
No direct
selection
possible
Active machining cycle
Active values of Cycle 32 Tolerance

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
