2.4 Status displays

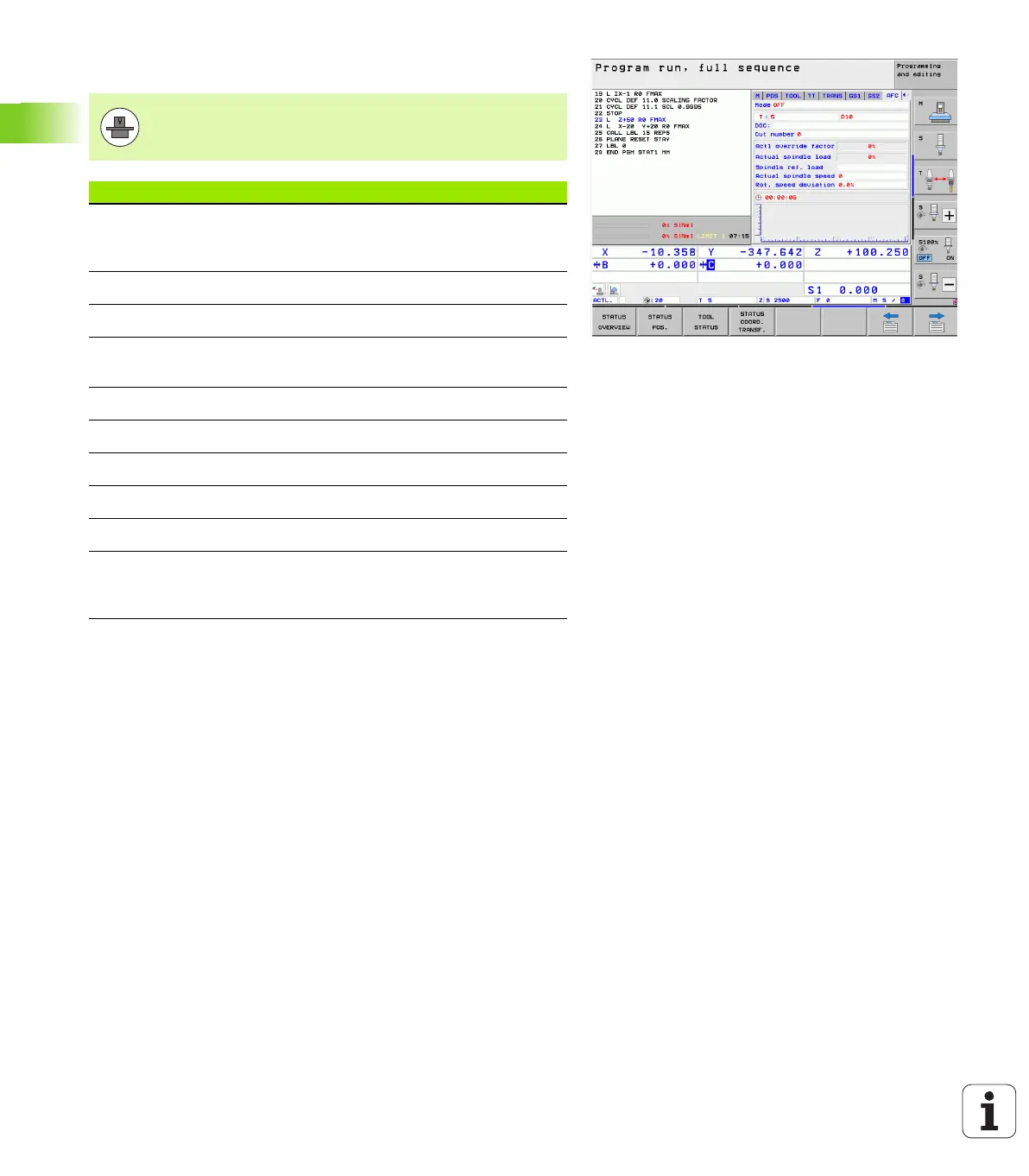

Adaptive Feed Control (AFC tab, software option)
The TNC displays the AFC tab only if the function is active
on your machine.
Soft key Meaning
No direct
selection
possible
Active mode in which adaptive feed control is
running
Active tool (number and name)
Cut number
Current factor of the feed potentiometer in
percent
Active spindle load in percent
Reference load of the spindle
Current spindle speed
Current deviation of the speed
Current machining time
Line diagram, in which the current spindle load
and the value commanded by the TNC for the
feed-rate override are shown

HEIDENHAIN ITNC 530 Specifications

General

Control Type	CNC
Look-ahead	Yes
Spindle control	Yes
Touch probe cycles	Yes
Operating voltage	24 V DC
Programming	Conversational and DIN/ISO programming
Interpolation	Linear, Circular, Helical
Data Interface	Ethernet, USB, RS-232
Memory	1 GB
Programming Language	HEIDENHAIN plain language
Operating Modes	Manual, Automatic, MDA
Software Options	Various software options available
