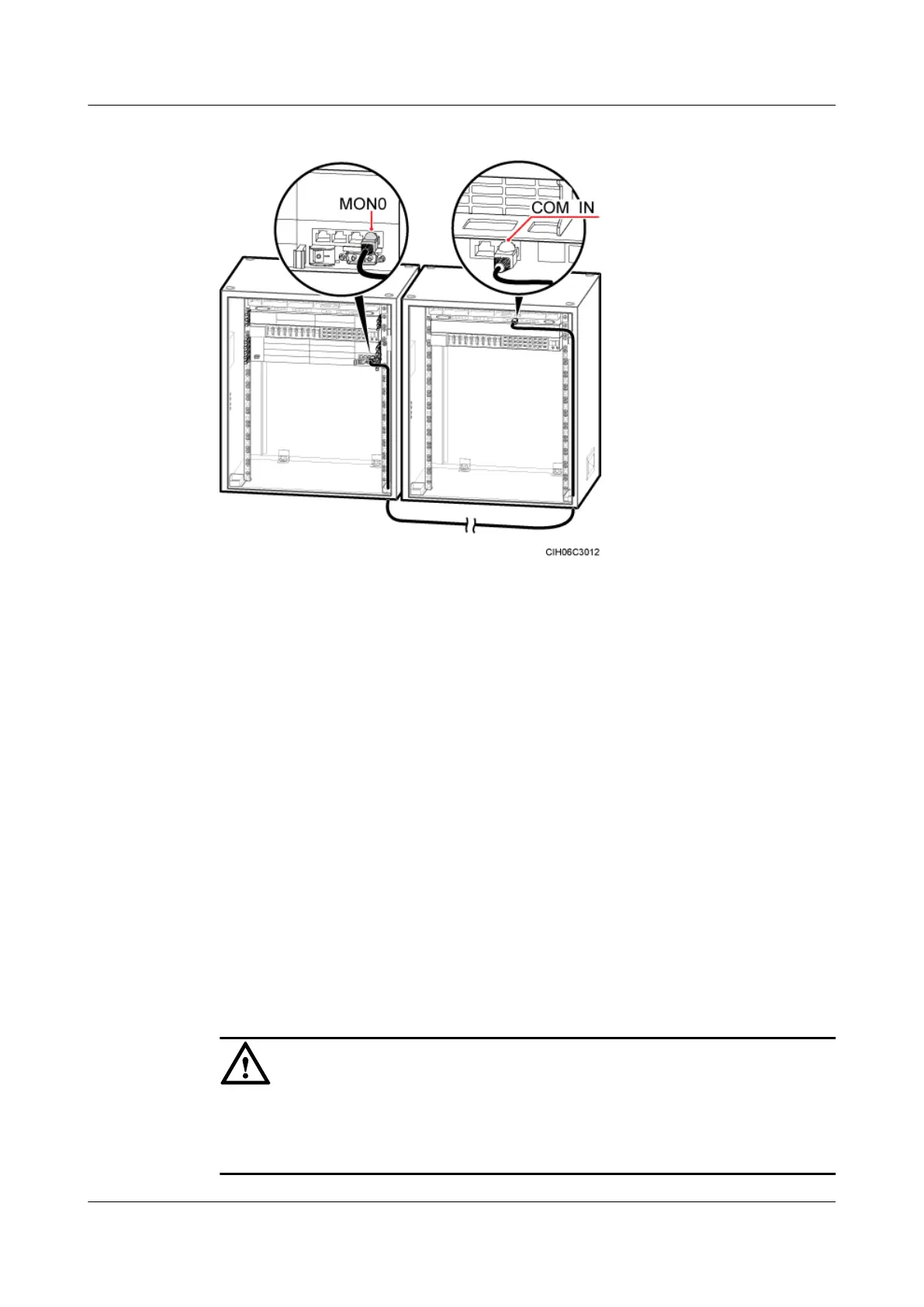

Figure 7-82 Installing monitoring signal cables in two TMC11Hs
Step 3 Route the cable by referring to 7.5.1 Cabling Requirements, and then use cable ties to bind the
cable.
Step 4 Label the installed cables. For details, see Attaching an L-Shaped Label.
Step 5 Run each cable that leaves the cabinet in the PVC corrugated pipe, and then tie the pipe to the
cable hole in the cabinet.
----End
7.5.6 Installing a CPRI Optical Cable
A CPRI optical cable transmits CPRI signals between a BBU and an RRU.
Context
l The single-mode optical module is labeled "SM" and multi-mode optical module is labeled
"MM".
l If the puller of an optical module is blue, the module is a single-mode optical module. If
the puller of an optical module is black or grey, the module is a multi-mode optical module.
l The optical module to be installed must have a matching rate with the corresponding CPRI
port.
CAUTION
The performance of an optical module that is exposed to the air for more than 20 minutes may
be abnormal. Therefore, you must insert an fiber optic cable into an unpacked optical module
within 20 minutes.
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
207
