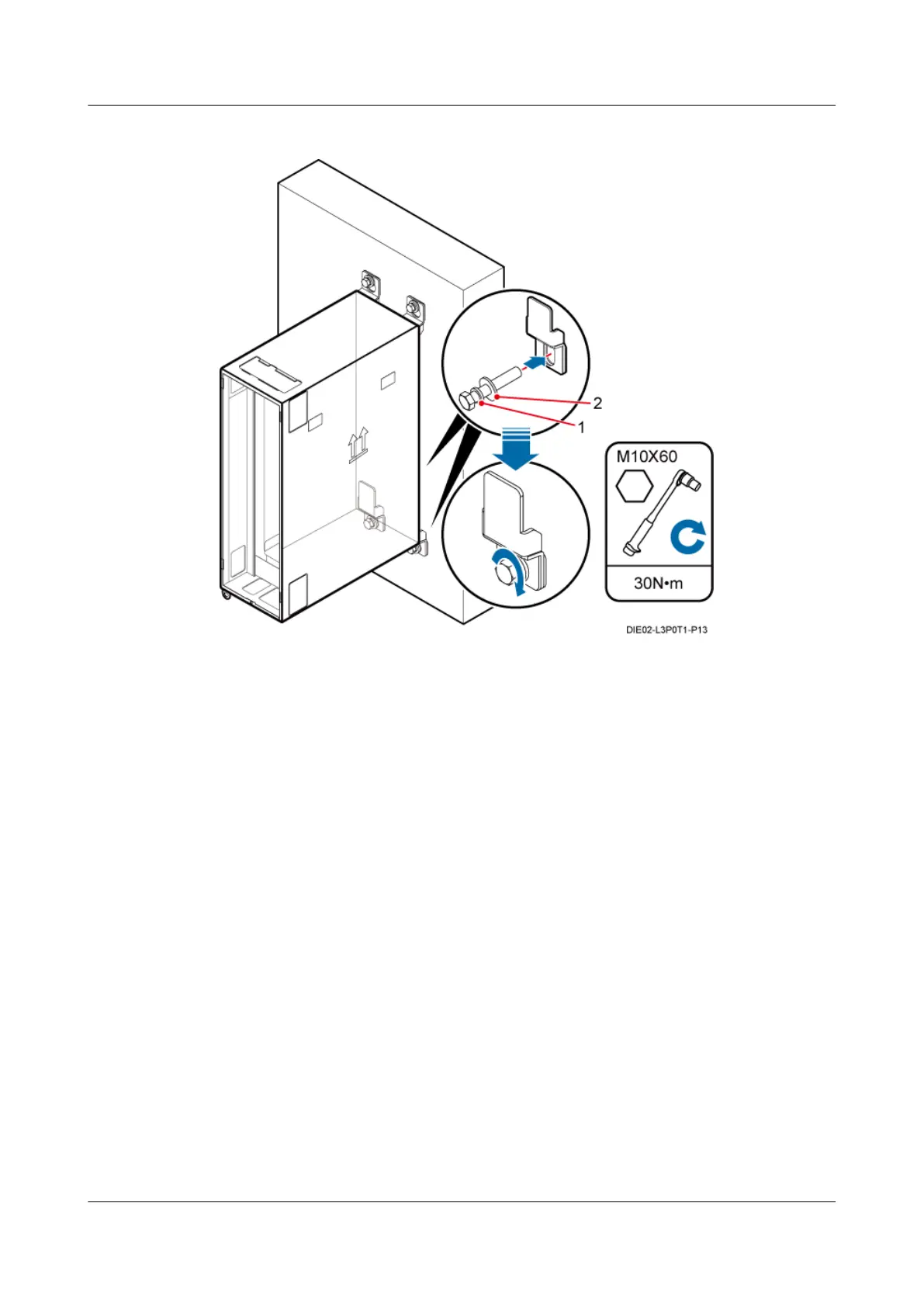

Figure 13-24 Tightening the bolts at the lower part of the IMB03
(1) Spring washer 10 (2) Flat washer 10
----End
13.3.2 Installing the IMB03 on the IFS06
This section describes the procedure for installing the IMB03 on the IFS06. One or two IMB03s
can be installed on the IFS06. When two IMB03s must be installed on the IFS06, you are advised
to install the lower IMB03 prior to the upper IMB03. The procedures for installing the two
IMB03s are the same. The following description is based on the installation procedure of the
upper IMB03 on the IFS06.
Installing the IMB03 on the IFS06 (Side-Mounted)
This section describes the installation procedure of the IMB03 side-mounted on the IFS06. The
side-mounted mode can be classified into left-side-mounted mode and right-side-mounted mode.
The installation procedure of the IMB03 left-side-mounted on the IFS06 is the same as the
procedure of the IMB03 right-side-mounted on the IFS06. The following description is based
on the IMB03 right-side-mounted on the IFS06.
Context
One or two IMB03s can be installed on the IFS06, as shown in Figure 13-25. To install the
lower IMB03, move down the lower adjusting beam to the middle position. To install the upper
IMB03, move down the upper adjusting beam to the middle position, as shown in Figure
13-27.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
451
