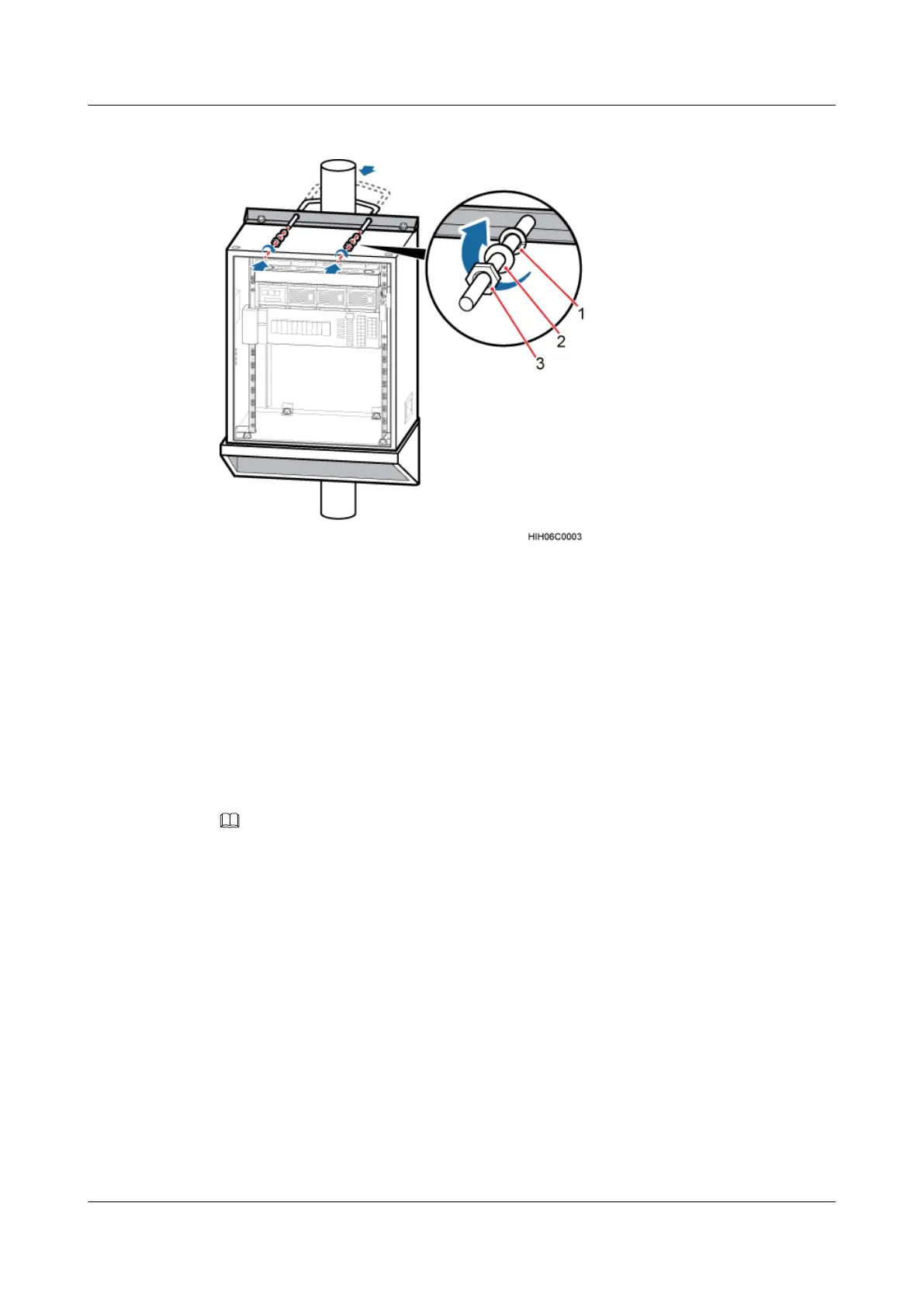

Figure 8-26 Installing a U-shaped piece
(1) Flat washer (2) Spring washer (3) Nut
----End
8.2.3 Installing a Cabinet on a Wall
This section describes the procedure and precautions to be taken for installing a cabinet on a
wall. An APM30H or TMC11H can be installed on a wall.
Context
NOTE
l The cabinet cannot be installed at a height of more than 10,000 mm.
Procedure
Step 1 Press a marking template against the wall, and then mark six mounting holes based on the
marking template, as shown in Figure 8-27.
