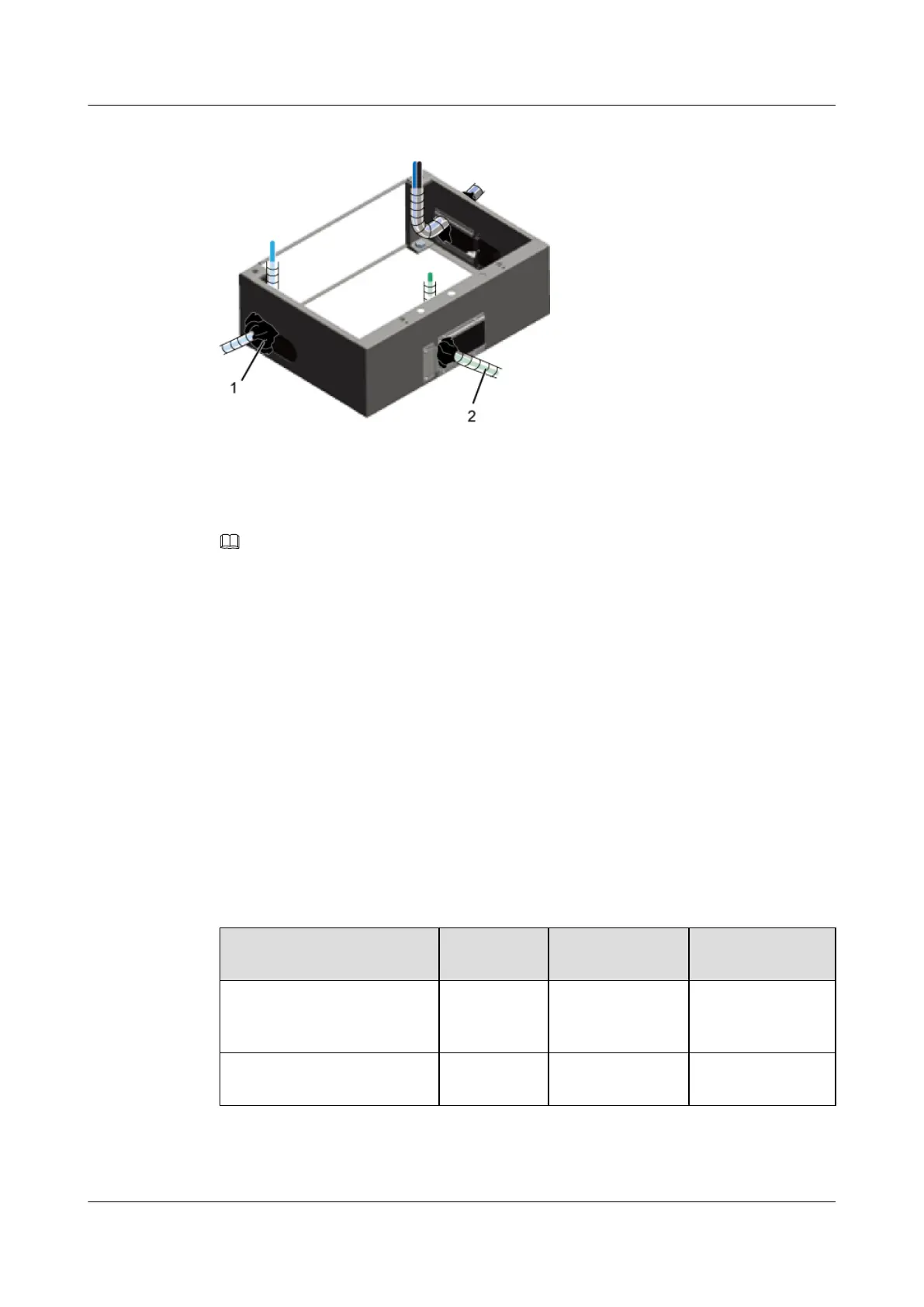

Figure 7-88 Sealing the cable holes of the base by using the fireproof clay
(1) Fireproof clay (2) PVC corrugated pipe
NOTE
Fireproof clay can be used only for sealing the cable outlet hole in the base. It cannot be used for sealing
the cable outlet hole of the cabinet.
Step 3 Tighten the screws on the front baffle plate of the base.
----End
7.8.2 Applying Touch-Up Paint
The paint on the surface is intact. If any paint is damaged, you must apply touch-up paint to
avoid erosion.
Prerequisite
Before applying touch-up paint, select the same color as the original coating, as listed in Table
7-13.
Table 7-13 Code of color samples
Object
Color Code of Huawei
Color Sample
International
Color Code
Cabinet (including the
APM30H, RFC, TMC11H,
IBBS200T, and IBBS200D)
RAL7035 YB026 RAL7035
Base 3010 Light
gray
YB030 Pontone 422U
DBS3900 (Ver.B)
Installation Guide
7 Outdoor Scenario with DC Power Supply (BBU Installed
in a TMC11H)
