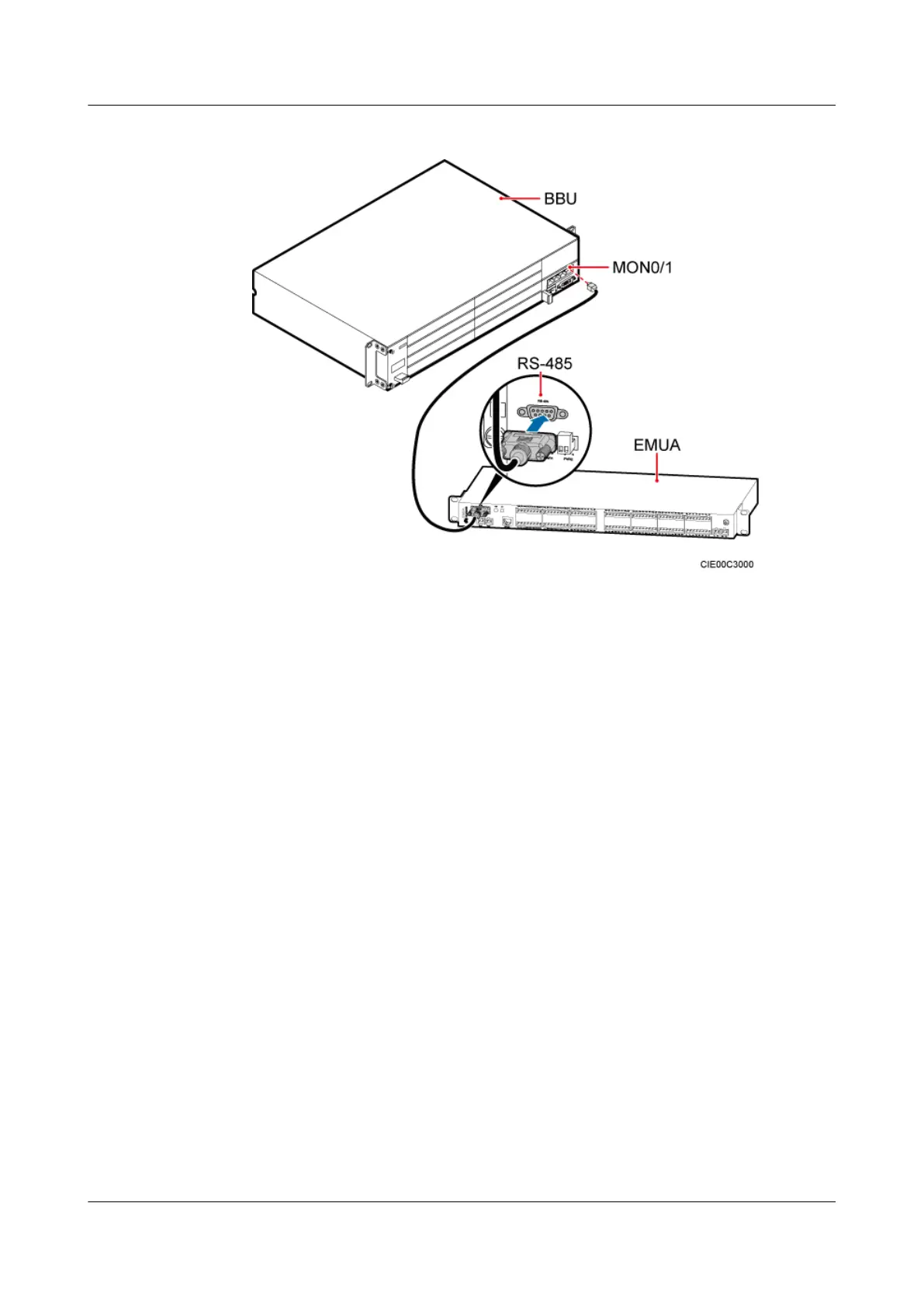

Figure 12-20 Installing a monitoring signal cable for the EMUA
Step 2 Route the cable by referring to 12.4.1 Cabling Requirements, and then use cable ties to bind
the cable.
Step 3 Label the installed cables. For details, see Attaching an L-Shaped Label.
----End
12.4.6 Installing a BBU Alarm Cable
A BBU alarm cable transmits alarm signals from external alarm equipment to a BBU.
Procedure
Step 1 Install a BBU alarm cable, as shown in Figure 12-21. For details about a BBU alarm cable, see
BBU Alarm Cable.
1. Link the RJ45 connector at one end of the BBU alarm cable to the port labeled EXT-ALM0/
EXT-ALM1 on the UPEU in the BBU.
2. Link the RJ45 connector at the other end to external alarm equipment.
