13.3.1 Installing the IMB03 on the Wall
The IMB03 can be side-mounted or back-mounted on the wall.
Installing the IMB03 on the Wall (Side-Mounted)
This section describes the installation procedure of the IMB03 side-mounted on the wall.
Context
The diameters of the holes on the mounting ears for attaching a back plate on a wall are 14 mm.
The horizontal inter-hole spacing of the two upper mounting ears is 292 mm, and the vertical
spacing between the holes of the upper and lower mounting ears is 611 mm.

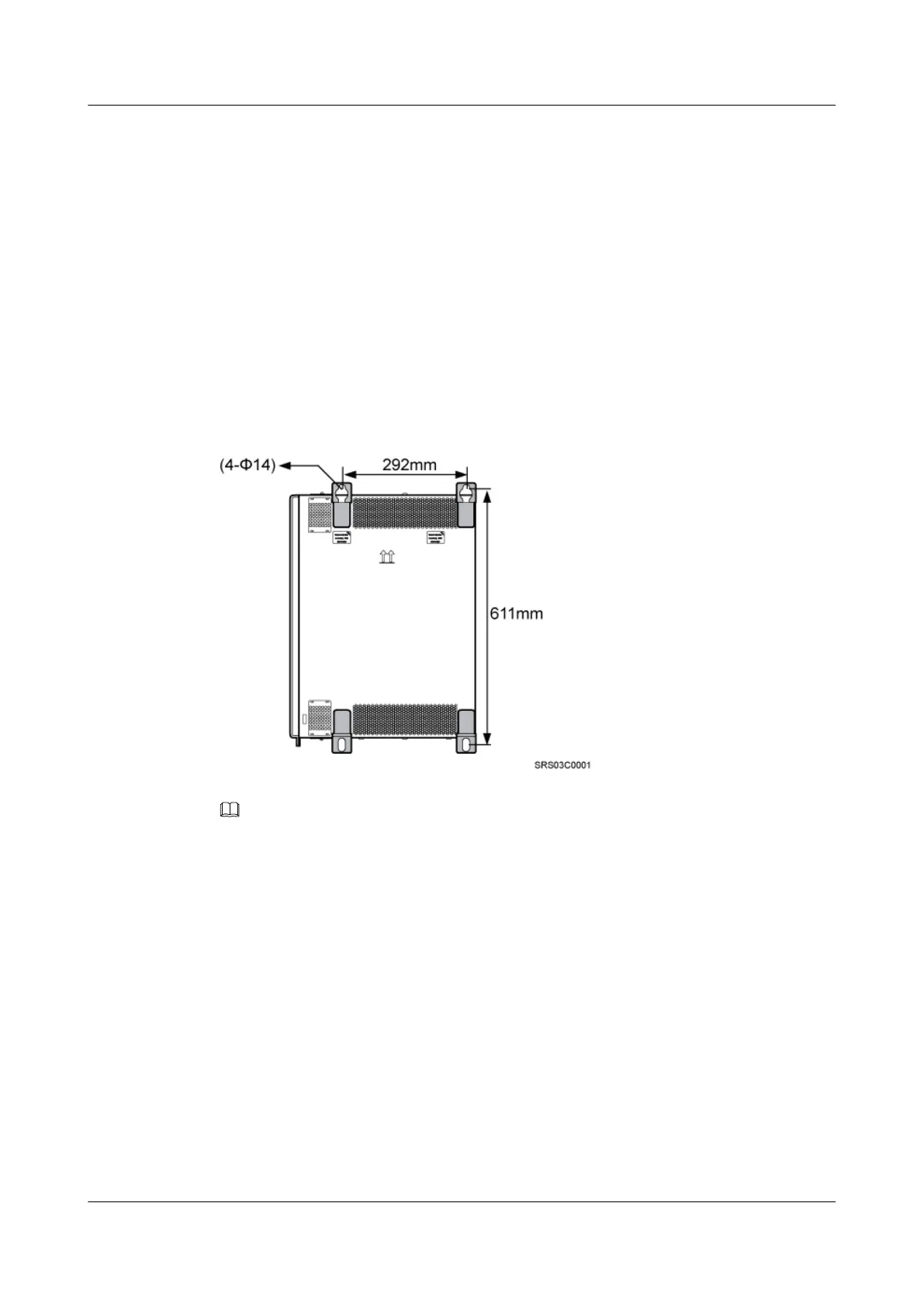

Figure 13-9 Spacing between the holes of the mounting ears
NOTE
The installation procedure of the IMB03 left-side-mounted on the wall is the same as the procedure of the
IMB03 right-side-mounted on the wall. The following description is based on the IMB03 right-side-
mounted on the wall.
Procedure
Step 1 Remove the protection plate from the bottom of the IMB03, as shown in Figure 13-10.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
441
