13.1 Dimensions and Installation Clearance Requirements
This section describes the dimensions and installation clearance requirements of the IMB03.
Dimensions

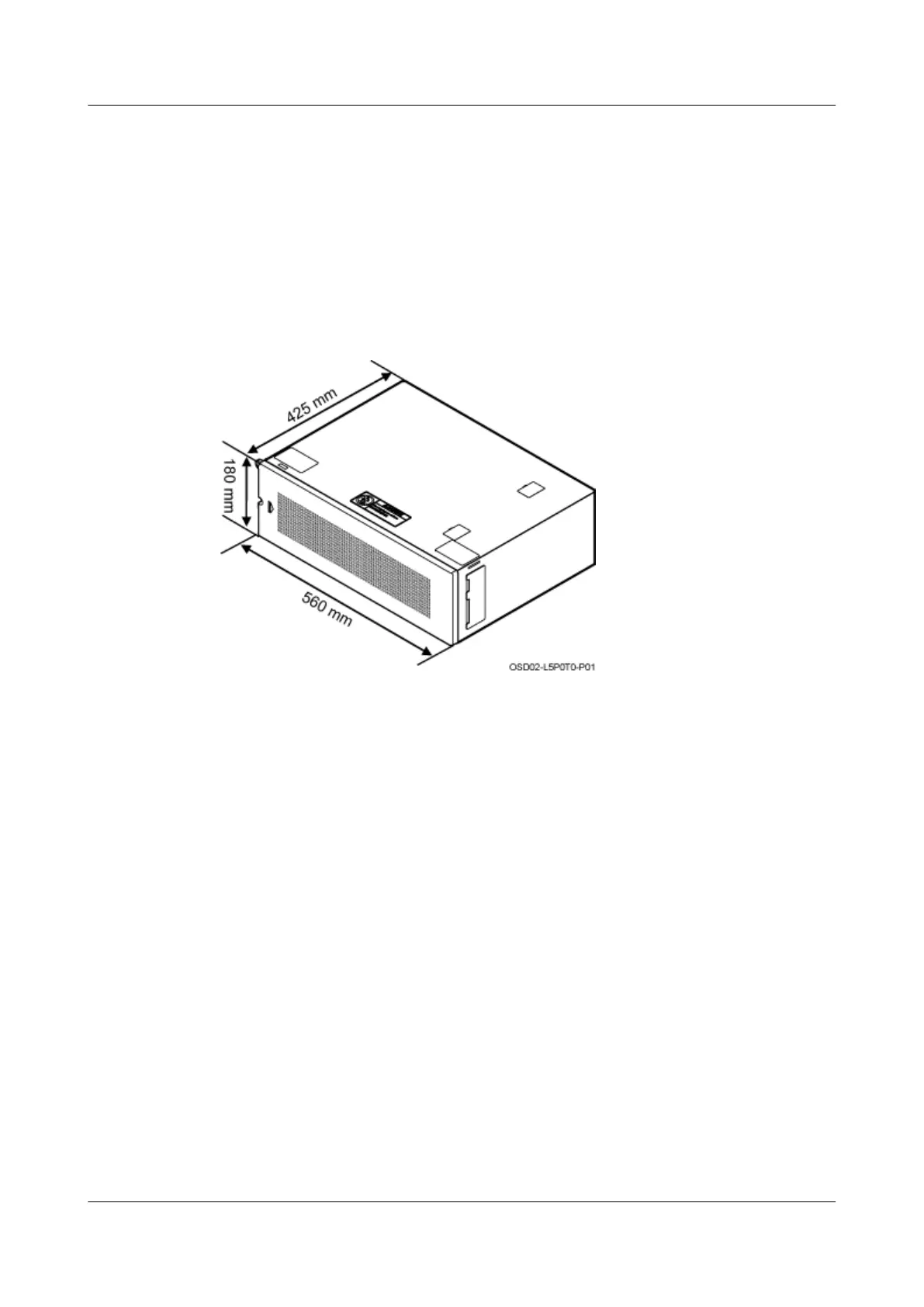

Figure 13-1 shows the dimensions of the IMB03.
Figure 13-1 Dimensions of the IMB03
Installation Clearance Requirements
13.1.1 Installation Clearance Requirements for the IMB03 Mounted
on the Wall
This section describes the recommended clearance and minimum clearance for the IMB03
mounted on the wall.
Installation Clearance Requirements for the IMB03 Right-Side-Mounted on the
Wall
Figure 13-2 shows the installation clearance requirements for the IMB03 right-side-mounted
on the wall.
DBS3900 (Ver.B)
Installation Guide 13 Indoor Scenario (BBU Installed in an IMB03)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
