13.1.2 Installation Clearance Requirements for the IMB03 Mounted
on the IFS06
This section describes the recommended clearance and minimum clearance for the IMB03
mounted on the IFS06.
Installation Clearance Requirements for the IMB03 Right-Side-Mounted on the
IFS06
Figure 13-5 shows the installation clearance requirements for the IMB03 right-side-mounted
on the IFS06.

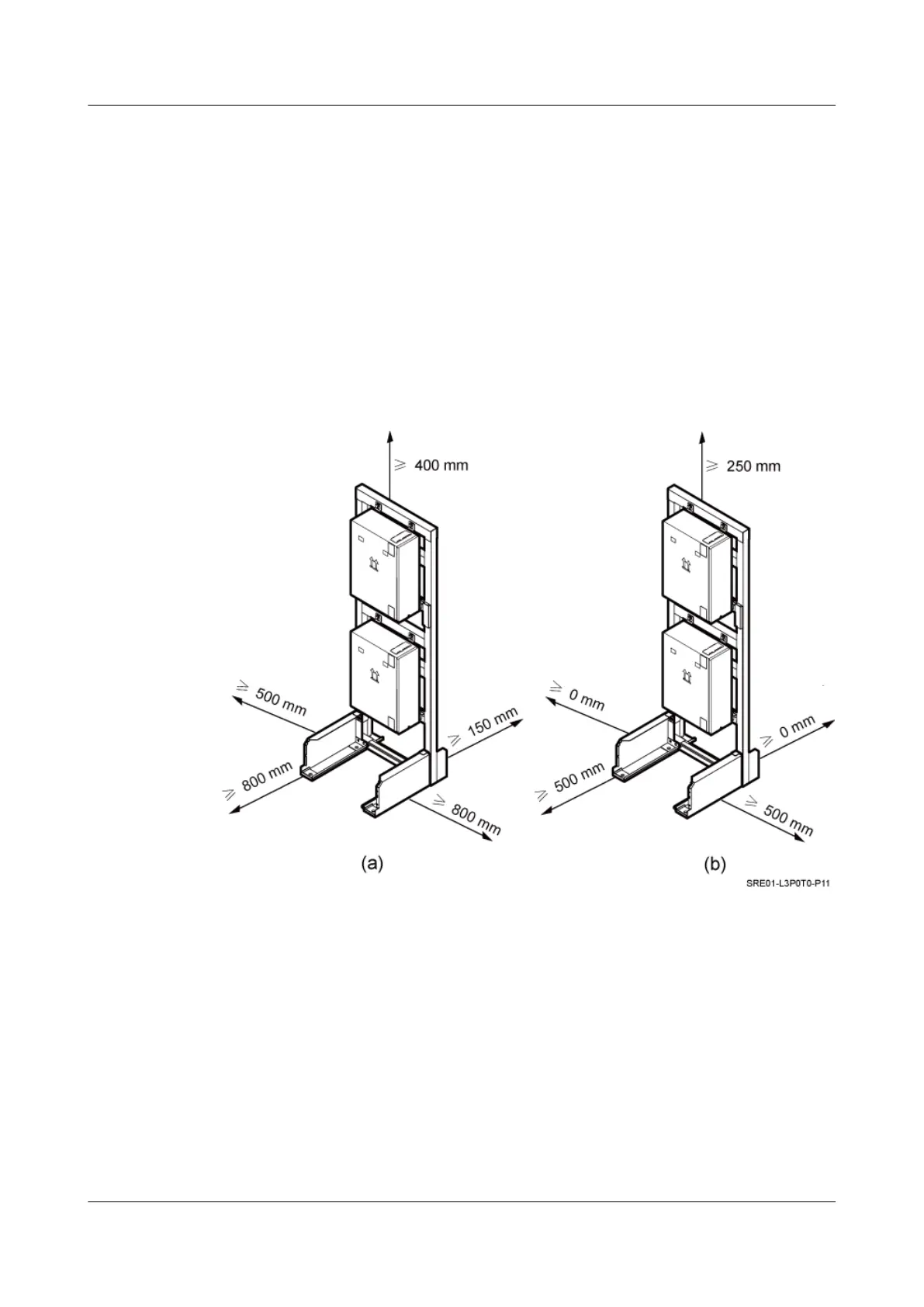

Figure 13-5 Installation clearance requirements for the IMB03 right-side-mounted on the IFS06
(a) Recommended installation clearance
(b) Minimum installation clearance
Installation Clearance Requirements for the IMB03 Left-Side-Mounted on the
IFS06
Figure 13-6 shows the installation clearance requirements for the IMB03 left-side-mounted on
the IFS06.
