Procedure
Step 1 Remove bolts from the filler panels on slots 2 and 3, and then remove the filler panels.
Step 2 Install the USLP2s in slots and 3, and then tighten the screws on both sides of the panels until
the tightening torque reaches 0.6 N·m, as shown in Figure 14-33.

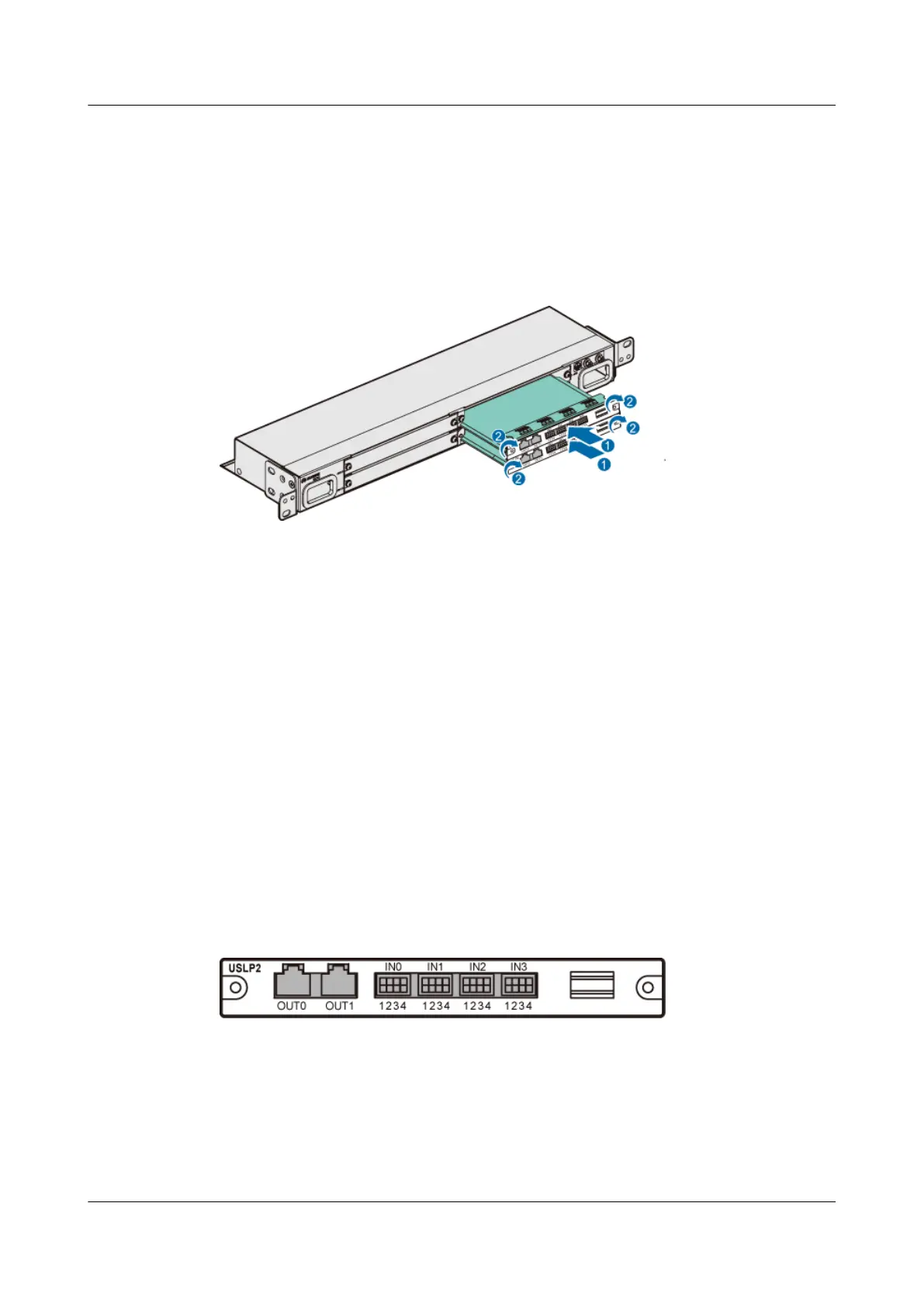

Figure 14-33 Installing USLP2s
----End
14.4.2 Installing an SLPU
To protect monitoring signals, an SLPU may be configured, which is installed the 1 U space
directly under the EPS.
Prerequisite
The tools, such as a screwdriver and a pair of ESD gloves, are available.
Context
The SLPU that is used to protect monitoring signals is configured with two Universal Signal
Lightning Protection units-type 2 (USLP2s). Figure 14-34 shows the panel of a USLP2.
Figure 14-34 Panel of a USLP2
Figure 14-35 shows the mapping relationship between the pins in the input and output ports on
the USLP2.
