2. Connect the other end to the ALM port on the power subrack (DC/DC).

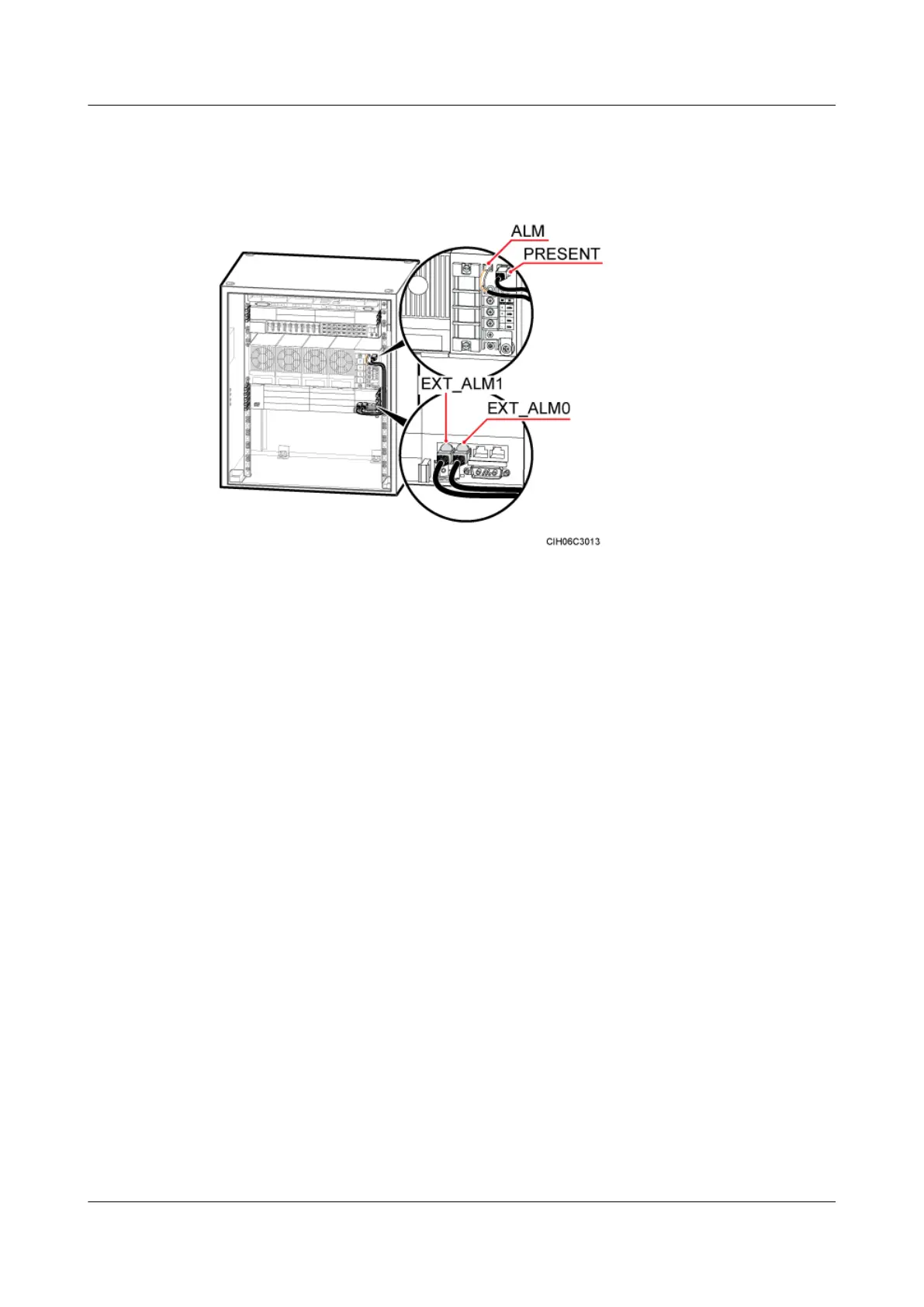

Figure 8-75 Installing a monitoring signal cable and in-position signal cable for the PSU (DC/
DC)
Step 2 Install an in-position signal cable for the PSU (DC/DC), as shown in Figure 8-75.
1. Connect one end of the in-position signal cable for the PSU (DC/DC) to the EXT_ALM1
port on the UPEU in the BBU.
2. Connect the other end to the PRESENT port on the power subrack (DC/DC).
Step 3 Route the cable by referring to 8.5.1 Cabling Requirements, and then use cable ties to bind the
cable.
Step 4 Label the installed cables by referring to Attaching a Sign Plate Label.
Step 5 Run each cable that leaves the cabinet in the PVC corrugated pipe, and then tie the pipe to the
cable hole in the cabinet.
----End
8.5.6 Installing a CPRI Optical Cable
A CPRI optical cable transmits CPRI signals between a BBU and an RRU.
Context
l The single-mode optical module is labeled "SM" and multi-mode optical module is labeled
"MM".
l If the puller of an optical module is blue, the module is a single-mode optical module. If
the puller of an optical module is black or grey, the module is a multi-mode optical module.
l The optical module to be installed must have a matching rate with the corresponding CPRI
port.
DBS3900 (Ver.B)
Installation Guide
8 Outdoor Scenario with DC Power Supply (BBU Installed
in a +24 V DC APM30H)
Issue 06 (2011-09-15) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
275
