13.2

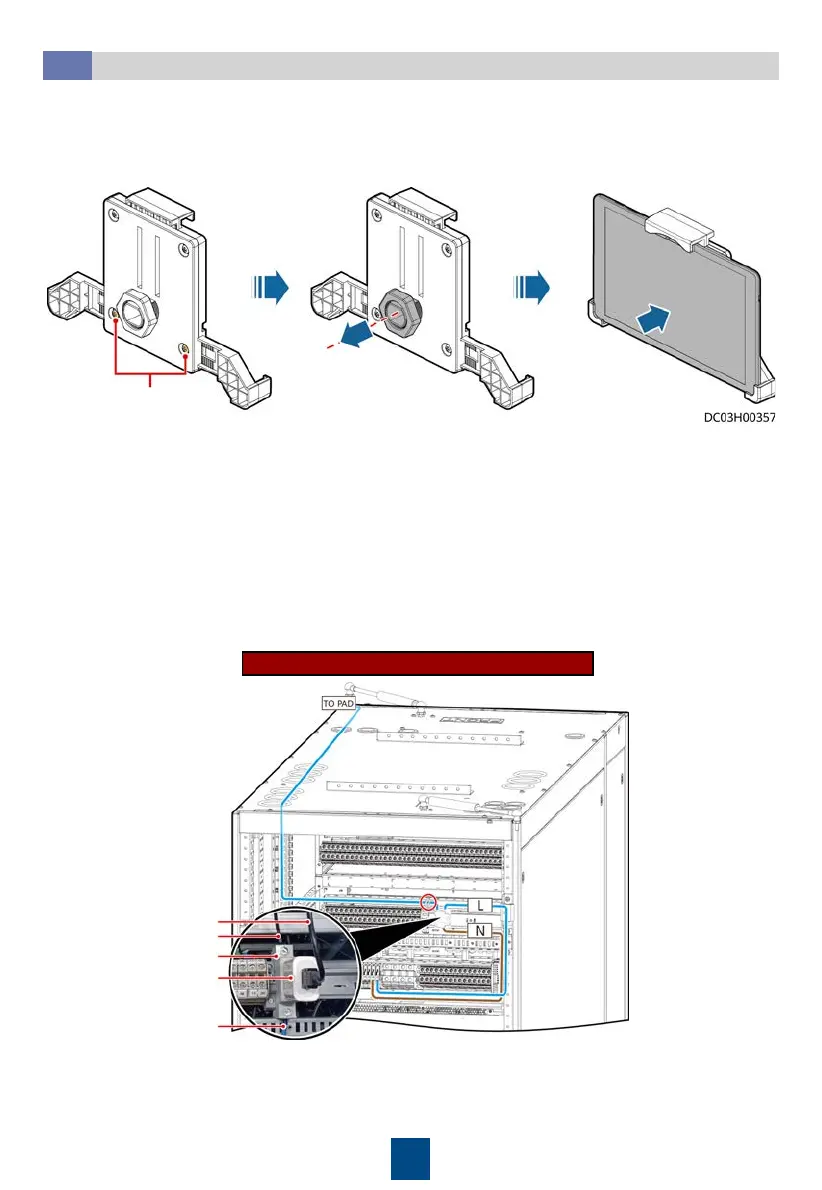

Installing a PAD

1. Adjust the PAD mounting bracket to match the PAD to be installed.

2. Remove the nut from the PAD mounting bracket and install the bracket.

3. Route the PAD power cable through the cable hole and connect the cable.

4. Install the PAD.

Adjustment screws

a. (Optional) If the PAD BOM number is 53010KXA, connect the cable from the ECC800-Pro

USB port to the PAD charging port.

b. (Optional) If the PAD BOM number is 53013YDR, clamp the socket connector to the

guide rail at the rear of the power distribution subrack, secure the end fastener of the

socket connector, and connect the cable between the fuse holder and the socket

connector. Connect the adapter delivered with the PAD, connect the extension cable, and

bind the cable. Connect the delivered power cable and extension cable to the PAD

support, bind the redundant cables to the PAD, and connect the power cable to the

charging port on the PAD.

5. Install the PAD cable.

PAD cable routing (cabinet rear door)

PAD power cable

L cable

Socket converter

PAD adapter

N cable
