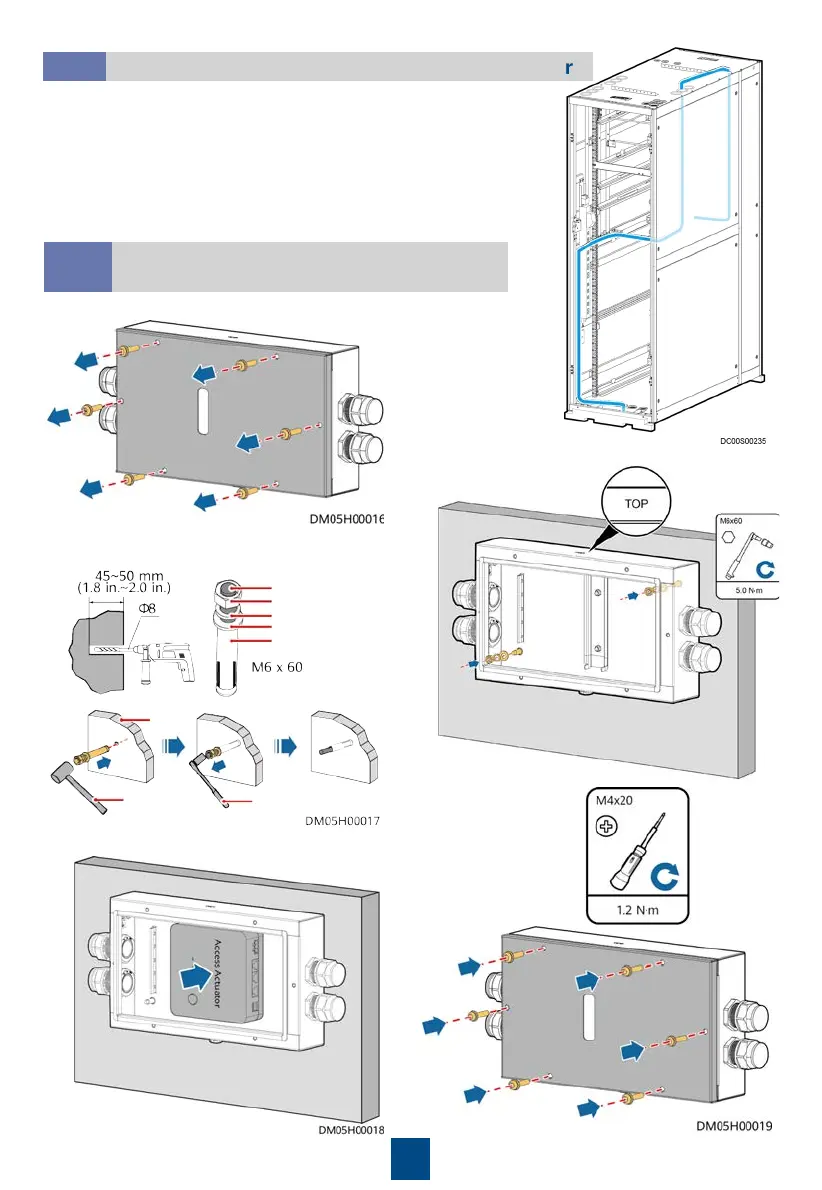

(Optional) Installing an Electrode Water Sensor

1. Place the water sensor on the floor under the

Converged Cabinet.

2. Route the water sensor cable through the

cable hole in the lower cover plate of the

Converged Cabinet for the hot aisle.

3. Connect it to the water sensor cable

connected to the ECC800-Pro.Bind the cable.

4. Install the water detector.

13.13

(Optional) Installing an In-Room

Access Actuator

1. Removing the cover of a waterproof box.

2. Drilling holes and installing expansion

chor bolt sleeves.

Expansion anchor bolt

M6 nut

Spring washer

Flat washer

Expansion sleeve

Wall

Rubber

mallet

Socket wrench

3. Securing a

terproof box.

4. Installing an access actuator.

5. Reinstalling the

terproof box cover.
