34

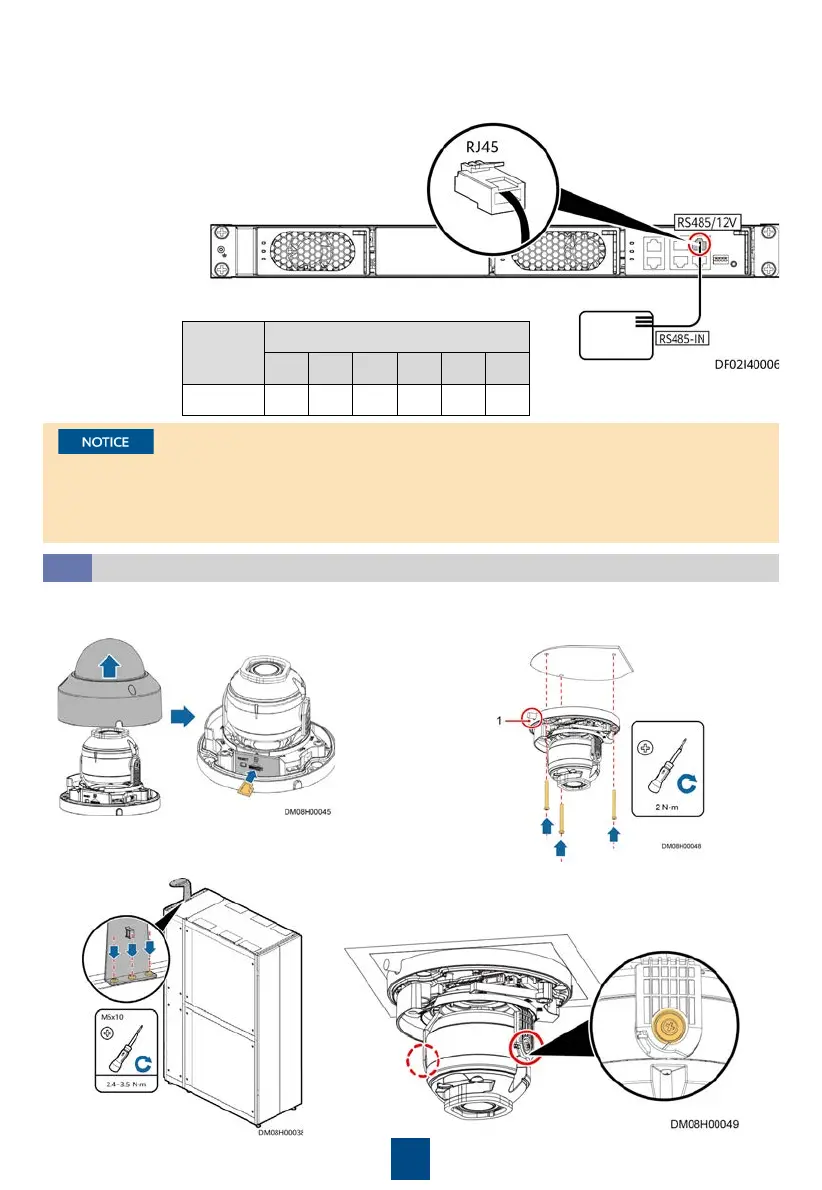

1. Attach a T/H sensor to the IT cabinet door frame.
2. Set the T/H sensor address to 11.
3. Connect the T/H sensor monitoring cable.
Address DIP Switch Sequence No.
1 2 3 4 5 6
11 ON ON OFF ON OFF OFF
• The default addresses of T/H sensors purchased from Huawei are 1.
• After the addresses are set, set Cold-aisle sensor to Enable on the ECC800-Pro WebUI.
Otherwise, the T/H sensors will not work. Path: Monitoring > Cooling > NetCol5000-A1 >
Running Parameters > Temp/Hum Sensor Parameters.
13.9
Installing a Camera
1. (Optional) Install an SD card 2. Secure the camera to the mounting
plate with a torque of 2 N·m.
3. Secure the mounting plate to the top
of the cabinet front door.
4. Adjust the camera.
To Next Page
