6
4

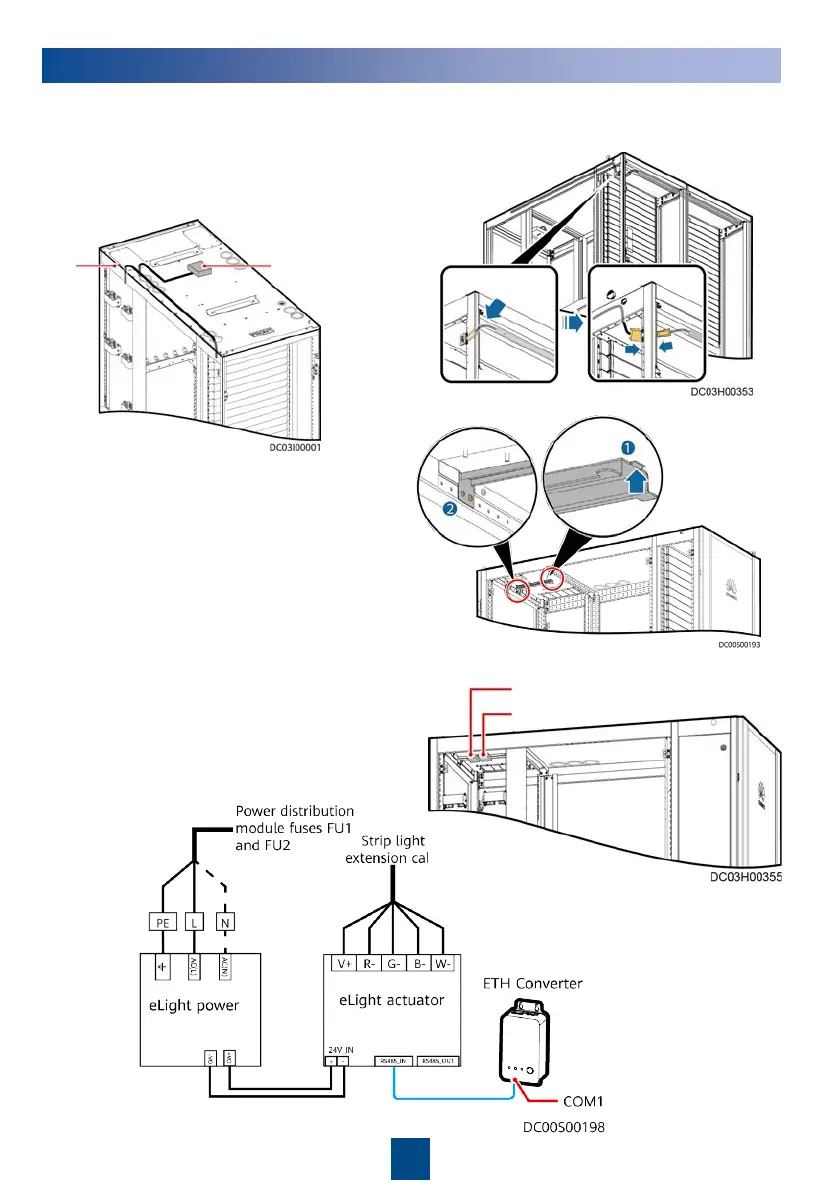

(Optional) Install the eLight
2. Pull the strip and extension cable straight
and interconnect the terminals.
1
2
(1)Strip light extension cable
(2) ETH converter
4. Connect cables to the eLight system.
1. Install the strip light.
a. Reserve the end with a wiring terminal on
the top of the IT cabinet at an end of the row.
b. Route the strip light from the top of the
cabinet at one end to the top pf the cabinet at
the other end, and secure the strip light using
the fastener.
3. Install the eLight actuator and power
module.
eLight actuator
eLight power module
a. Open the rear door of the end cabinet.
b. Al
ign one end of the support with the notch
on the rear door side of the top panel, and
hook the other end of the support to the
long strip hole on the top panel, as shown
by (1) in figure.
c. Secure the support using two screws at the
notch on the rear door side of the top panel,
as shown by (2) in figure.
d. Clamp the eLight actuator and power
module onto the mounting kit.
