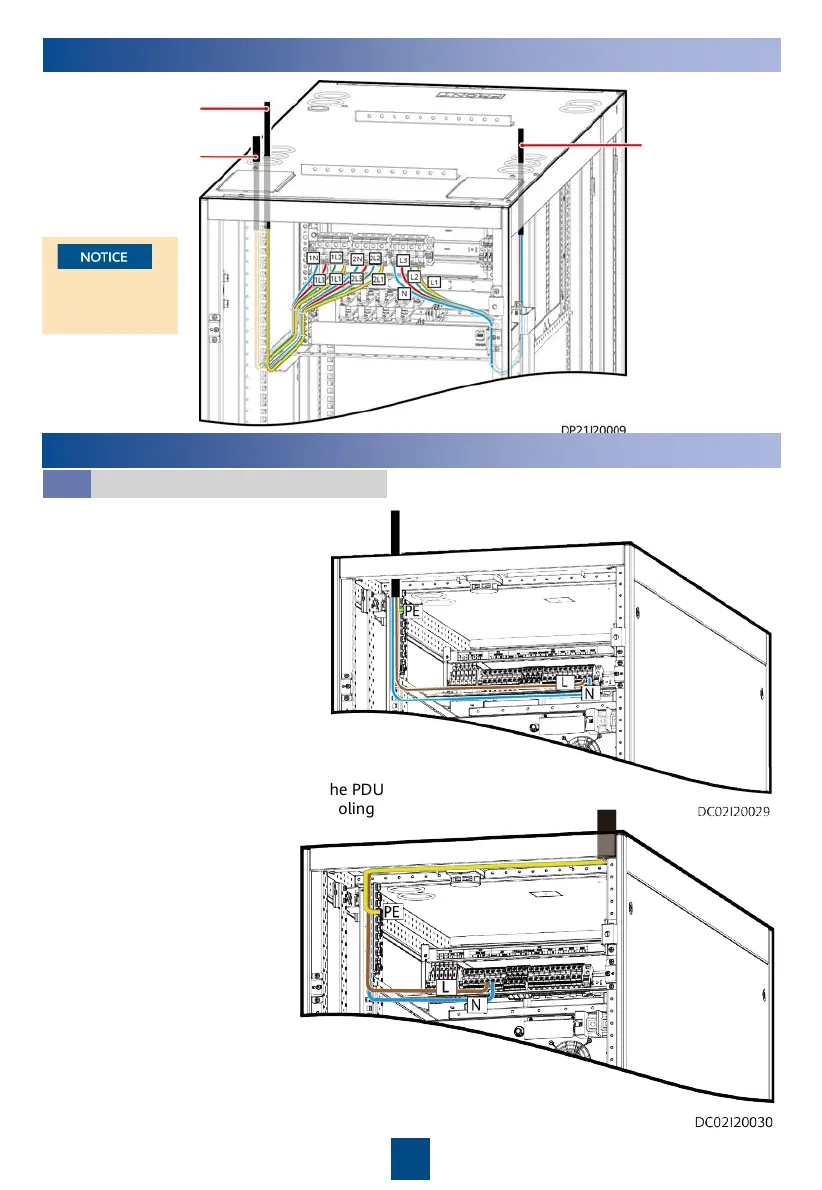

(Optional) Connecting Cables to the ATS Subrack
Power cables of
input I to the ATS
Power cables of
input II to the ATS
Output power
cables from the
ATS to the
Converged
Cabinet
Connect the
ground cable
first.
6
Connecting Power Cables to the Converged Cabinet
Connecting output power cables
to the PDU (for the IT cabinet)
Connecting output power cables to the PDU
(for the outdoor units of the smart cooling
product)
Top Cable Routing
6.1
To Next Page
