8
•
At a high place with strong winds, install the outdoor unit against a wall to ensure the
normal operating of fans. Install baffle plates when necessary. Take this measure to prevent
wind from blowing down the outdoor unit.
•
Try to install an outdoor unit against a wall. If the site conditions cannot meet the
requirements and the local outdoor temperature may be below –10°C (NetCol500-A018),
0°C (NetCol500-A020) or –10°C (NetCol500-A021), prepare and install an air baffle by
referring to the figures on the following slide. The air baffle height and width should be
greater than or equal to the outdoor unit height and width, respectively.
• indicates the wind direction.
• If the site installation environment is complicated and the preceding conditions are not met,
contact Huawei technical support.

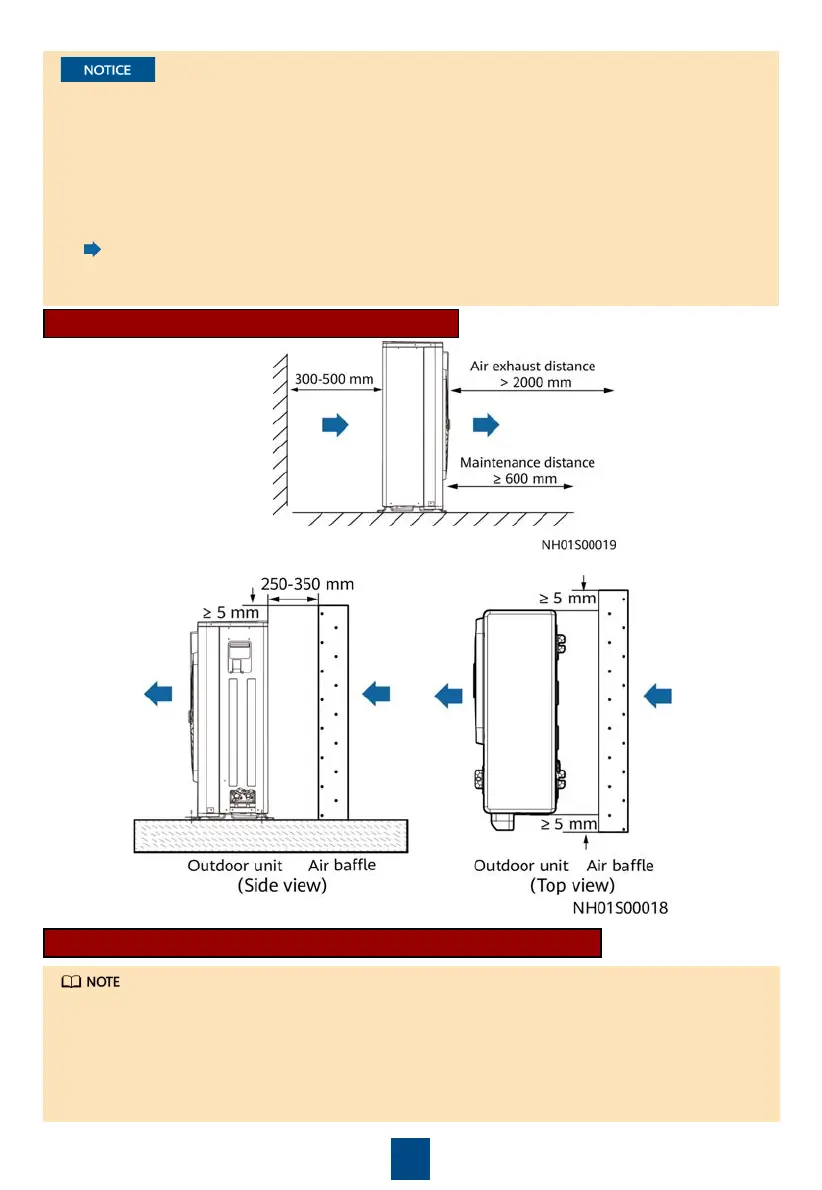

Space requirements for a single outdoor unit
It is recommended that a
single outdoor be installed
against a wall.
If the air baffle is needed, place an air baffle at the air intake side of the outdoor unit based on
the following figure.
Space requirements for a single wall-mounted outdoor unit
• The bearing capacity of the support platform is more than 320 kg.
• Reserve no less than 300 mm from the left or right side of the outdoor unit for maintenance
personnel to walk.
• A mesh structure is recommended to avoid the air exhaust and intake of the smart cooling
product being affected by the guardrail structure.
• The picture is only for reference. Adjust based on the on-site situation if necessary.
