3: INSTALLATION AND WIRING
« FC4A MICROSMART USER’S MANUAL » 3-7

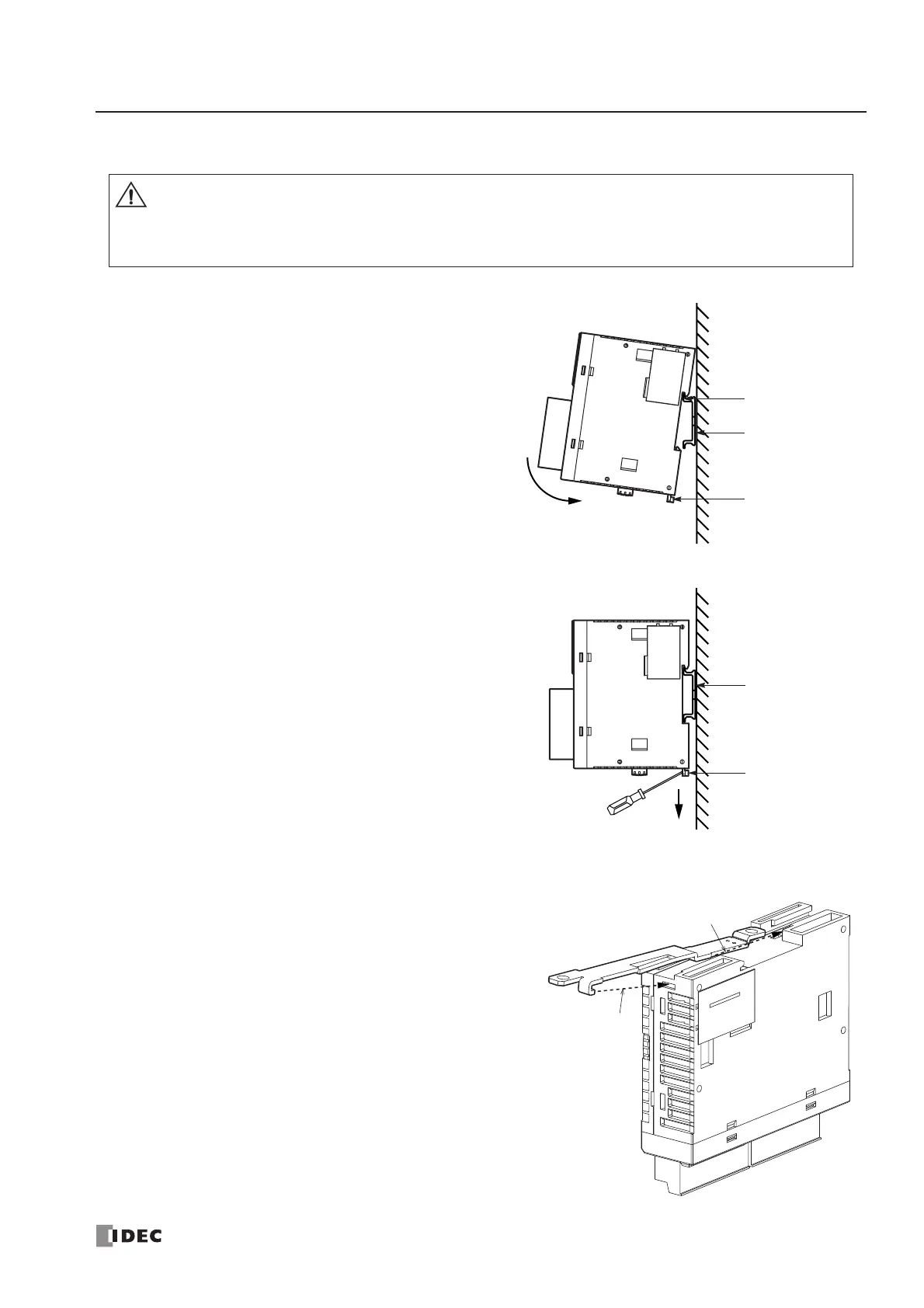

Mounting on DIN Rail
1. Fasten the DIN rail to a panel using screws firmly.
2. Pull out the clamp from each MicroSmart module,
and put the groove of the module on the DIN rail.
Press the modules towards the DIN rail and push in
the clamps as shown on the right.
3. Use BNL6 end clips on both sides of the MicroSmart
modules to prevent moving sideways.
Removing from DIN Rail
1. Insert a flat screwdriver into the slot in the clamp.
2. Pull out the clamps from the modules.
3. Turn the MicroSmart modules bottom out.
Direct Mounting on Panel Surface
MicroSmart modules can also be mounted on a panel
surface inside a console. When mounting a slim type
CPU module, digital I/O module, analog I/O module,
HMI base module, or communication module, use
optional direct mounting strip FC4A-PSP1P as
described below.
Installing the Direct Mounting Strip
1. Remove the clamp from the module by pushing the
clamp inward.
2. Insert the direct mounting strip into the slot where the
clamp has been removed (A). Further insert the direct
mounting strip until the hook enters into the recess in
the module (B).
