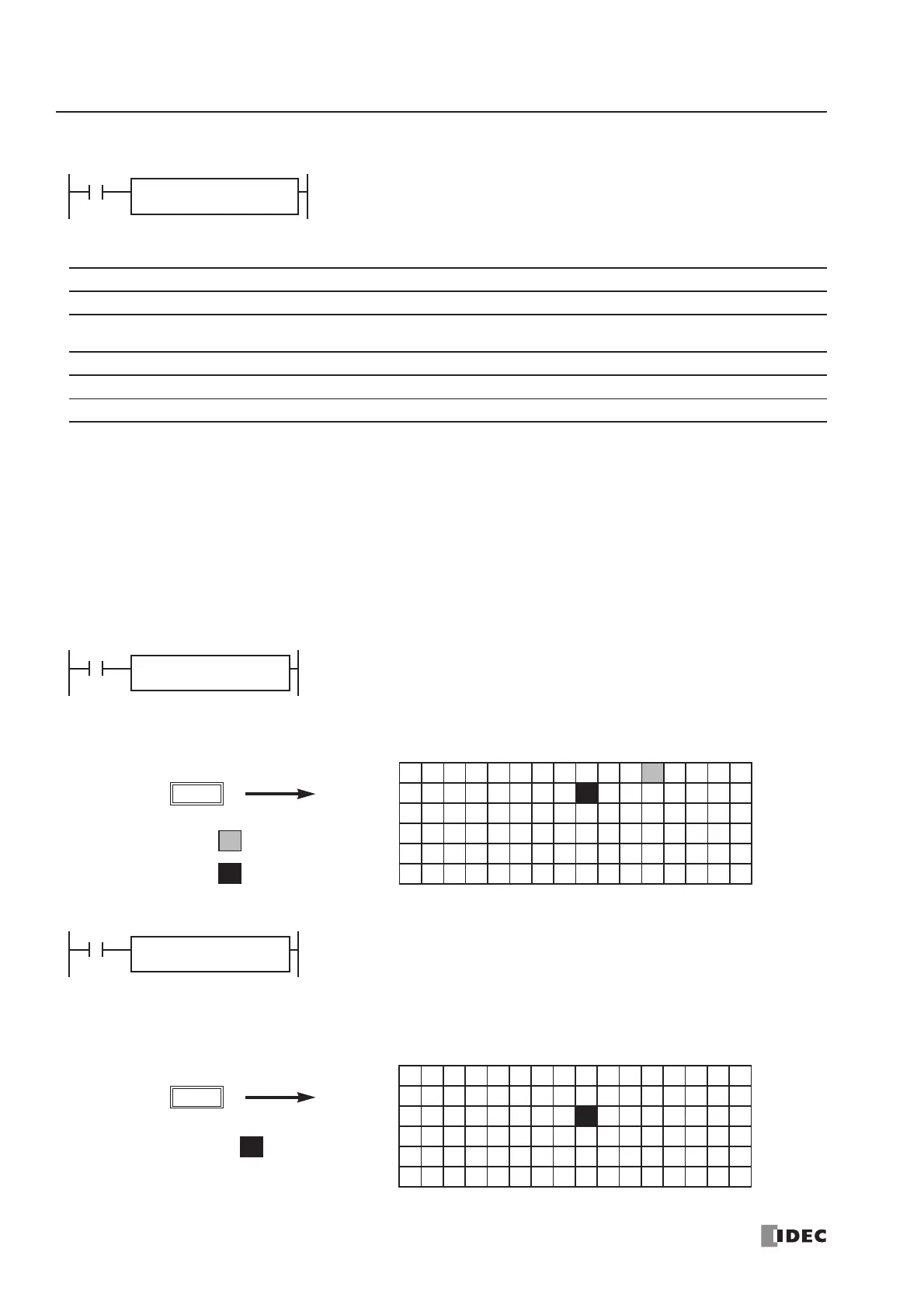

14: DATA CONVERSION INSTRUCTIONS
14-12 « FC4A MICROSMART USERS MANUAL »
DECO (Decode)
Applicable CPU Modules
Valid Operands
For the valid operand number range, see pages 6-1 and 6-2.
Internal relays M0 through M1277 can be designated as D1. Special internal relays cannot be designated as D1.
Valid values for the offset designated by source operand S1 are 0 through 255. Make sure that the offset designated by S1
and the last bit of destination data determined by the sum of S1 and D1 are within the valid value range. If the offset or
destination data is out of the valid range, a user program execution error will result, turning on special internal relay
M8004 and the ERR LED.
Since the DECO instruction is executed in each scan while input is on, a pulse input from a SOTU or SOTD instruction
should be used as required.
Examples: DECO
FC4A-C10R2/C FC4A-C16R2/C FC4A-C24R2/C FC4A-D20K3/S3 FC4A-D20RK1/RS1 & FC4A-D40K3/S3
——— X
Operand Function I Q M R T C D Constant Repeat
S1 (Source 1) Offset XXXXX 0-255
D1 (Destination 1) First bit to count offset X X——X
When input is on, the values contained in operands designated by S1 and D1 are
added to determine the destination, and the bit so determined is turned on.
DECO S1
*****
D1
*****
D1
M104
S1
D20
I0
DECO
M117 M100
M137
M120
M157 M140
M177 M160
M197 M180
M217 M200
When input I0 is on, the destination bit is determined by adding the value con-
tained in data register D20 designated by operand S1 to internal relay M104 des-
ignated by destination operand D1.
Since 19th bit from internal relay M104 is internal relay M127, the bit so deter-
mined is turned on.
19
D20
First bit
ON
D1
D30
S1
D10
I1
DECO
Bit 15 14 13 12 11 10 9876543210
D30
D31
D32
D33
D34
D35
When input I1 is on, the destination bit is determined by adding the value con-
tained in data register D10 designated by operand S1 to data register D30 desig-
nated by destination operand D1.
Since 39th bit from data register D30 bit 0 is data register D32 bit 7, the bit so
determined is turned on.
ON
39
D10
