« FC4A MICROSMART USER’S MANUAL » 2-1
2: MODULE SPECIFICATIONS
Introduction
This chapter describes MicroSmart modules, parts names, and specifications of each module.
Available modules include all-in-one type and slim type CPU modules, digital input modules, digital output modules,
mixed I/O modules, analog I/O modules, HMI module, HMI base module, communication adapters, communication mod-
ules, memory cartridge, and clock cartridge.
CPU Modules (All-in-One Type)
All-in-one type CPU modules are available in 10-, 16-, and 24-I/O types. The 10-I/O type has 6 input and 4 output termi-
nals, the 16-I/O type 9 input and 7 output terminals, and the 24-I/O type 14 input and 10 output terminals. Every all-in-one
type CPU module has communication port 1 for RS232C communication. In addition, the 16- and 24-I/O type CPU mod-
ules have port 2 connector to install an optional RS232C or RS485 communication adapter for 1:N computer link, modem
communication, or data link communication. Every all-in-one type CPU module has a cartridge connector to install an
optional memory cartridge or clock cartridge.

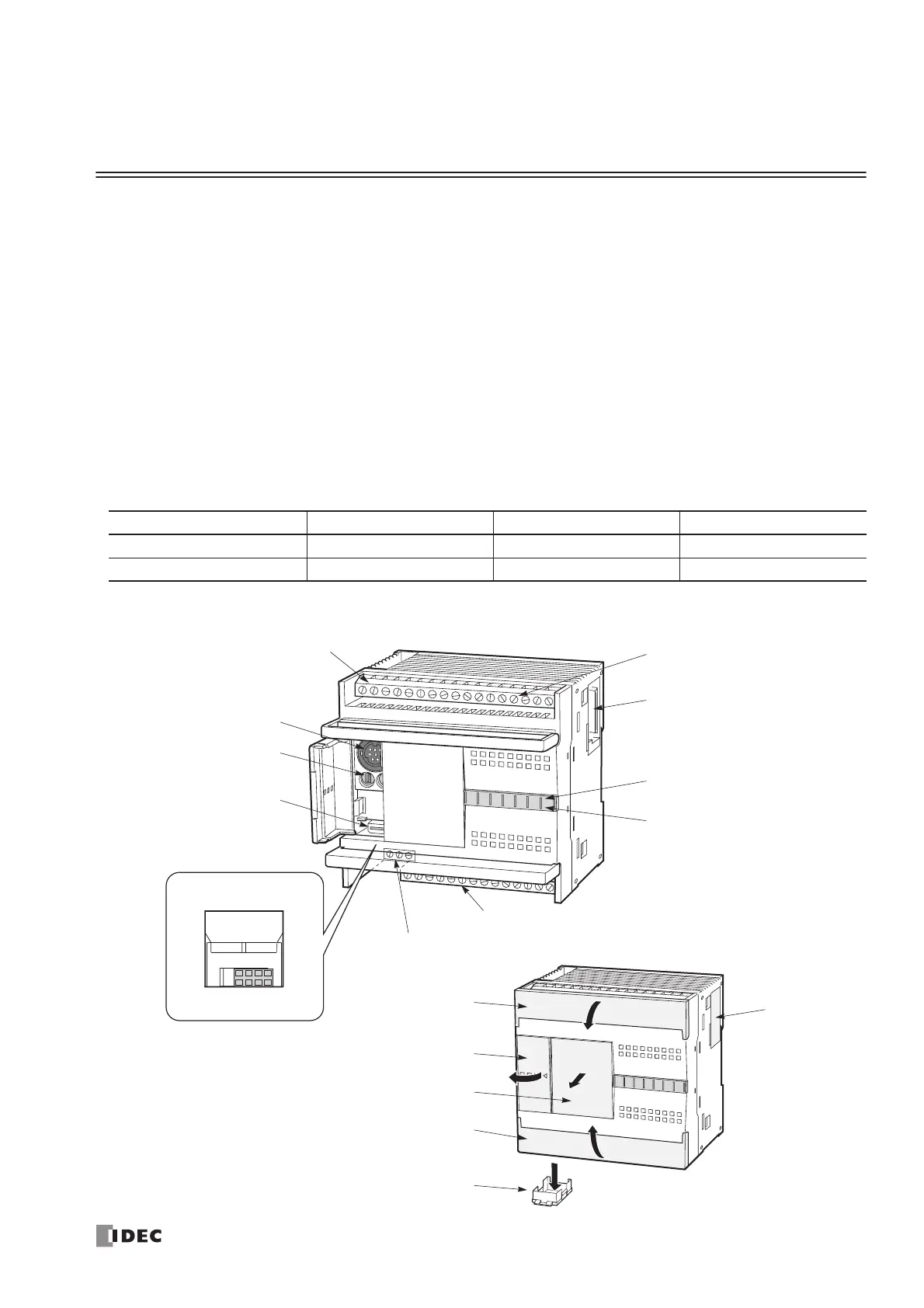

CPU Module Type Numbers (All-in-One Type)
Parts Description (All-in-One Type)
Power Voltage 10-I/O Type 16-I/O Type 24-I/O Type
100 -240V AC (50/60 Hz) FC4A-C10R2 FC4A-C16R2 FC4A-C24R2
24V DC FC4A-C10R2C FC4A-C16R2C FC4A-C24R2C
type CPU module.
on the following page.
To Next Page
