25: DATA LINK COMMUNICATION
25-12 « FC4A MICROSMART USER’S MANUAL »

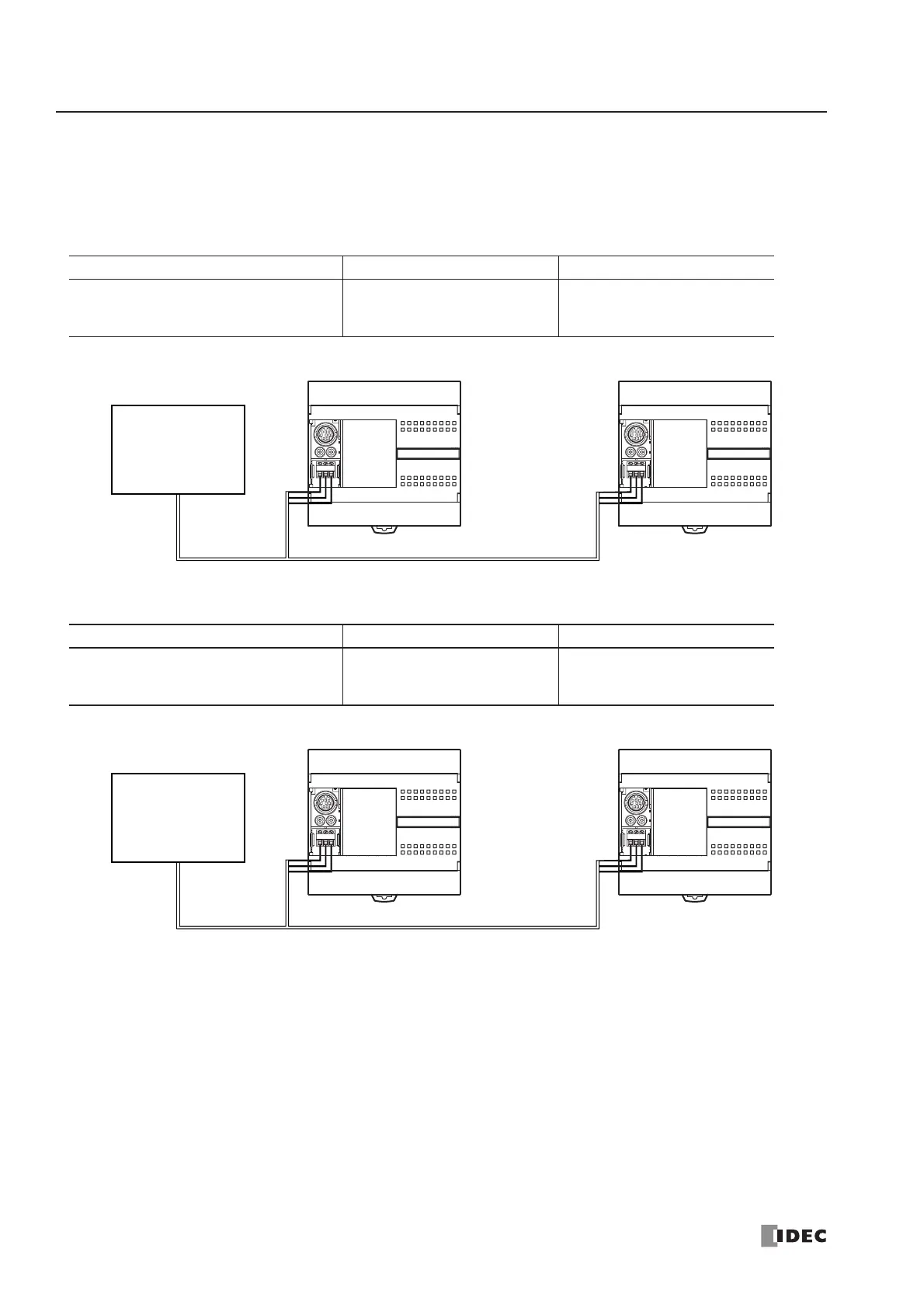

Data Link with Other PLCs
The data link communication system can include IDEC’s OpenNet Controller, MICRO
3
/MICRO
3
C micro programmable
controllers, and FA-3S programmable controllers using serial interface modules.
Data Link with OpenNet Controller
Data Link with FA-3S High-performance CPU using Serial Interface Module PF3S-SIF4
OpenNet Controller Settings MicroSmart Settings MicroSmart Settings
Transmit data: 6 words
Receive data: 6 words
Baud rate: 19200 or 38400 bps
Slave station number 1 Slave station number 2
FA-3S (PF3S-SIF4) Settings MicroSmart Settings MicroSmart Settings
Transmit data: 6 words
Receive data: 6 words
Baud rate: 19200 or 38400 bps
Slave station number 1 Slave station number 2
Slave Station 1
OpenNet Controller
Slave Station 2
Slave Station 1
FA-3S (CP12/13)
PF3S-SIF4
Slave Station 2
