5: SPECIAL FUNCTIONS
5-2 « FC4A MICROSMART USER’S MANUAL »
Stop Input and Reset Input
As described on page 4-3, the MicroSmart can be started and stopped using a stop input or reset input, which can be desig-
nated from the Function Area Settings menu. When the designated stop or reset input is turned on, the MicroSmart stops
operation. For the system statuses in the stop and reset modes, see page 4-4.
Since these settings relate to the user program, the user program must be downloaded to the MicroSmart after changing
any of these settings.
Programming WindLDR
1. From the WindLDR menu bar, select Configure > Function Area Settings. The Function Area Settings dialog box
appears.
2. Select the Run/Stop tab.
Stop Input: Click the check box on the left of Use Stop Input and type a desired input number available on the CPU
module in the Stop Input field.
Reset Input: Click the check box on the left of Use Reset Input and type a desired reset number available on the CPU
module in the Reset Input field.
Default: No stop and reset inputs are designated.
3. Click the OK button.

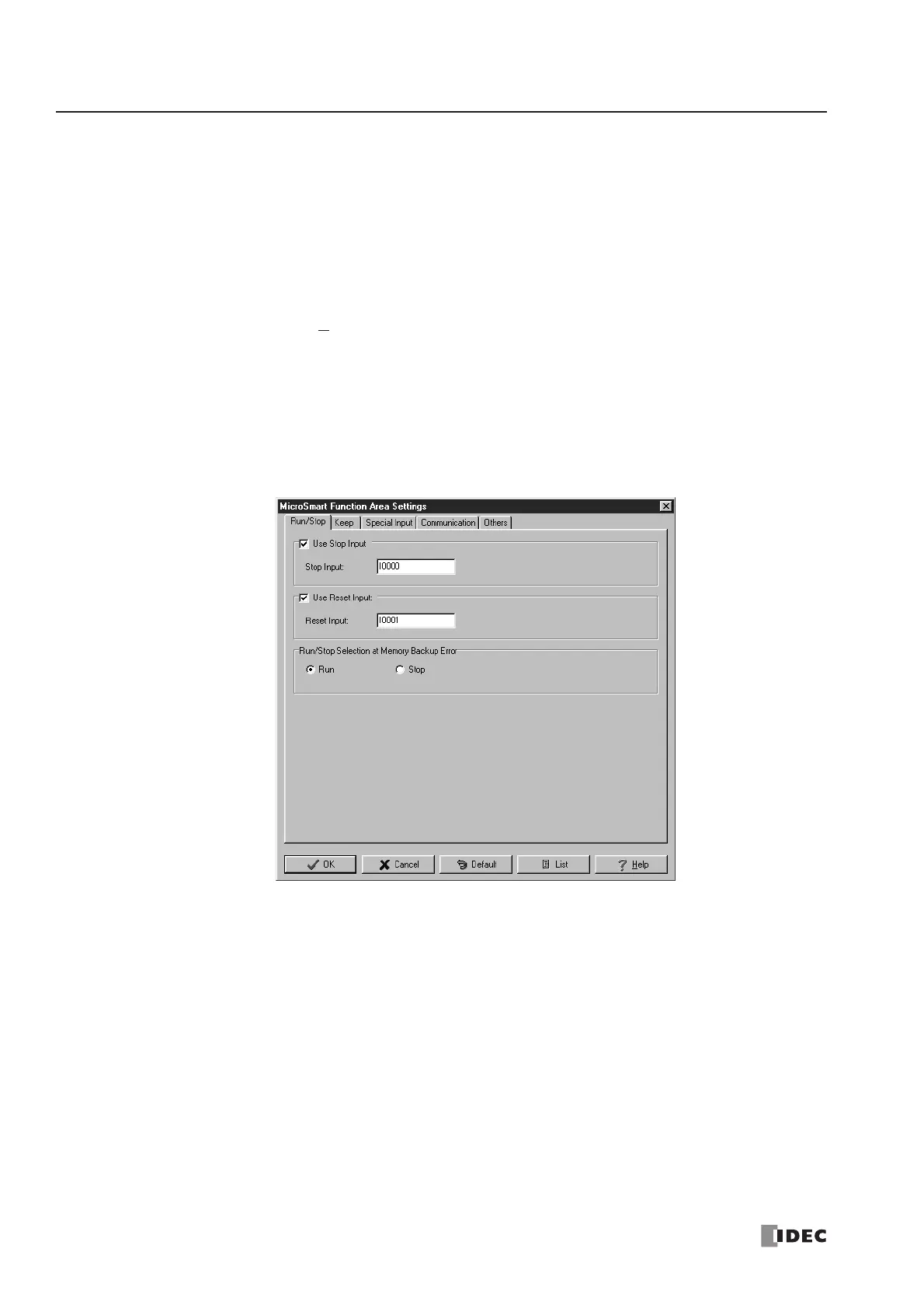

This example designates
input I0 as a stop input and
input I1 as a reset input.
