5: SPECIAL FUNCTIONS
« FC4A MICROSMART USER’S MANUAL » 5-25
User Program Protection
The user program in the MicroSmart CPU module can be protected from reading, writing, or both using the Function Area
Settings in WindLDR. The read/write protection can be temporarily disabled using a predetermined password.
Upgraded CPU modules with system program version 210 or higher have an option for read protection without a pass-
word, making it possible to inhibit reading completely.
Programming WindLDR

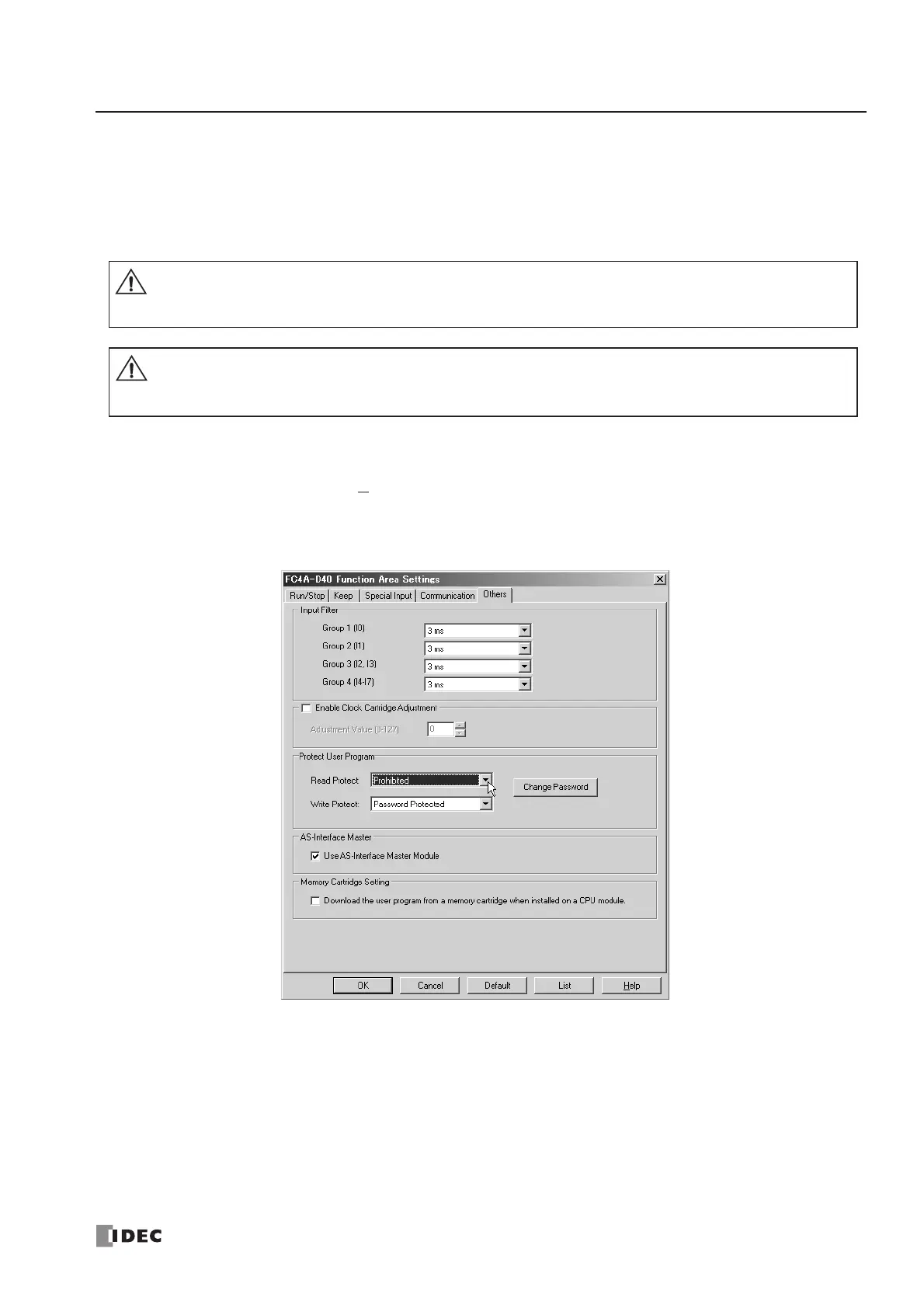

1. From the
WindLDR menu bar, select Configure > Function Area Settings. The Function Area Settings dialog box
appears.
2. Select the Others tab.
3. Under Protect User Program, select required protect modes for Read Protect and Write Protect in the pull-down
list.
Unprotected: The user program in the CPU module can be read and written without a password.
Password Protected: Prevents unauthorized copying or inadvertent replacement of the user program.
The protection can be temporarily disabled using a predetermined password.
Prohibited: Prevents copying of the user program completely.
This option is available for read protection only and can not be temporarily disabled using a
password. To select this option, use a CPU module with system program ver. 210 or higher
and WindLDR ver 5.31 or higher
• If the user program is read-protected without using a password, the read protection cannot be tem-
porarily disabled using the password, thus the user program cannot be read out by any means. To
disable the read protection, download another user program without user program protection.
disable the user program protection. If the user program in the MicroSmart CPU module is write-
or read/write-protected, the user program cannot be changed without the password.
To Next Page
