2: MODULE SPECIFICATIONS
2-30 « FC4A MICROSMART USER’S MANUAL »
Output Modules
Digital output modules are available in 8- and 16-point relay output modules, 8-, 16- and 32-point transistor sink output
modules, and 8-, 16- and 32-point transistor source output modules with a screw terminal block or plug-in connector for
output wiring.
The output modules can be connected to the all-in-one 24-I/O type CPU module and all slim type CPU modules to expand
output terminals. The all-in-one 10- and 16-I/O type CPU modules cannot connect output modules.
Output Module Type Numbers

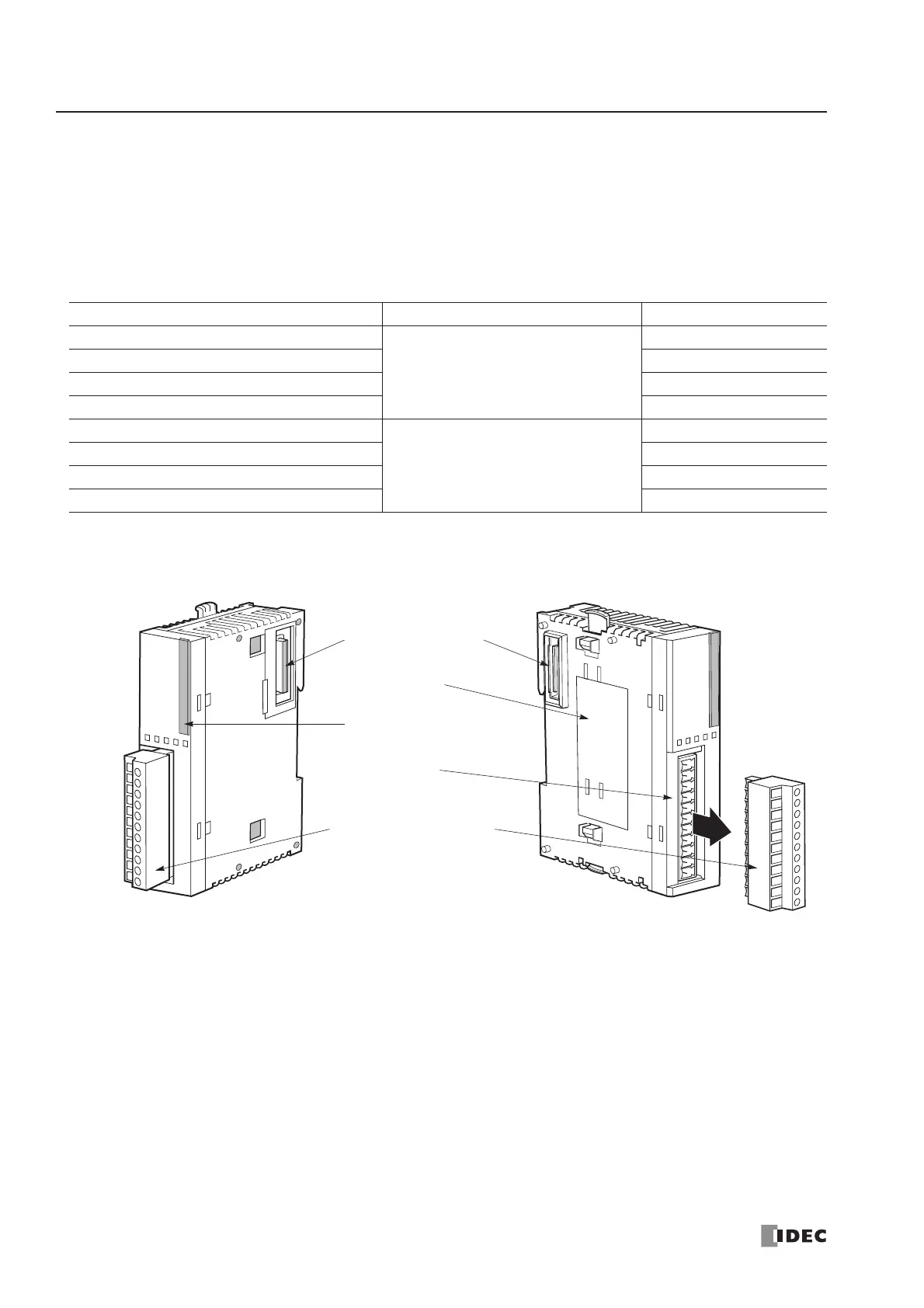

Parts Description
(1) Expansion Connector Connects to the CPU and other I/O modules.
(The all-in-one 10- and 16-I/O type CPU modules cannot be connected.)
(2) Module Label Indicates the output module Type No. and specifications.
(3) LED Indicator Turns on when a corresponding output is on.
(4) Terminal No. Indicates terminal numbers.
(5) Cable Terminal/Connector Five different terminal/connector styles are available for wiring.
Module Name Terminal Type No.
8-point Relay Output
Removable Terminal Block
FC4A-R081
16-point Relay Output FC4A-R161
8-point Transistor Sink Output FC4A-T08K1
8-point Transistor Source Output FC4A-T08S1
16-point Transistor Sink Output
MIL Connector
FC4A-T16K3
16-point Transistor Source Output FC4A-T16S3
32-point Transistor Sink Output FC4A-T32K3
32-point Transistor Source Output FC4A-T32S3
To Next Page
