7: BASIC INSTRUCTIONS
« FC4A MICROSMART USER’S MANUAL » 7-7

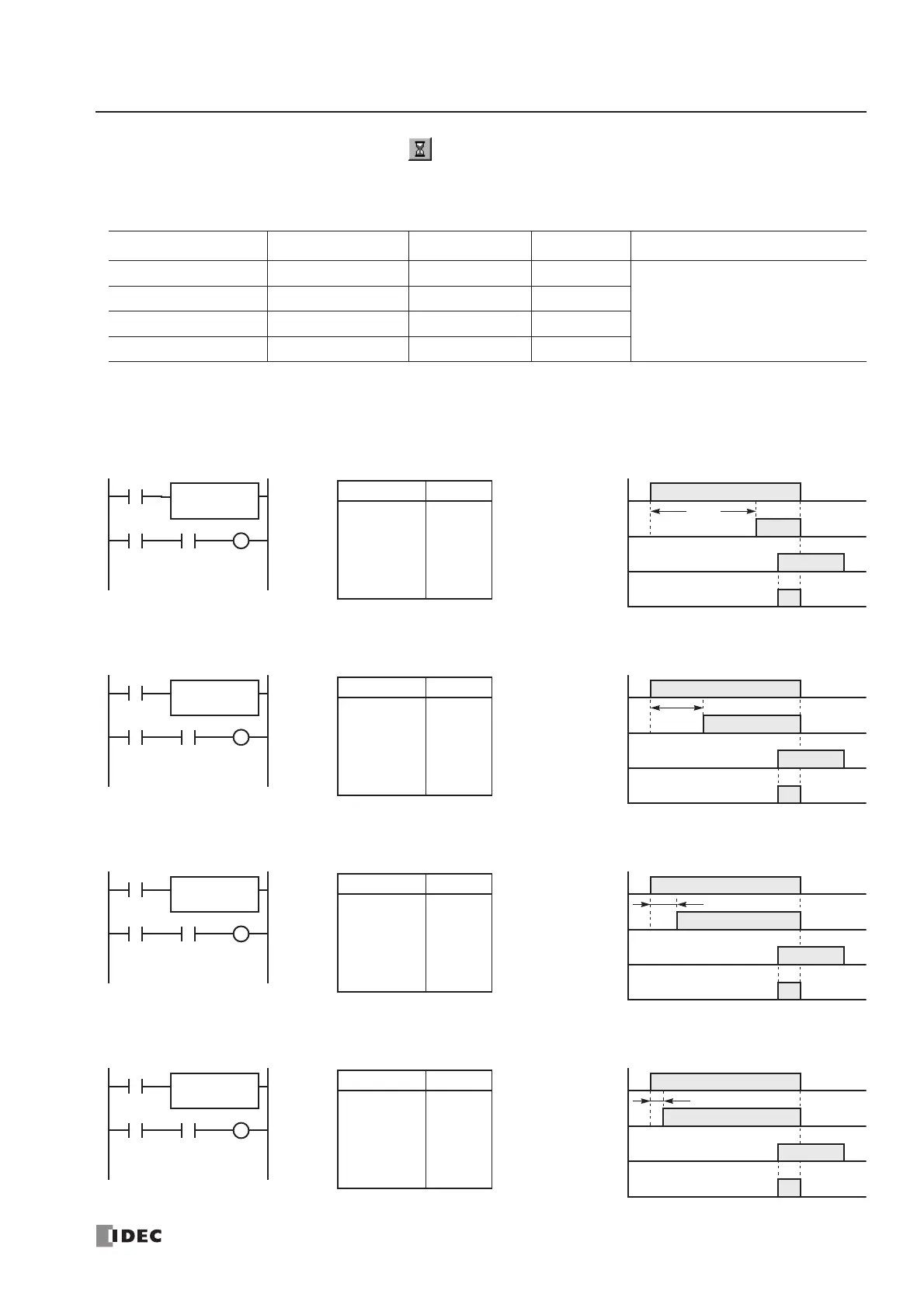

TML, TIM, TMH, and TMS (Timer)
Four types of timedown timers are available; 1-sec timer TML, 100-ms timer TIM, 10-ms timer TMH, and 1-ms timer
TMS. A total of 32 timers (all-in-one 10-I/O type CPU module) or 100 timers (other CPU modules) can be programmed in
a user program. Each timer must be allocated to a unique number T0 through T31 or T99.
The valid operand range depends on the CPU module type. For details, see pages 6-1 and 6-2.
The preset value can be 0 through 65535 and designated using a decimal constant or data register.
TML (1-sec Timer)
TIM (100-ms Timer)
TMH (10-ms Timer)
TMS (1-ms Timer)
Timer Allocation Number Range Increments Preset Value
TML (1-sec timer) T0 to T99 0 to 65535 sec 1 sec
Constant: 0 to 65535
Data registers: D0 to D1299
D2000 to D7999
TIM (100-ms timer) T0 to T99 0 to 6553.5 sec 100 ms
TMH (10-ms timer) T0 to T99 0 to 655.35 sec 10 ms
TMS (1-ms timer) T0 to T99 0 to 65.535 sec 1 ms
To Next Page
