• Wall mount on a sheet metal surface
• Pipe mount using the Itron pipe mount kit CFG-0005-003
• Custom Eagle Research mounting option using the Eagle research mounting rail
(Eagle Research part number 1010247)
Note: Itron recommends an optional sealant for installations where insect intrusion may
be a problem. For more information, see Optional sealant application instructions on
page 73.
4. Programming the 100G series remote ERT module. Programming requires an Itron ERT
programming device (for example, an FC300SR). For programming information, see
100G Series Remote Module Programming on page 13
100G series module configuration with the meter is dependent on your system application.
See the Eagle Research meter product documentation for the Eagle Research Field
Manager database configuration information.
This mounting information describes installation for two 100G remote modules—one for
corrected reads and one for uncorrected reads. Installation is the same for both
configurations (corrected or uncorrected). Eagle Research meter outputs are optically
isolated from the meter control board and from each other. The volume corrector software
configuration controls the port operation. Follow the Eagle Research documentation and
these Itron instructions to ensure the correct compatibility and installation.
Eagle Research product mounting instructions
Note: These instructions show the Eagle Research MPplus volume corrector. Installation is
the same for the XARTU-1 corrector.

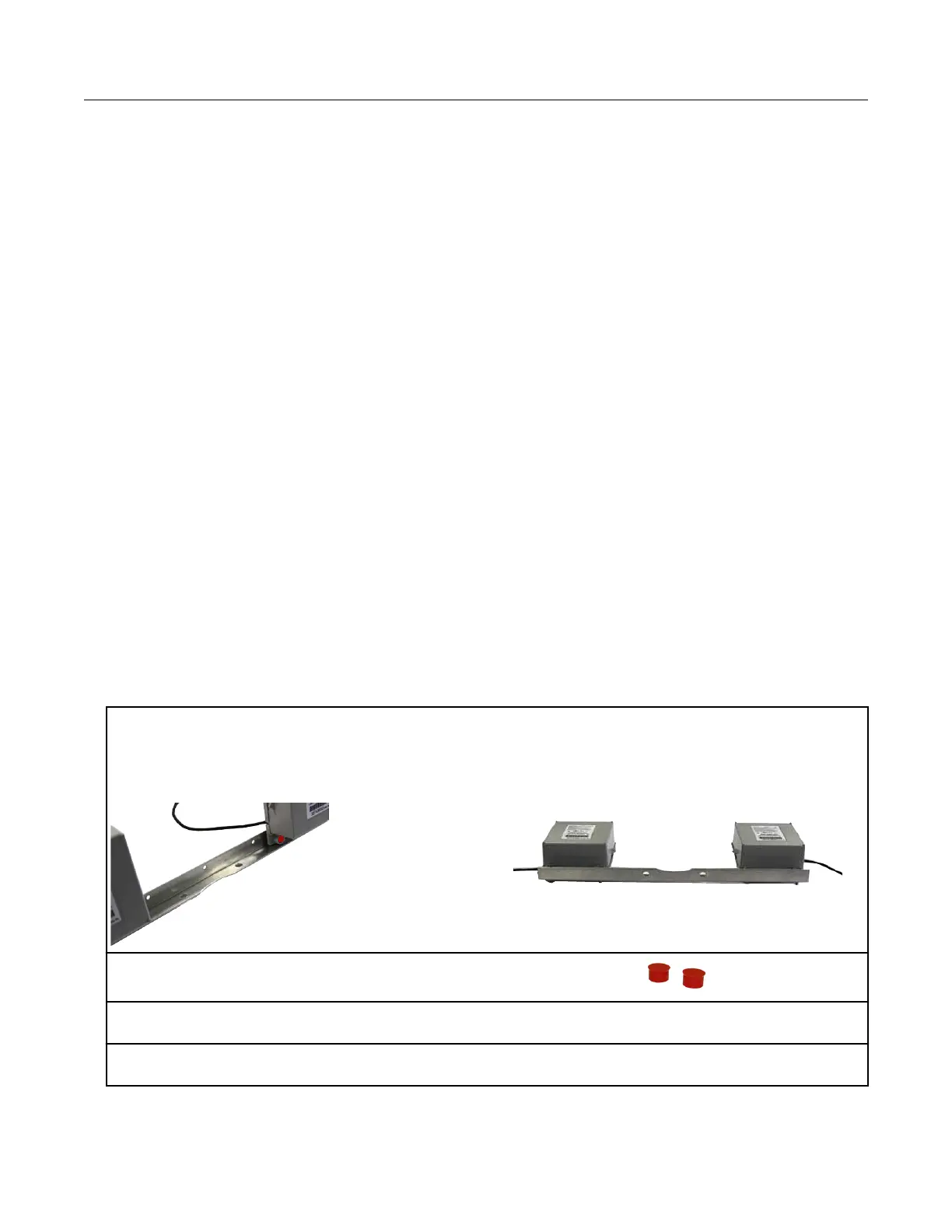

1. Mount a remote ERT module on each end of the mounting rail using the mounting screws
supplied with the ERT modules.
Note: The notch in the mounting rail is the front bottom of the rail. The ERT modules mount to the
back of the mounting rail.
2. Insert tamper seals into the tamper seal
mounting cups on the remote ERT modules.
3. With the corrector facing forward, align the corrector mounting holes with the index drive
mounting holes.
4. Insert the corrector's mounting screws in the front corrector and index mounting holes. Loosely
tighten the front two mounting screws.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 19
Proprietary and Confidential
