Important: Use a crimping tool compatible with gel-connectors. Do not use a standard pliers for
crimping gel-connects. See Using gel-cap connectors to complete wiring connections on page 72.
10. Insert the gel-connected wires into the
threaded gray adapter plate hole.
11. Replace the strain relief and tighten until secure.
Honeywell Instrument programming and requirements
The Honeywell MasterLink SQL software is used to configure Honeywell products.
Important: This information is subject to change without notice. Refer to the Honeywell
MasterLink SQL product documentation to verify the most current information about
programming and configuring the corrector for use with the 100G series remote ERT
module.
Honeywell software settings
1. Connect the interface cable from the Honeywell instrument to a PC loaded with the MasterLink
SQL software.

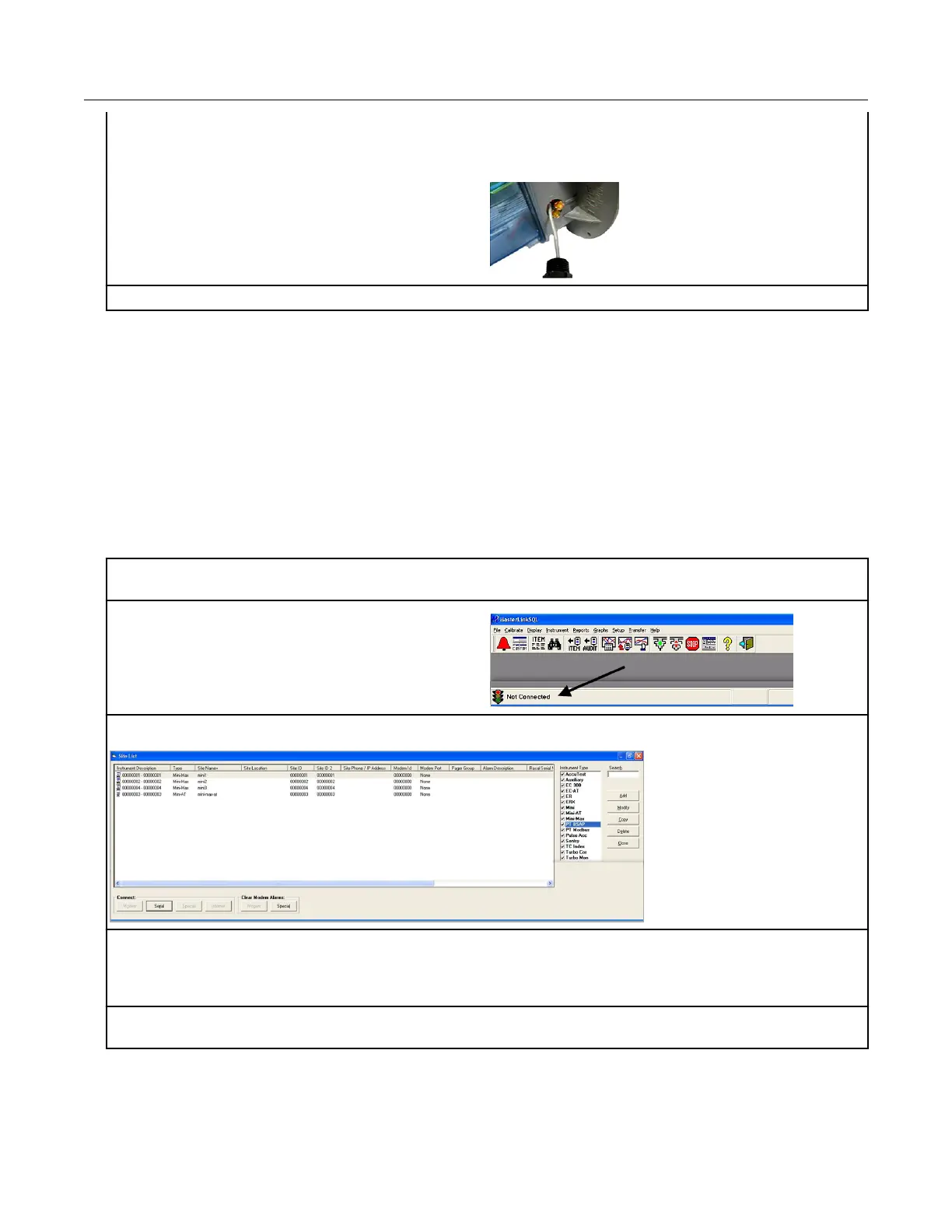

2. Open the MasterLink SQL software. The
software opens and reports a "Not Connected"
status.
The Site List window automatically opens after the software detects an instrument.
3. Select the Honeywell instrument type from the Instrument List on the right of the screen.
Important: You must select the correct instrument type. Selecting the incorrect type causes
communication errors.
4. The status indicator in the lower left corner of the MasterLink SQL software displays the
connection status as Connected (instrument type).
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 49
Proprietary and Confidential
