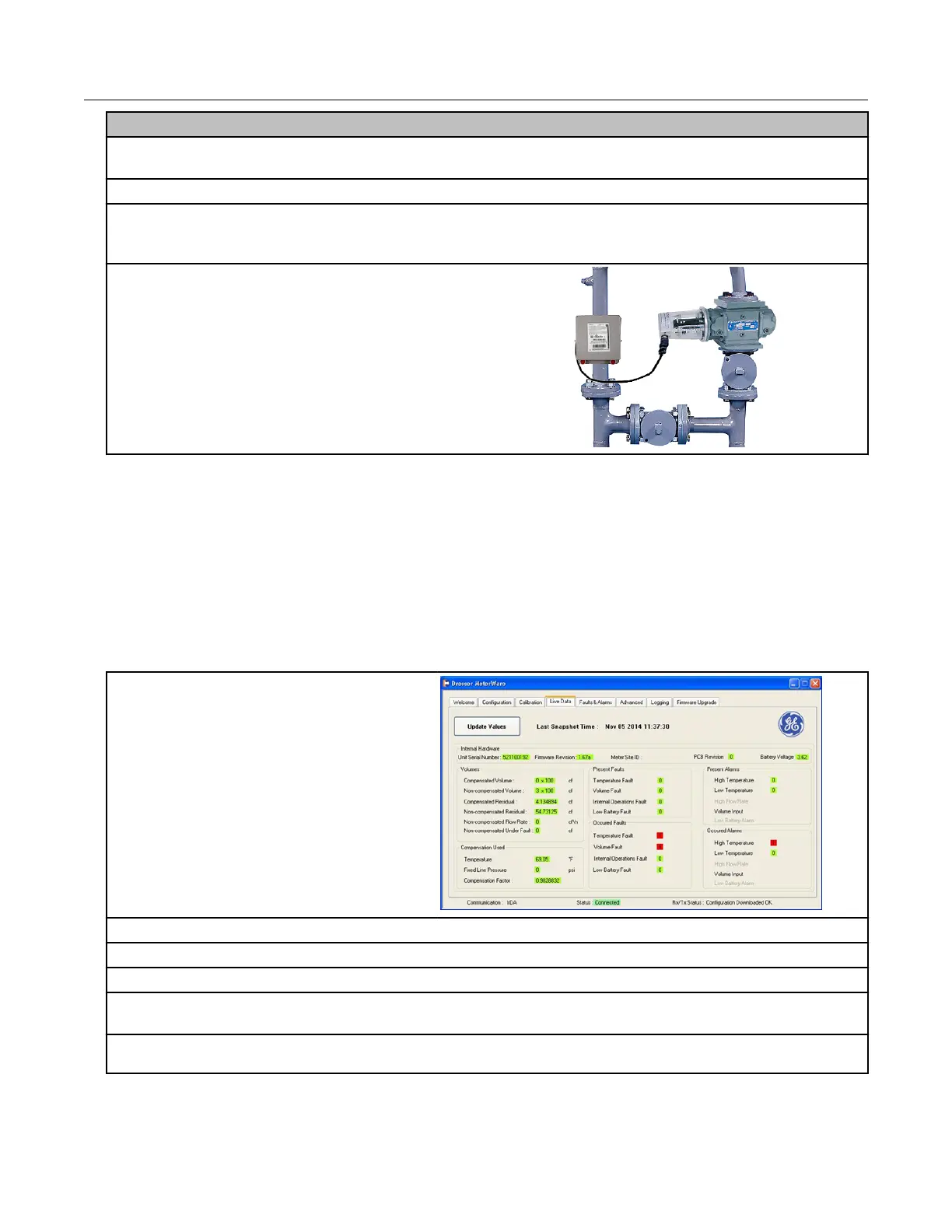

Wiring for direct connection to the IMC/W2
5. Install the 100G series remote gas module backplate using the four screws previously removed
from the module and a Torx T-10 screwdriver.
6. Plug the cable into the pulse output of the index.
Important: Verify the cable tie and gel connectors are inside the module housing and the cable
extends out of the backplate slot. Torque the backplate mounting screws 9 to 12 inch-pounds.
7. Mount the module as required for your
application. Wall and pipe mount options are
described in Mounting the 100G Series Remote
Gas ERT Module on page 8. Additional options
for GE specific mounting solutions are described
in the product specific mounting instructions in
this GE Oil and Gas section.
GE Oil and Gas meter programming and requirements
notes
GE MeterWare software is used to configure the ERT module's index settings.
Important: This information is subject to change without notice. Refer to the GE MeterWare
product documentation to verify the most current information about programming and
configuring the corrector for use with the 100G series remote ERT module.
1. Open the GE Dresser MeterWare
software to change the remote ERT
module settings.
2. Select the LiveData tab.
3. Confirm the firmware version and current index settings.
4. If you change a variable, click Update Values to complete the change.
5. Select the Configuration tab to view the volume configuration or confirm the volume configuration
and pulse settings. Use the drop-down lists to change the variable's setting.
Note: You must click OK to complete any setting changes.
Testing IMC or W2 communication with GE User Terminal (UT) communication
software
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 41
Proprietary and Confidential
