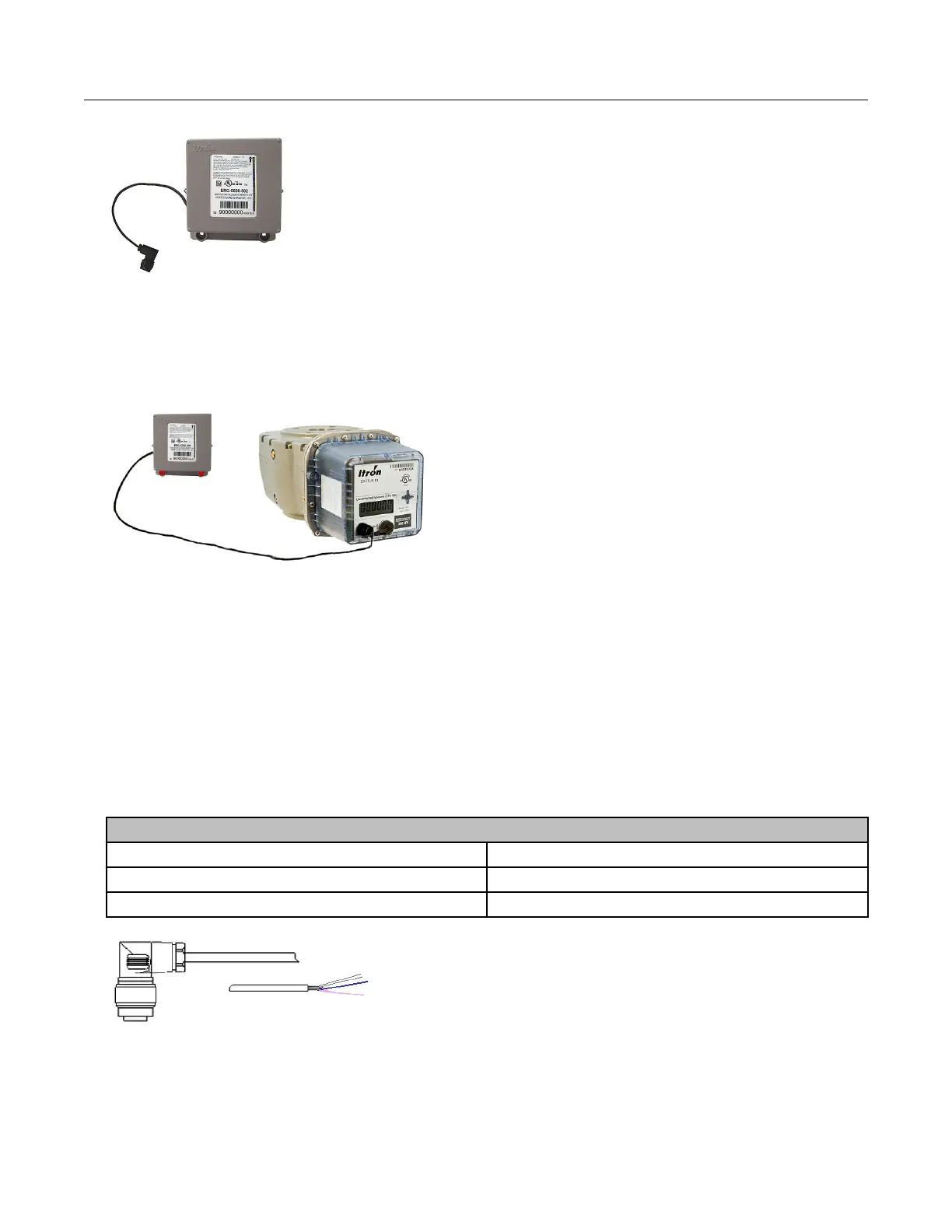

Itron product mounting instructions
Mount the remote ERT module following the mounting instructions in Mounting the 100G
Series Remote Gas ERT Module on page 8.
Itron mechanical and wiring installation instructions
Note: See Diaphragm Meter Installation on page 65 for Itron A-Series (A1, 305, 400, 675,
and 1000A) meter installation instructions.
DATTUS fM2 and fM3 meters have two configurable outputs usable as pulse outputs to the
remote module. Connecting the module following the information in this section requires a
pulse output cable, installed by Itron. Pulse output cables are available in 10-foot and 20-
foot lengths. Factory-installed cables have a Binder connector on one end and three bare
wires on the opposite end.
DATTUS meter wiring accessories (available from Itron)
Accessory Itron part number
Pulse output cable - 10 ft. 442461-009
Pulse output cable - 20 ft. 442461-010
Pulse output cable
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 53
Proprietary and Confidential
