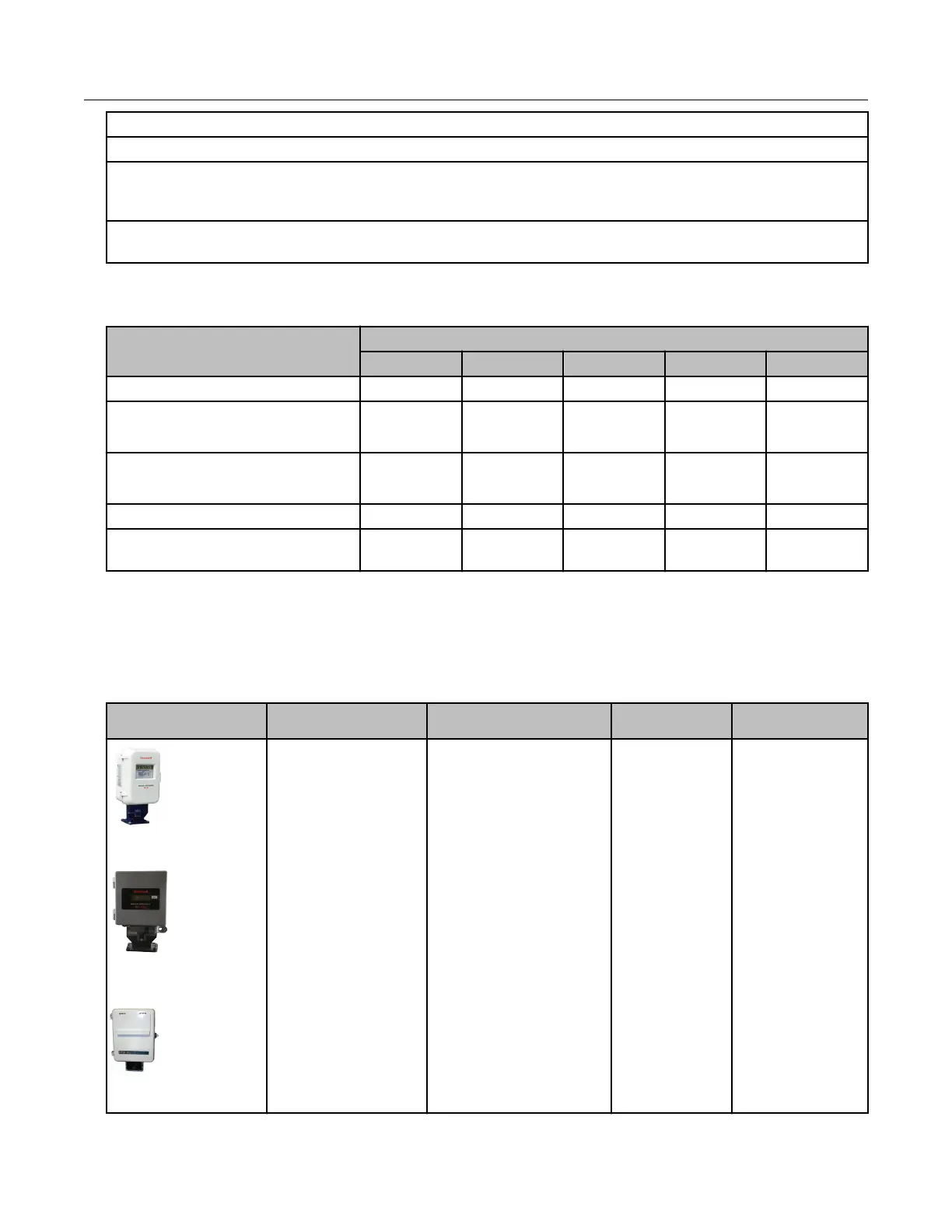

1. Connect the IMC/W2 to the PC using the serial cable.
2. Using the GE Dresser User Terminal (UT) communications software, connect to the IMC/W2.
Read the uncorrected or corrected count number on the remote ERT module with the Itron endpoint
reading device. Compare the IMC/W2 uncorrected or corrected amounts to those from the remote
ERT module.
4. Input approximately 20 pulses to the remote module. Verify the uncorrected or corrected counts
on the IMC/W2 and the remote module are the same.
Programming notes
The following table lists pulse rates for the pulse output of compatible GE indexes.
Index style
Meter size
8C-11M 16M 16M-56M 1.5-11M 16M-102M
B3 CTR index 10 100
B3 TC index
(Meter built 1/1999 and beyond)
10 100
B3 TC index
(Meter built prior to 1/1999
50 500
LMMA CTR index 10 100
LMMA TC or Series 3 CTR/TC
index
100 10
Honeywell Instrument installation
This section provides the instructions to install the 100G remote ERT module on the
following compatible Honeywell Instruments.
Meter model Meter notes 100G remote module type Itron part
number
ERT module notes
Mini-AT
Mini-Max
EC-AT
Pressure and
temperature electronic
volume instruments.
Instruments must have
a Form A board, Form C
is NOT supported. Item
#56 Pulse Scaling
Factor must be 2.0. Item
#96 Cor Vol Display
must be 7, 6, 5, or 4
digits (1, 2, 3, or 4
blanks). Item #115
Output Pulse Code must
be set at 1, 2, or 4. For
connection to Mini-Max
only, Item #115 must be
set at 1 or 2. Item 124
wake up setting on
Honeywell corrector
must be set to 1.
Compatible corrector
firmware versions are
2.5020 and 2.73.
100G
100G Datalogging
100G Datalogging FN
100G DLS Datalogging
100G DLT Datalogging
ERG-5000-502
ERG-5002-502
ERG-5003-502
ERG-5006-502
ERG-5007-502
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 42
Proprietary and Confidential
