ITRON 100G DLS Datalogging User Manual

Sensus meter wiring

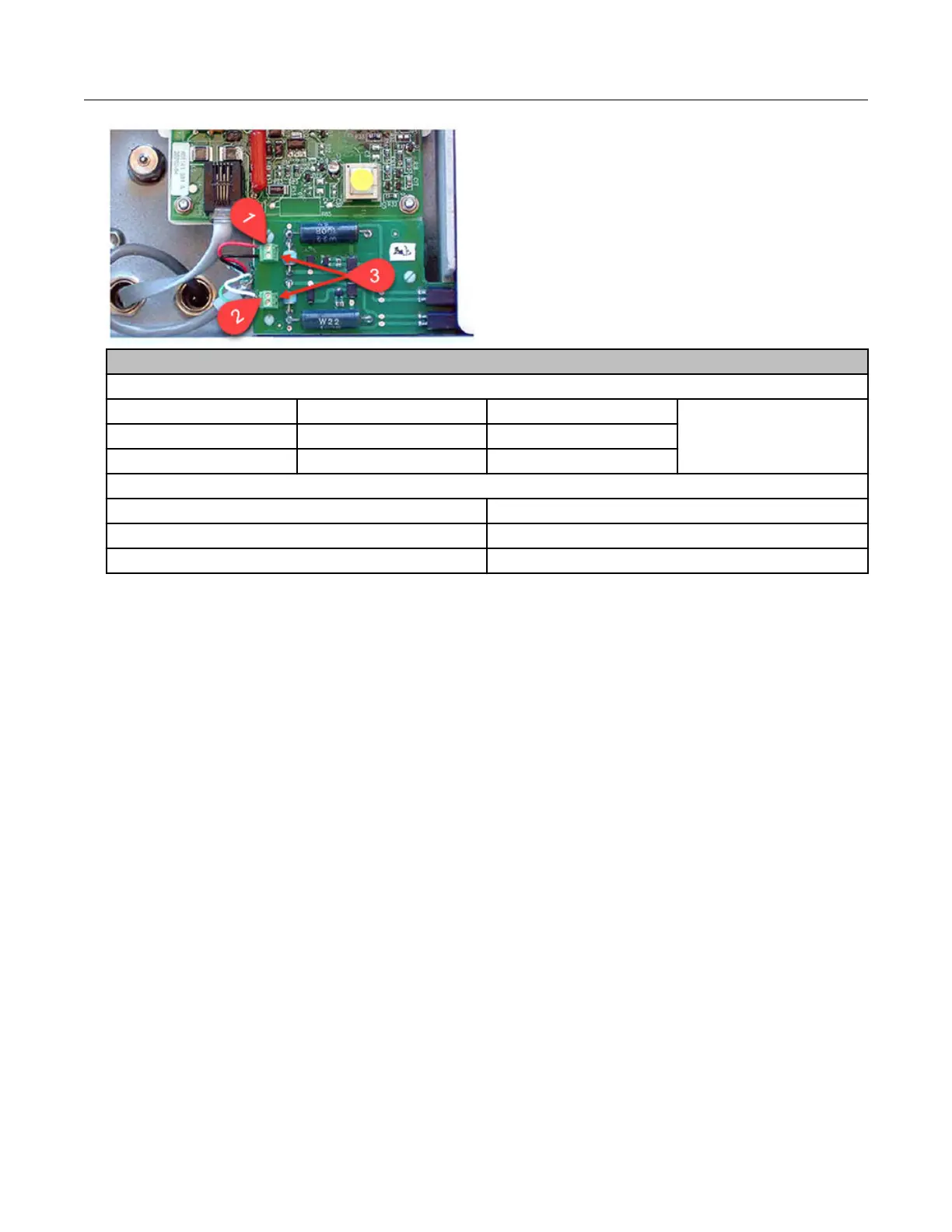

Sensus Sonix 2000 meter pulse output options
Option (1) Pulse 1 (+) (2) Pulse 2 (+)
(3) Ground (-)
1 Uncorrected Corrected
2 LCD index volume Alarm
Sensus Sonix 600 or 880 meter wiring
Meter wire ERT module wire
Red White and blue
Black Red
For more information about programming wiring parameters, contact Sensus North
American Gas Customer Service.
Sensus meter programming and requirements notes
Using the SonixCom software, configure the Sensus Sonix meter parameters with the
following the Sensus pulse output settings.
• 1 pulse per 10 cf
• 1 pulse per 100 cf
• 1 pulse per 1000 cf
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 64
