6. Connect the cable to the pulse output on the
IMC/W2 or MC2.
GE Oil and Gas mechanical and wiring installation
instructions
This section describes mechanical installation to the GE Oil and Gas meter and wiring
connections.
D800/D1000 wiring and installation

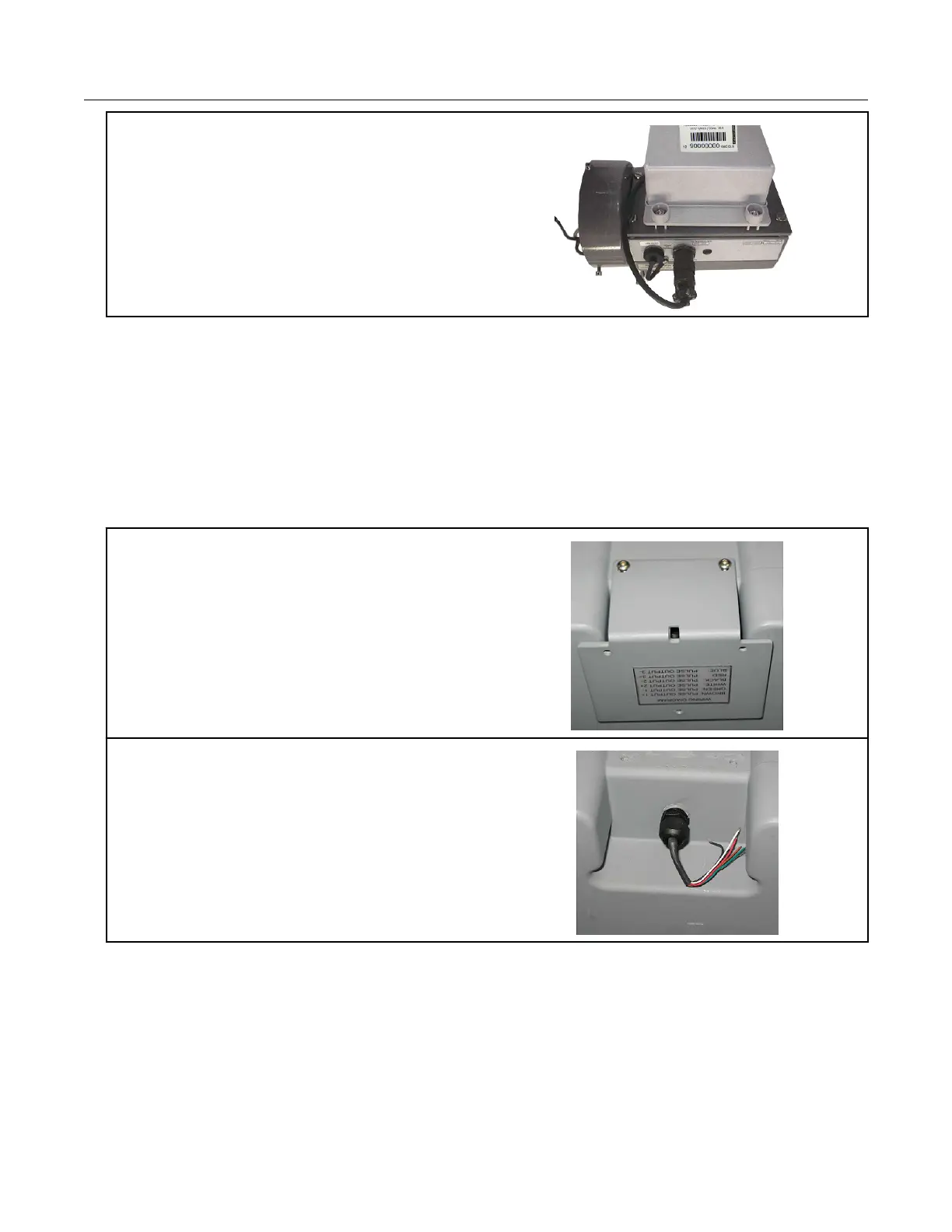

1. Loosen and remove the two screws holding
the mounting brackets to the meter.
2. After the brackets are removed, the pulse
output cable is visible.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 36
