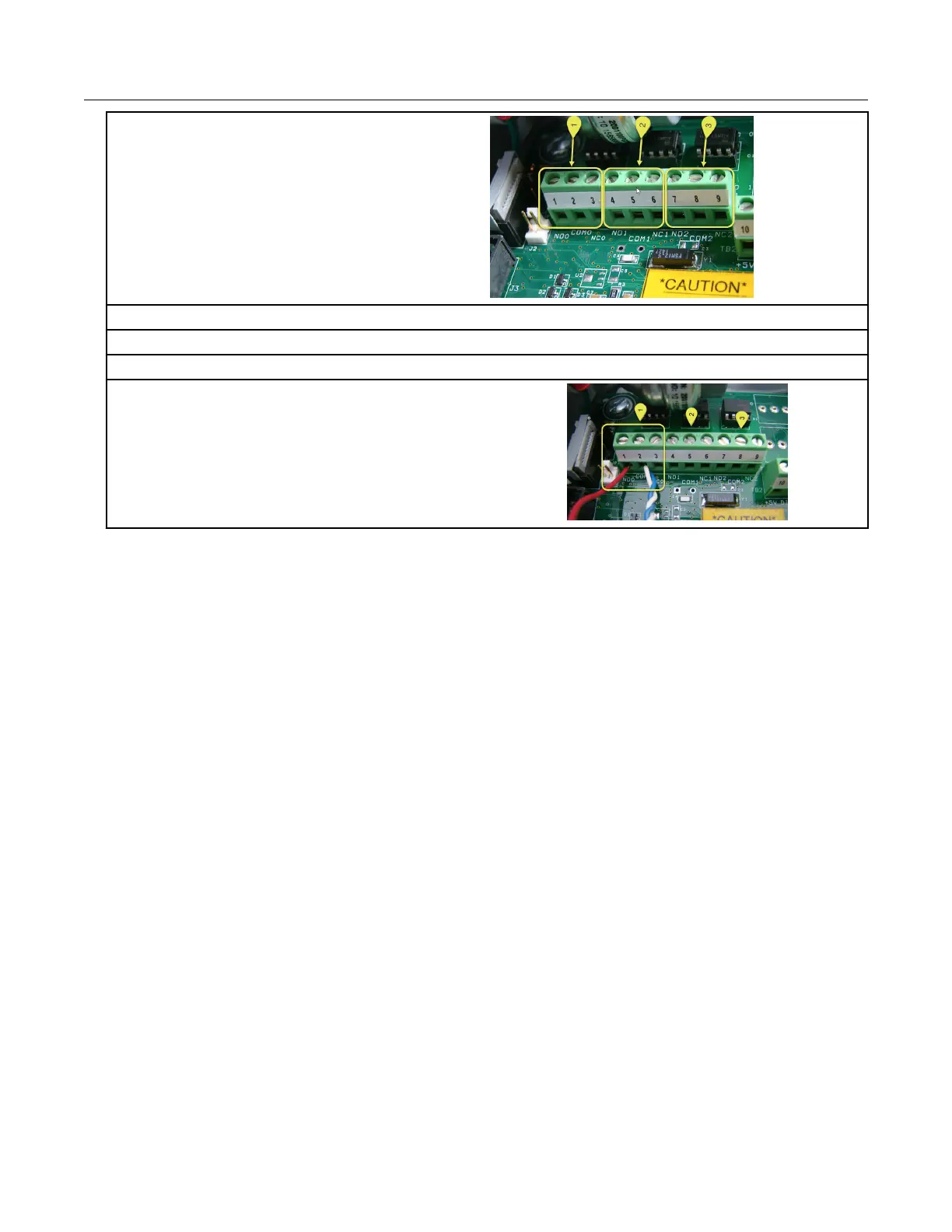

9. Pull the lead wires through the compression
connector until there is adequate wire to reach
the K1 terminal port.
1. K1
2. K2
3. K3
10. Tighten the compression connector.
11. Connect the red remote ERT module wire to pin 1 on the K1 terminal port.
12. Twist the remote ERT module's blue and white wires together.
13. Connect the twisted blue and white wires to
terminal 2 on the K1 terminal port.
Eagle Research corrector programming and requirements
notes
Important: This information is subject to change without notice. Refer to the Eagle
Research product documentation to verify the most current programming and configuration
information for the 100G series remote ERT module.
Using Itron 100G series remote ERT modules with Eagle Research volume correctors
requires Eagle Research Field Manager software configured with the parameters for your
model of Eagle Research corrector.
Specific Meter Manufacturer Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 22
Proprietary and Confidential
