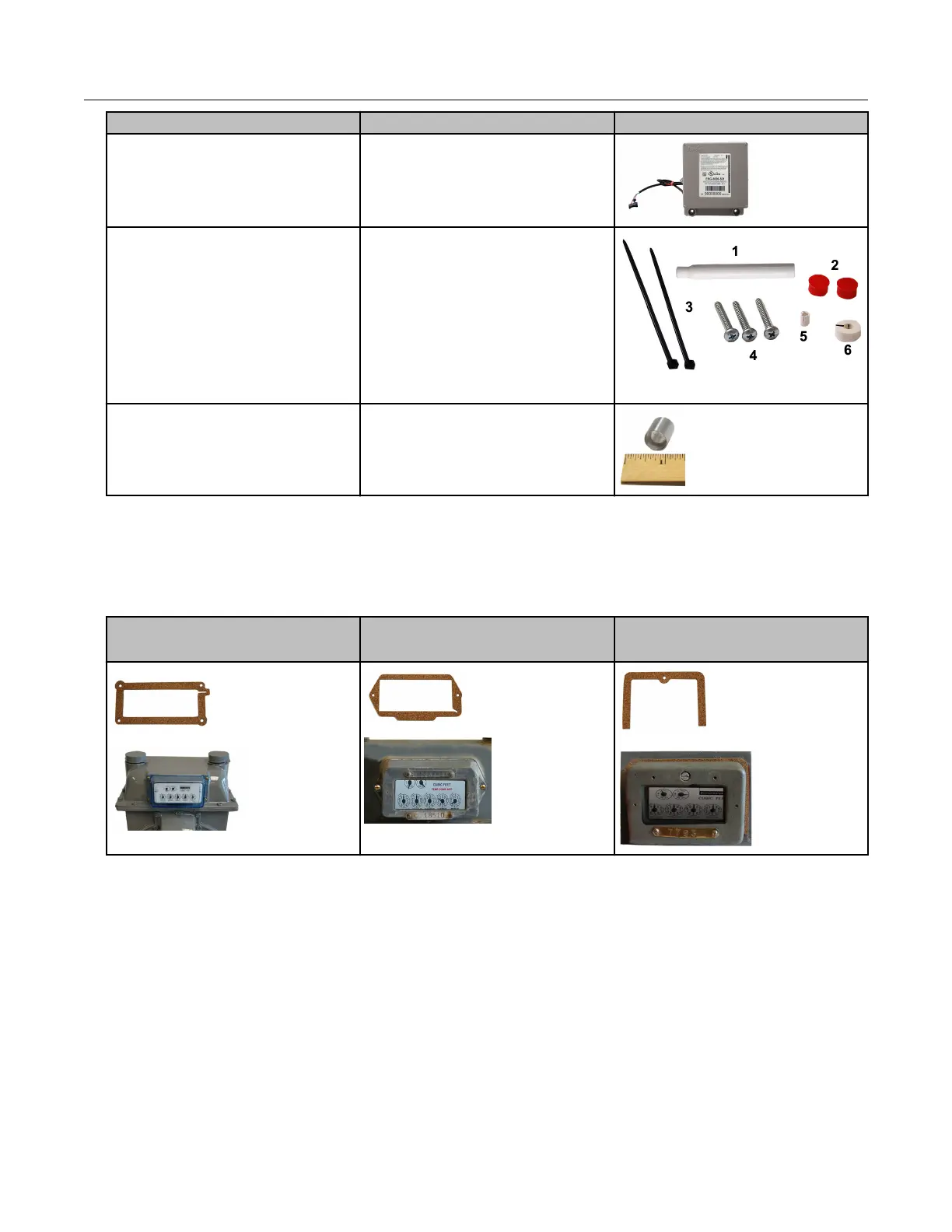

Itron part number Description
ERG-500X-501 100G remote ERT module with 2.5'
encoder cable
CFG-0081-001 Remote mount encoder kit
1. acetone applicator stick
2. tamper seals
3. cable ties
4. mounting screws
5. magnet hub spacer
6. magnet hub
013-1723-112 Encoder spacing tool. Use the Encoder
Spacing Tool to ensure that the
encoder mounts the correct distance
from the magnet hub on the meter
index.
The Itron replacement index cover gaskets shown below are thicker than standard gaskets
and have a special slot to accommodate the encoder cable. Gaskets are designed for
Schlumberger/Sprague model 675 and 1000 commercial diaphragm meters. These gaskets
may be incompatible on meters from other manufacturers; alternate cable relief procedures
may be necessary.
4-hole front cover gasket:
Itron part number FAB-0014-003
2-hole front cover gasket:
Itron part number FAB-0014-002
1-hole front cover gasket:
Itron part number FAB-0014-001
Product mounting installation instructions
For remote ERT module mounting with the diaphragm meter, see Mounting the 100G Series
Remote Gas ERT Module on page 8.
Diaphragm Meter Installation
100G Series Gas ERT Module Installation Guide, Remote Mount TDC-0824-017 66
