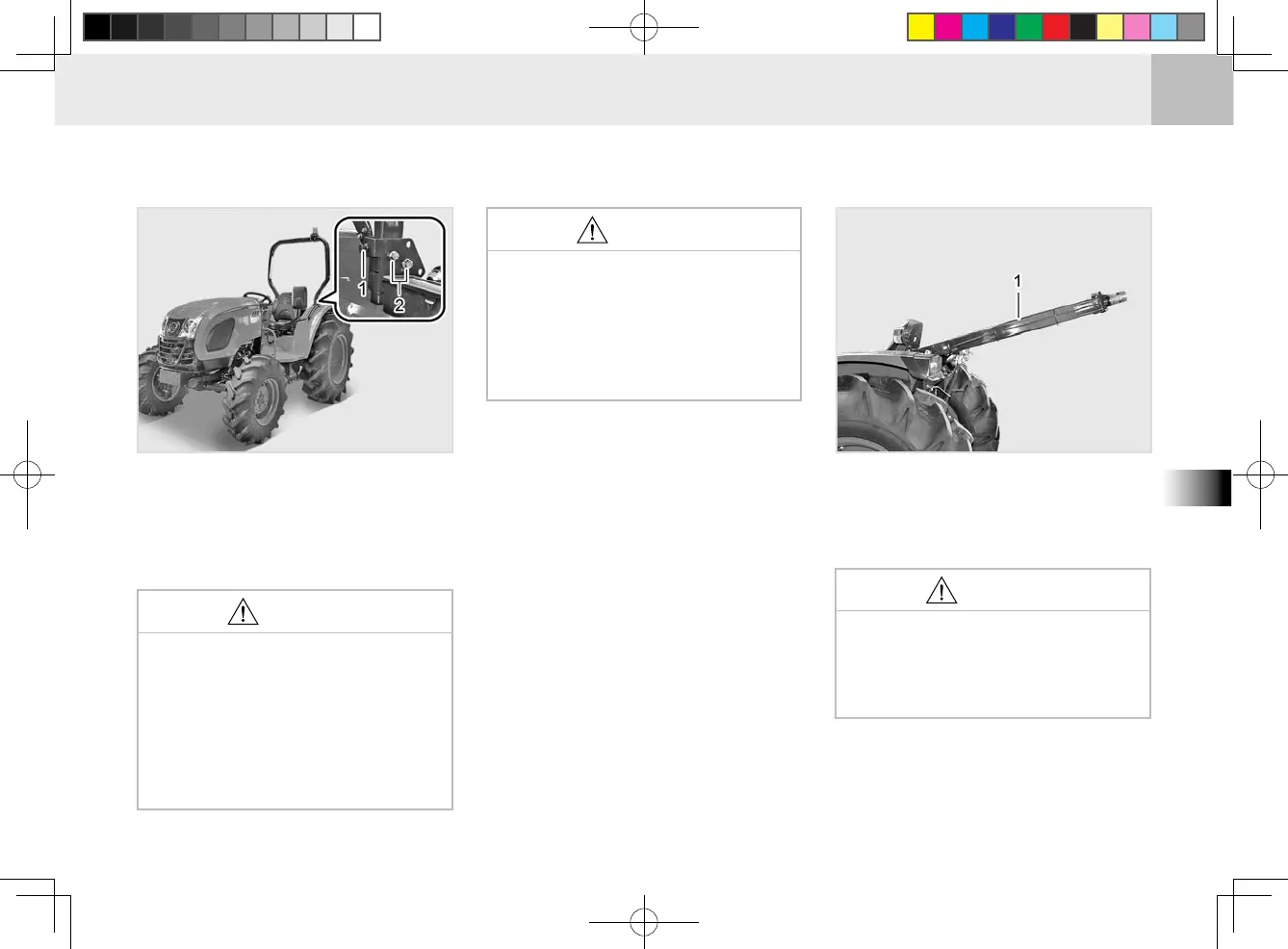

(1) Knock Bolt (2) Mounting Bolt
1. Unscrew the knock bolt. Then, loo-
sen the mounting bolts.
HOW TO FOLD THE ROPS
td2O512a
CAUTION
You should always stop the
engine, remove the key and
set the parking brake before
raising or folding the ROPS.
Always perform such tasks
from a safe and stable posi-
tion at the rear of the tractor.
•
•
CAUTION
It is very dangerous to drive
with the ROPS folded. Fold the
ROPS only when there is abso-
lutely no possibility for roll over.
If the situation changes, raise
the ROPS upright immediately.
•
2. Fold the ROPS.
(1) ROPS
3. Align the bolt holes and fit the
mounting bolt to them.
td2O513a
CAUTION
To avoid accidents:
Hold the ROPS tightly with
both hands and fold the ROPS
slowly and carefully.
•
