Slow-blow fuse
60A
The bulbs and their capacity used
in this tractor are listed in the below
table. This section only describes
procedures the users can handle.
REPLACING BULB (AQ)
Sequence
Bulb Capacity
1
Headlamp
35W/35W
2
Position lamp (Front)
5W
3
Stop/Position lamp (Rear)
21W/5W
4
Turn signal lamp
21W
5
Work lamp
21W
6
Instrument
cluster
Indicator
Charging
warning
light
3W
Others 1.4W
7 Backup lamp 10W
The slow-blow fuse is to protect
electric devices and wirings. If the
ignition, preheat, charge or main fun-
ction is faulty, nd and move its cau-
se and replace the fuse with a new
one.
IMPORTANT
Using a non-approved slow-
blow fuse can damage electrical
systems in the tractor severely.
Refer to the chapter “Trouble-
shooting” in this manual or
contact your local KIOTI Dealer
for specic information dealing
with electrical problems.
•
•
HEADLAMP
1. Turn the key switch to the “OFF”
position and open the hood.

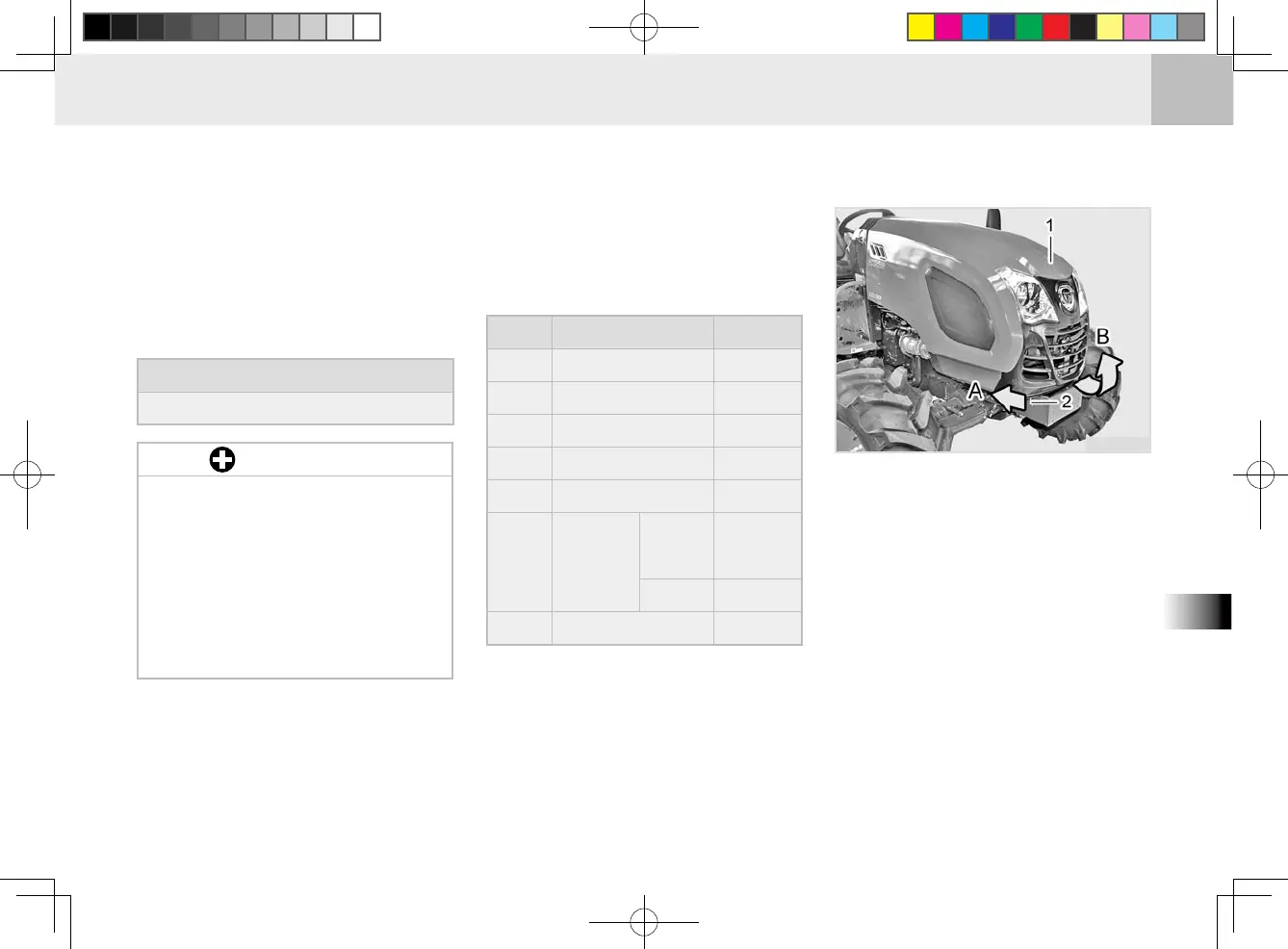

td2O701A
(1) Hood (2) Opening Knob
(A) Pull (B) Open
