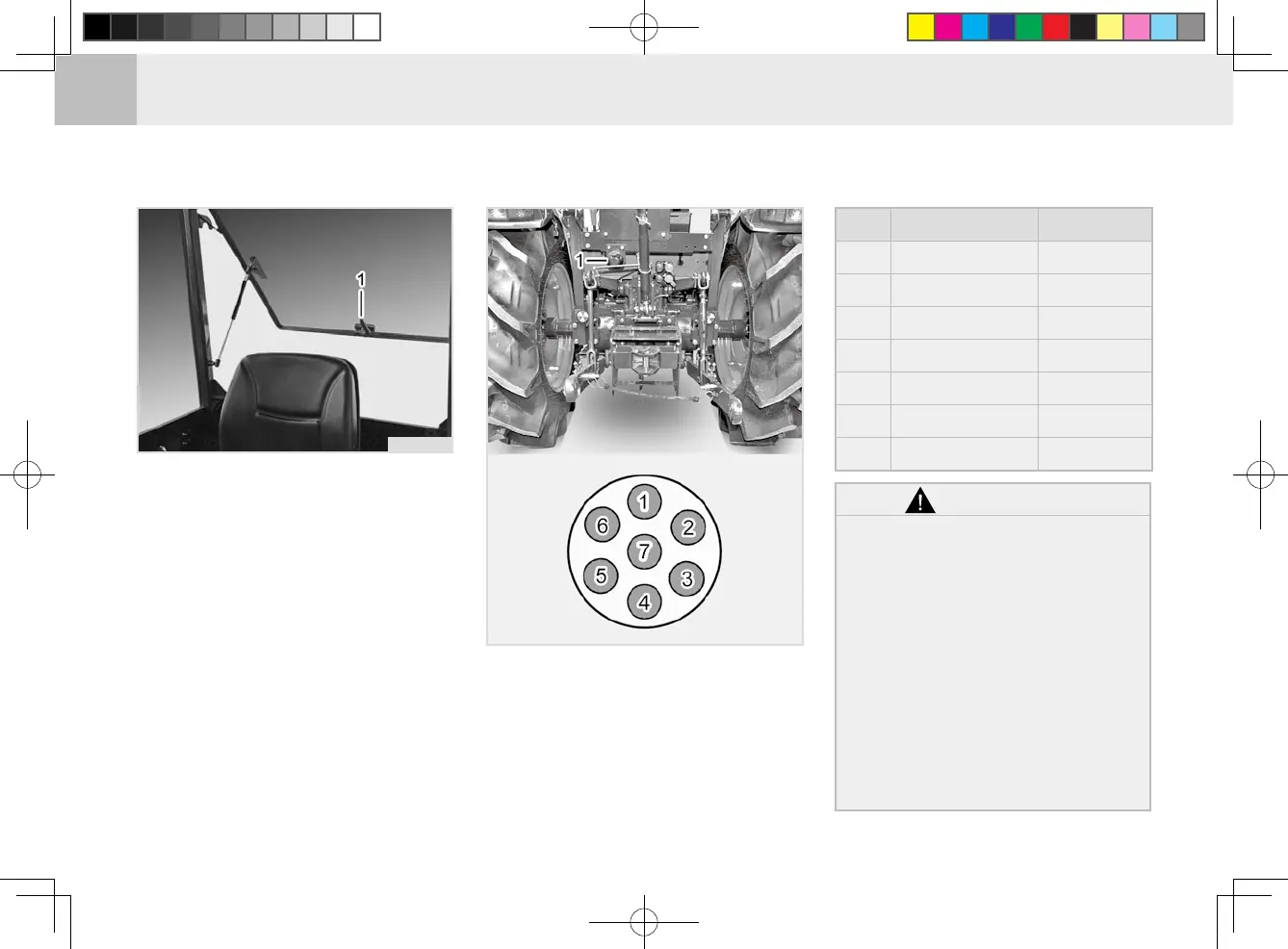

(1) Handle Of Rear Window
LOCATION AND METHOD OF OPE-
NING OF EMERGENCY EXITS
In emergency, open the rear window
and escape from the cabin.
td2O488A
td2O462A
7-PIN SOCKET (OPTIONAL)
The 7-pin socket is installed on the
rear left side of the tractor.
This supplies power to the brake
lamps, turn signal lamps, and posi-
tion lamps of the trailer.
(1) Power Connector
No. Circuit Color of wire
1 Turn Signal (LH) Y
2 Spare L
3 Ground W
4 Turn Signal (RH) G
5 Tail light (RH) Br
6 Stop lamp R
7 Tail light (LH) B
WARNING
When driving on a road with an
implement which has exterior lam-
ps, such as a trailer, make sure to
turn on those lamps by connec-
ting them to the 7-pin socket in
order to prevent an accident.
Make sure to check for proper
operation after connecting the
7-pin socket to the trailer. It may
not operate depending on the trai-
ler specifications. Consult your
local KIOTI Dealer for this issue.
•
•
