WARNING
If stopping the engine while
driving, the steering perfor-
mance can become deterio-
rated due to loss of hydraulic
power, resulting in a severe
accident. Never stop the engi-
ne while driving.
Keep your hands on the stee-
ring wheel after turning to
return the steering wheel back
to the straight-ahead position.
This steering wheel is not a
self-return type. Taking your
hands off the steering wheel
during driving can lead to a
serious accident.
•
•
The 3-point hitch can be controlled by
the position control lever.
1. The position control lever is used
to lift or lower the lifting arm (lower
link) of the 3-point hitch.
2. Pushing the lever forward lowers
the lower link while pulling the le-
ver backward lifts the lower link.
3. The height of the lower link is pre-
cisely controlled proportional to the
position of the lever.

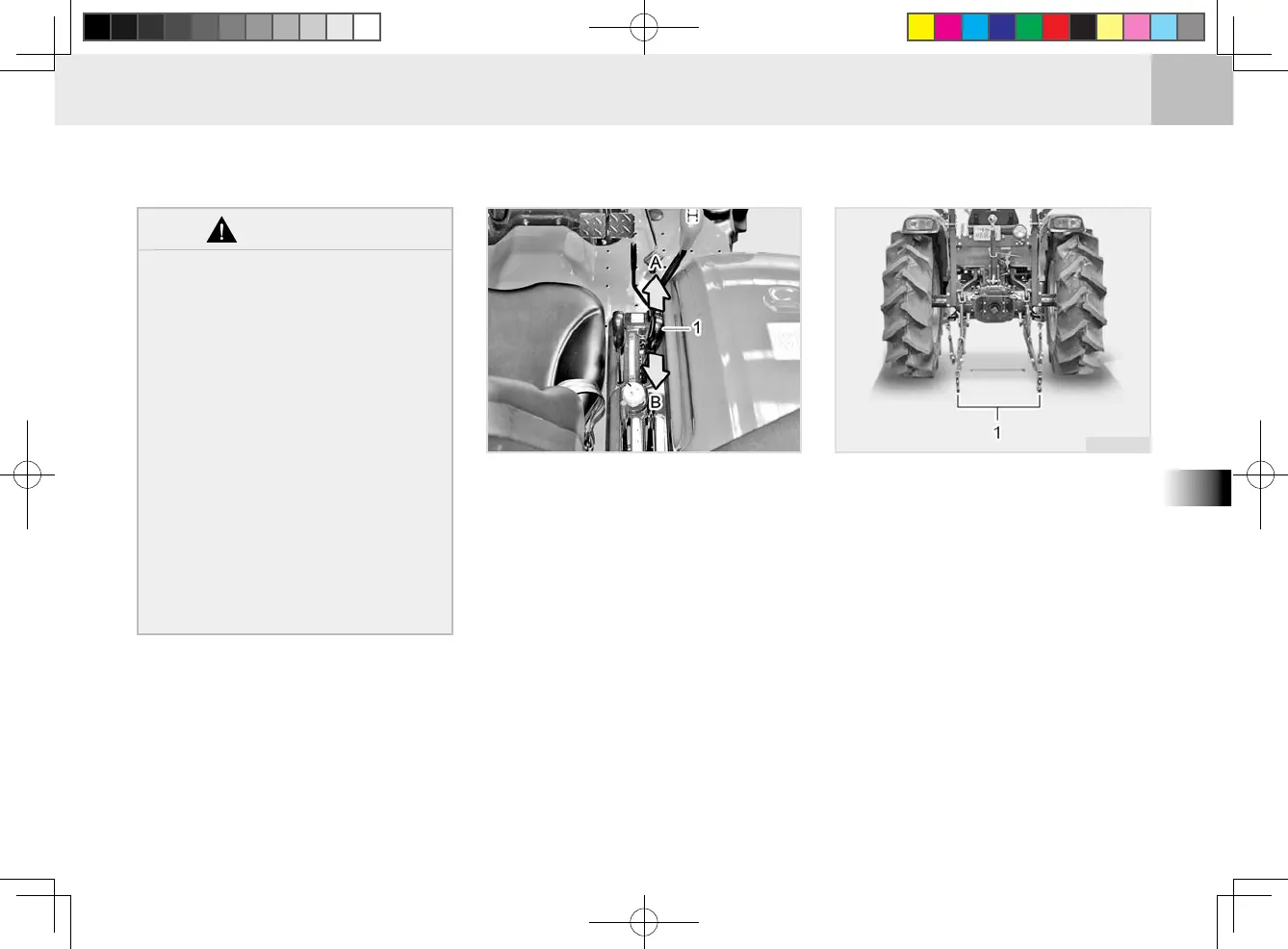

(1) Position Control Lever
(A) Lowering (B) Lifting
td2O519a
3-POINT HITCH CONTROL POSITION CONTROL
(1) Lower Link
td2O520a
4. The l ower lin k is li fted by the
hydraulic energy of the tractor while
it is lowered by potential energy of
its own weight. Therefore, the im-
plement cannot be lowered by the
hydraulic pressure.
5. Therefore, the implement attached
to the lower link may be lifted by
protrusion on the ground when it is
lowered to the ground. It is called
as "oating."
