Four speeds can be selected by mo-
ving this main shift lever in “H” sha-
ped path. As the gear is a synchro-
mesh type, shift operation is possible
with the clutch pedal depressed du-
ring driving.
In total, 8 forward driving speeds and
8 reverse driving speeds are provi-
ded by combination of the main shift
lever (4 speeds), range shift lever (2
speeds), shuttle shift lever.
(1) Range Shift Lever
High speed, mid speed, low speed
and creep speed can be selected
by the range shift lever. Make sure
to shift the range shift lever after the
tractor is completely stopped by de-
pressing the clutch pedal.
If the lever is not moved freely or
makes abnormal noise, put the lever
into the neutral position, engage and
disengage the clutch, and then try to
shift the lever.
RANGE SHIFT LEVER SHUTTLE SHIFT LEVER
(1) Shuttle Shift Lever
F: Forward Driving R: Reverse Driving
N: Neutral
"This lever is to select the forward
and reverse driving direction. As the
gear is a synchromesh type, shift
operation is possible with the clutch
pedal depressed. Put this lever into
the neutral position when the tractor
is not driven.
For the hydraulic shuttle model (H-
Shuttle), shift operation is possible
with the clutch pedal released during
driving at a low speed. Avoid shifting
during driving at a high speed."
td2O438A td2O439B td2O440A

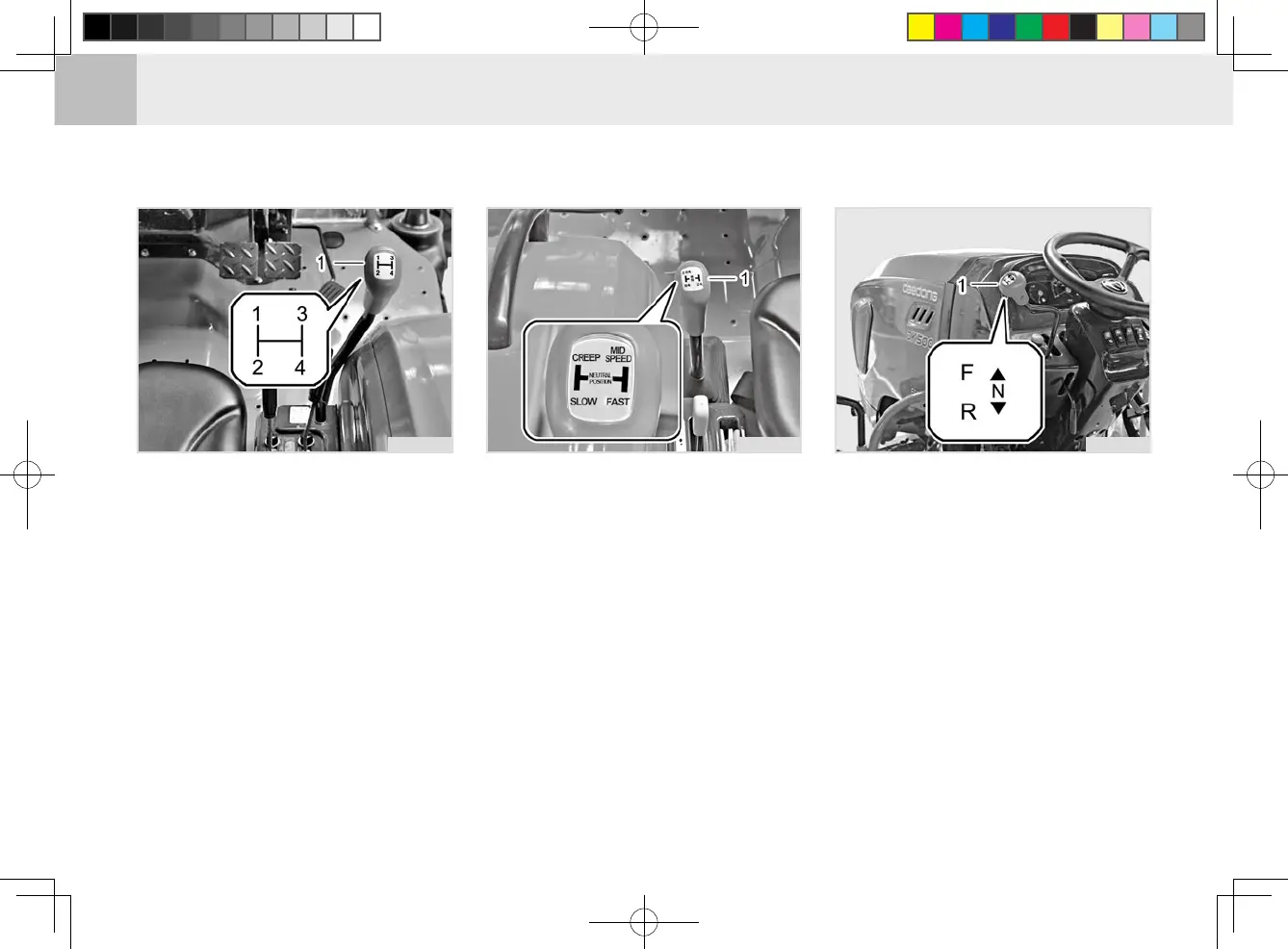

(1) Main Shift Lever
MAIN SHIFT LEVER
To Next Page
