(1) Bevel Gear Case (LH/RH)
(1) Position Control Lever Shaft Housing
(1) Front Bracket (Axle Pivot)
(2) Rear Bracket (Axle Pivot)
(1) Top Link Hold Pin
(1) Throttle Pedal
td2O419A
td2O716A
td2O418A
h61O753A td2O717A

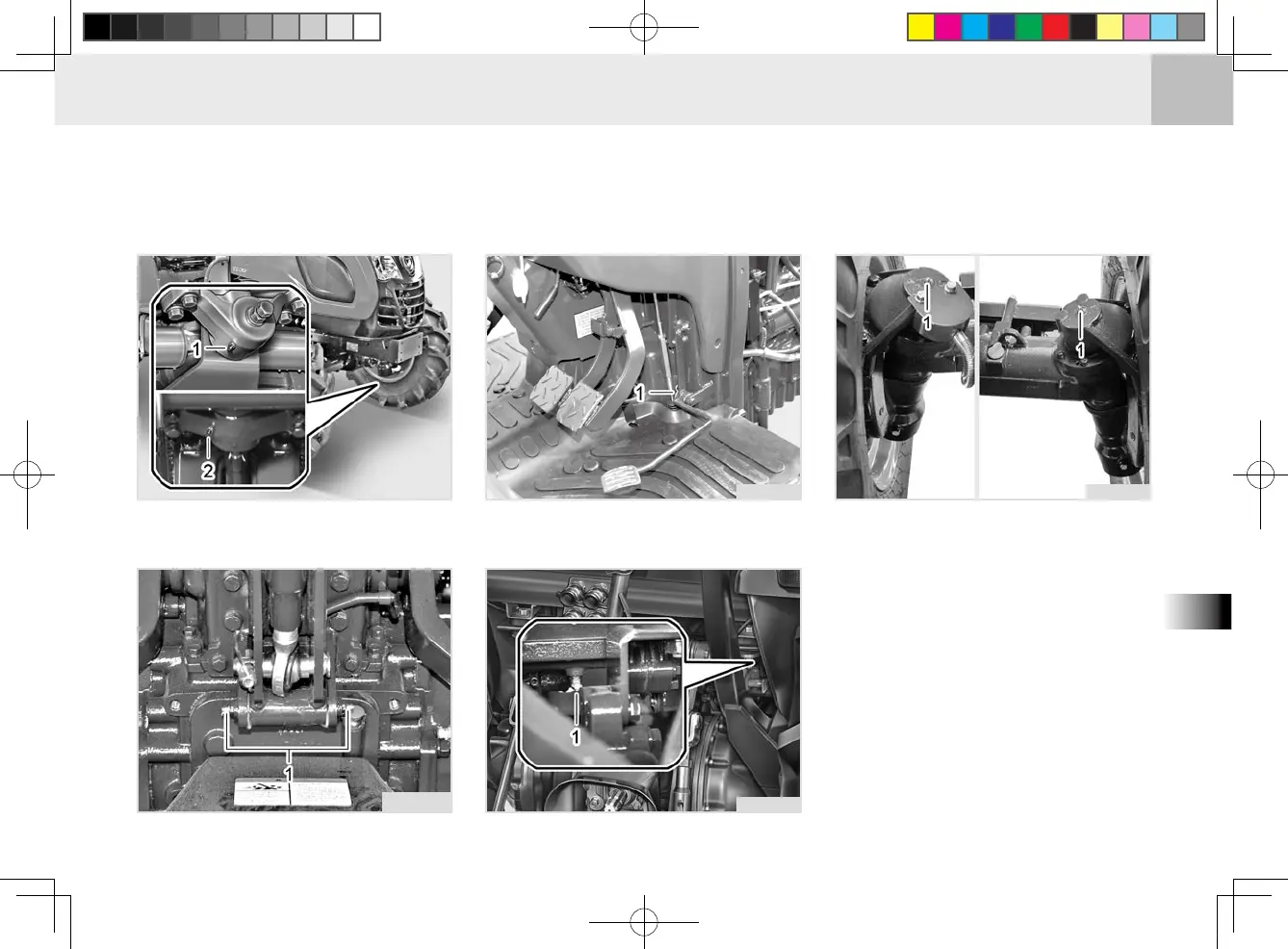

Apply quality multi-purpose grease to the locations specied in the following gure at every 50 hours of use or when
necessary. Also, record the operating hour on every application.
LUBRICATING GREASE NIPPLE (P)
