3-POINT HITCH IMPLEMENT AND LOADER OPERATION
(1) Top Link (2) Set Pin
(3) Lynch Pin (4) Top Link Hook
1. Install the top link to the desired
hole, install the set pin and lynch
pin securely.
2. Tighten the lock nut on the top link
securely after adjusting top link
length.
1. Adjust the check chain to control
horizontal sway of the implement.
It is also used to set the implement
on the back of the tractor in center.
2. To adjust the check chain, pull out
the turn buckle and adjust it until
the desired transverse moving di-
stance is obtained.

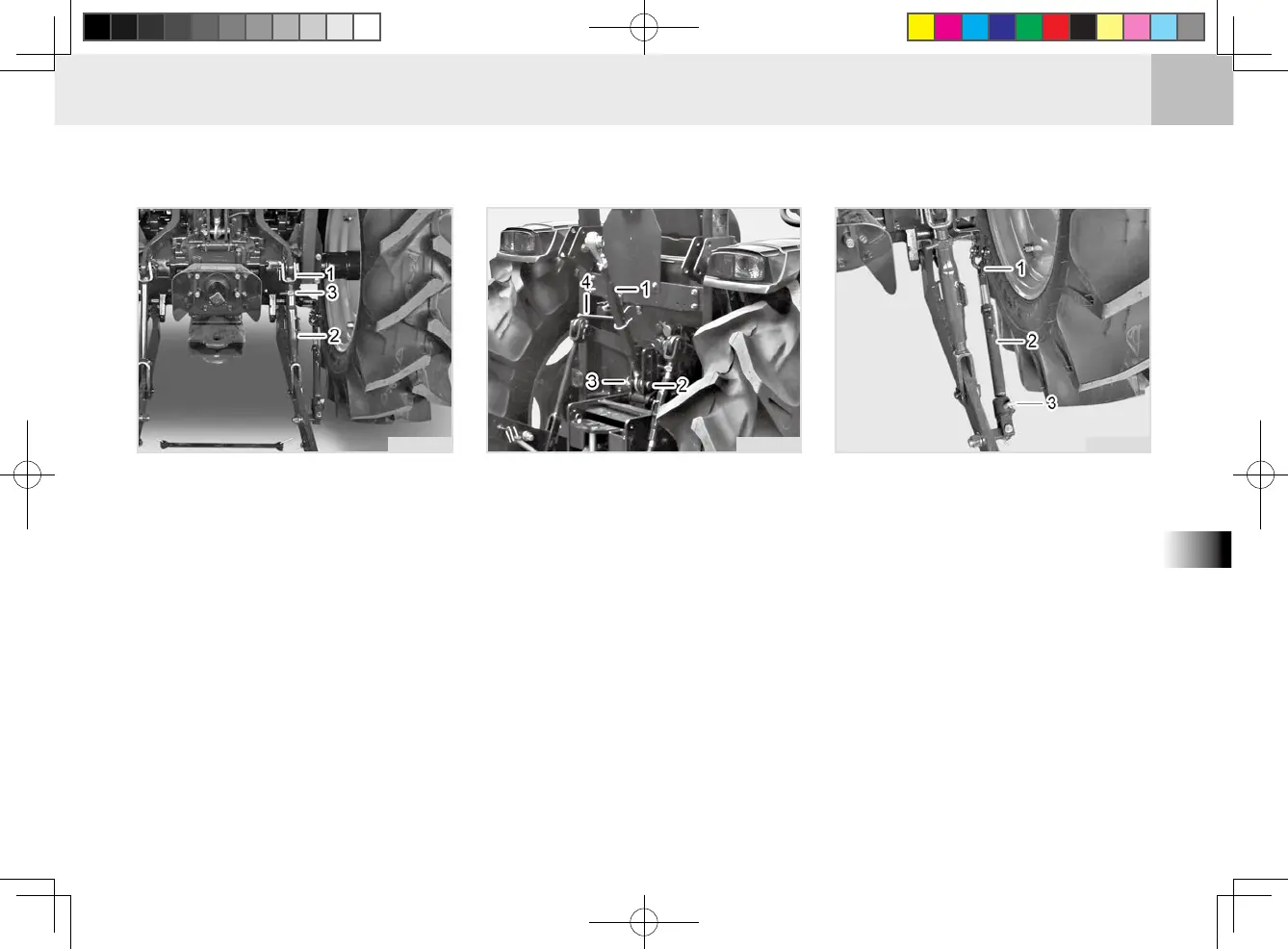

td2O527A td2O601A td2O529A
ADJUSTMENT OF TOP LINK ADJUSTMENT OF CHECK LINK
(1) Check Chain (2) Turn Buckle
(3) Set Pin
(1) Lift Rod (2) Turn Buckle
(3) Lock Nut
1. Adjust the implement balance by
turning the lift rod turn buckle.
2. After adjustment, secure it with the
lock nut.
ADJUSTMENT OF LIFT ROD
