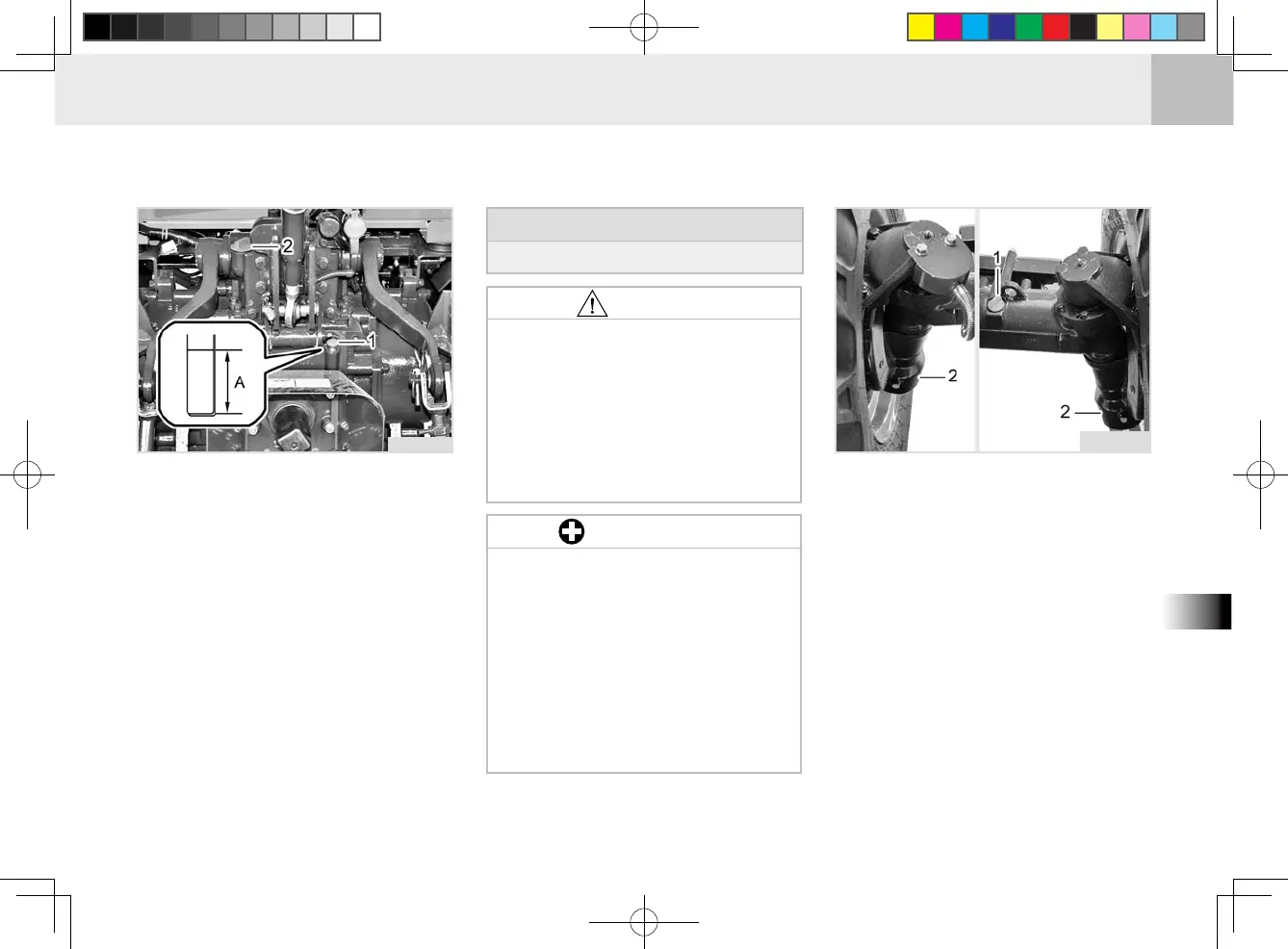

(1) Oil Filler Plug (2) Drain Plug
1. Remove the drain plugs from the
front axle case (LH/RH) and front
axle support to drain oil.
2. After draining, reinstall the drain
plugs securely.
3. Remove the bleeding plug from the
front axle case and add oil through
the ller hole.
td2O714A
CHANGING FRONT AXLE CASE
OIL (N)
IMPORTANT
To prevent serious damage to
the hydraulic system, use only
a KIOTI genuine lter.
Do not operate the tractor im-
mediately after changing tran-
smission uid. Run the engine
at medium speed for a few
minutes to prevent damage to
the hydraulic system.
•
•
(1) Oil Dipstick (2) Oil Filler Plug
(A) Oil Level Is Acceptable Within This Range
5. Apply a thin lm of clean oil onto
the O-ring of a new lter.
6. Tighten the lter until it touches the
mounting surface. Then, tighten
the lter for a half turn further with
a hand.
7. After installing a new lter, run the
engine for a few minutes and stop
it.
8. Check the oil level again and add
more oil to the specied level.
td2O704A
Oil Capacity
11.36 U.S.gal. (43 L)
CAUTION
To avoid injury:
Be sure to stop the engine
before changing the fluid or
replacing the lter.
Cool down the uid sufcien-
tly. You can get burnt by hot
uid.
•
•
To Next Page
