(1) Lifting / Lowering lever
(A) Lowering (B) Lifting

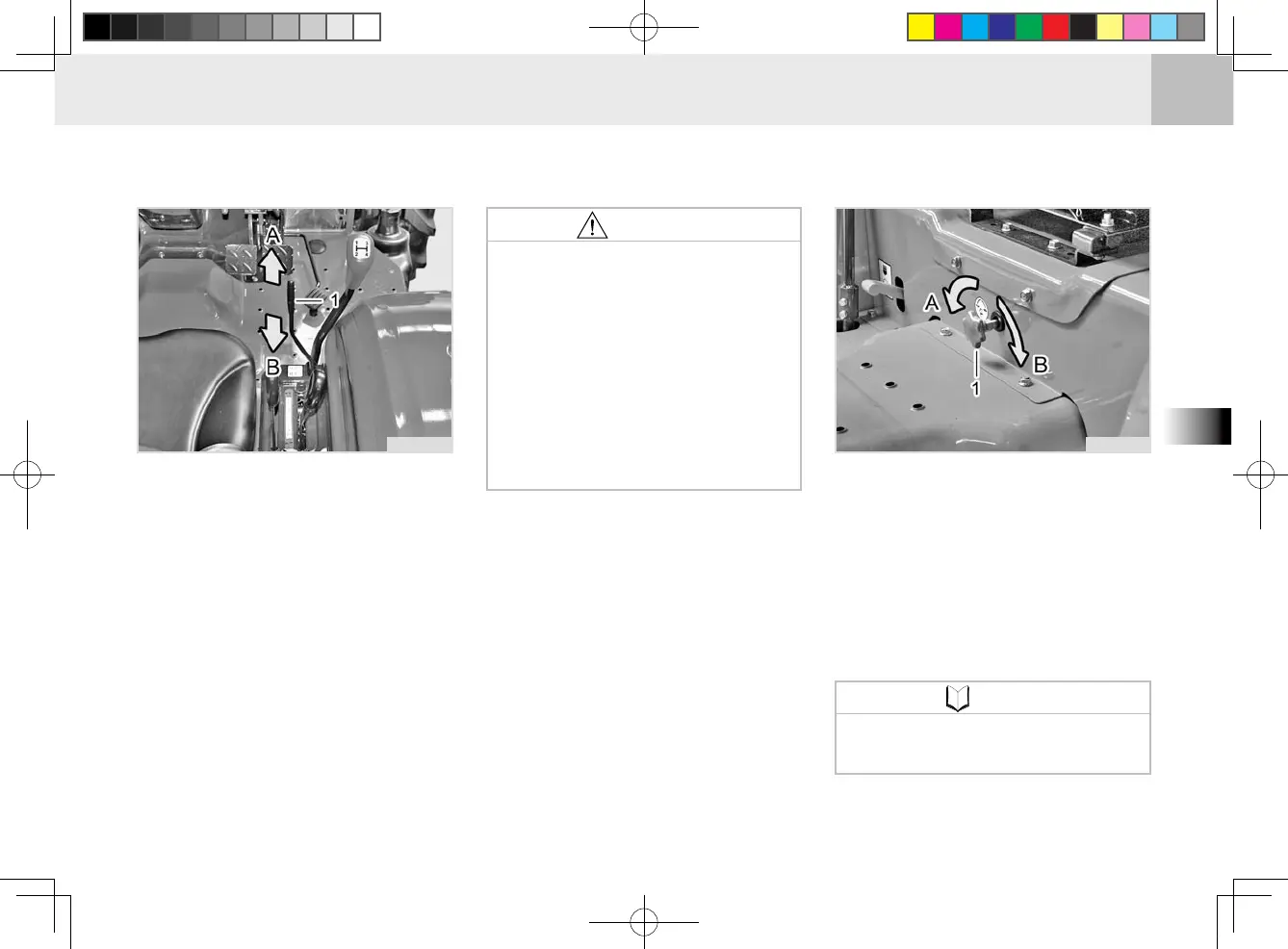

ONE-TOUCH LIFTING/LOWERING LEVER (IF APPLICABLE)
This lever is designed to ensure con-
venience of an operator during work.
When it needs to lift a rear imple-
ment while working after setting its
position as desired with the position
control lever, pull this lever to the lif-
ting (b) position to lift the implement
to the upper limit position. Pushing
it to the lowering (a) position lowers
the implement to the preset lower
limit position. Therefore, there is no
need to reset the height of the imple-
ment with the position control lever.
td2O460A td2O455A
Turning the knob counterclockwise
increases the lowering speed whi-
le turning it clockwise decreases
the lowering speed. Also, turning it
clockwise to its end can x the imple-
ment to a certain position.
(1) Lowering Speed Control Knob
(A) High Speed (B) Low Speed
LIFTING ARM (LOWER LINK)
SPEED CONTROL KNOB
NOTE
This knob does not control the
lifting speed of the lift arm.
•
CAUTION
After stopping the engine,
make sure that the one-touch
lever is set in the lowering
position. Otherwise, an acci-
dent may occur to a person
working behind the tractor.
If it is inevitable to set the le
-
ver in the Lifting position, fix
the lever with the position lock
bolt.
•
•
